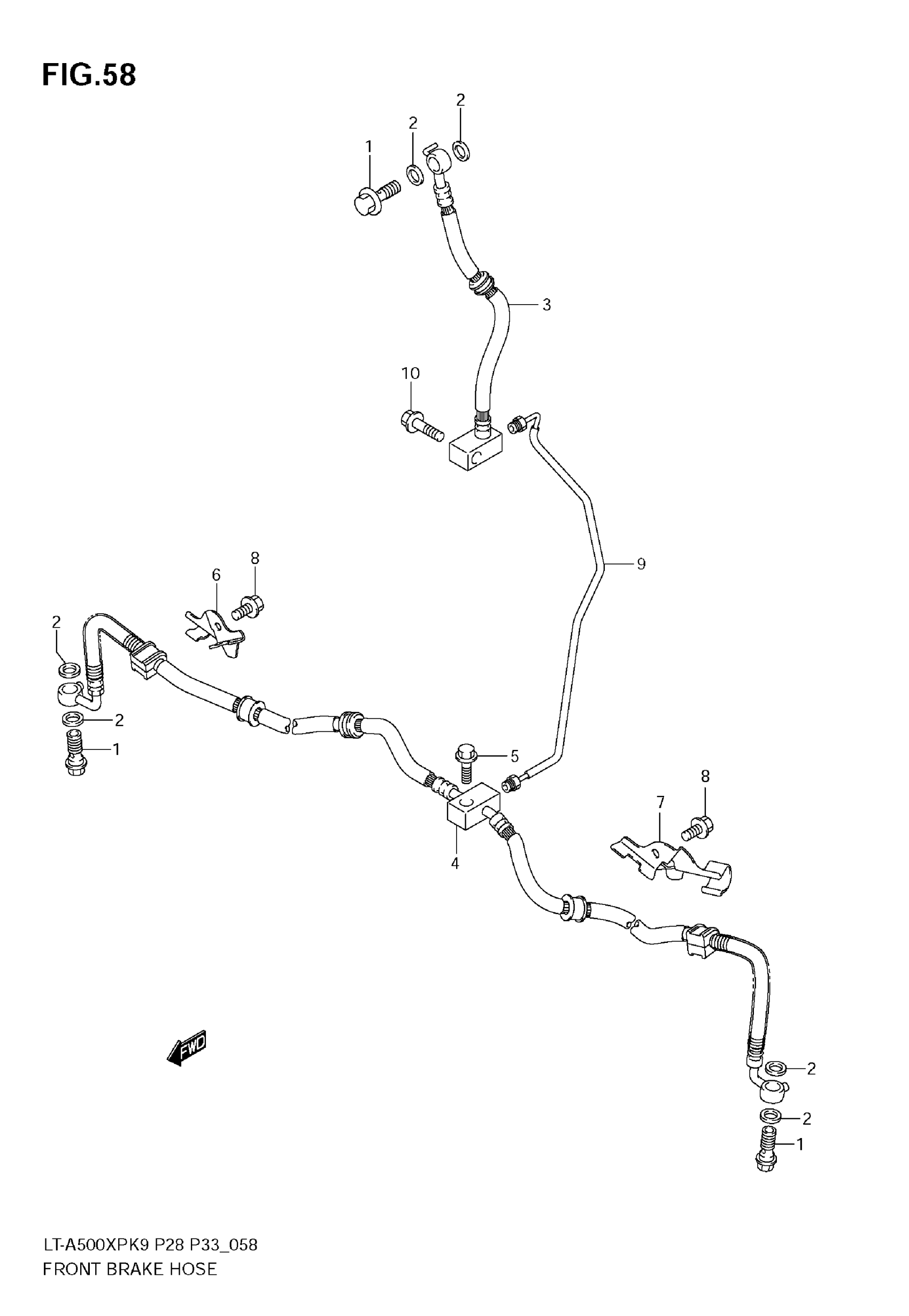

Suzuki LT-A500XP (2009) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT, UNION

09360-10062

$5.81

2

WASHER (10X15X1.5)

09161-10009

$1.83

3

HOSE, FRONT BRAKE NO.1 This part replaces 59480-31G30.

59480-31G31

$98.17

4

HOSE, FRONT BRAKE NO.2 This part replaces 59240-31G30.

59240-31G31

$256.03

5

BOLT, FR BRAKE HOSE NO.2

01550-0625A

$1.97

6

CLAMP, HOSE NO.2 RH

59261-31G00

Unavailable

7

CLAMP, HOSE NO.2 LH

59271-31G00

$11.93

8

BOLT

01550-0616A

$1.97

9

PIPE, FR BRAKE

59250-31G10

Unavailable

10

BOLT, FR BRAKE HOSE NO.1

01550-0630A

$2.31
