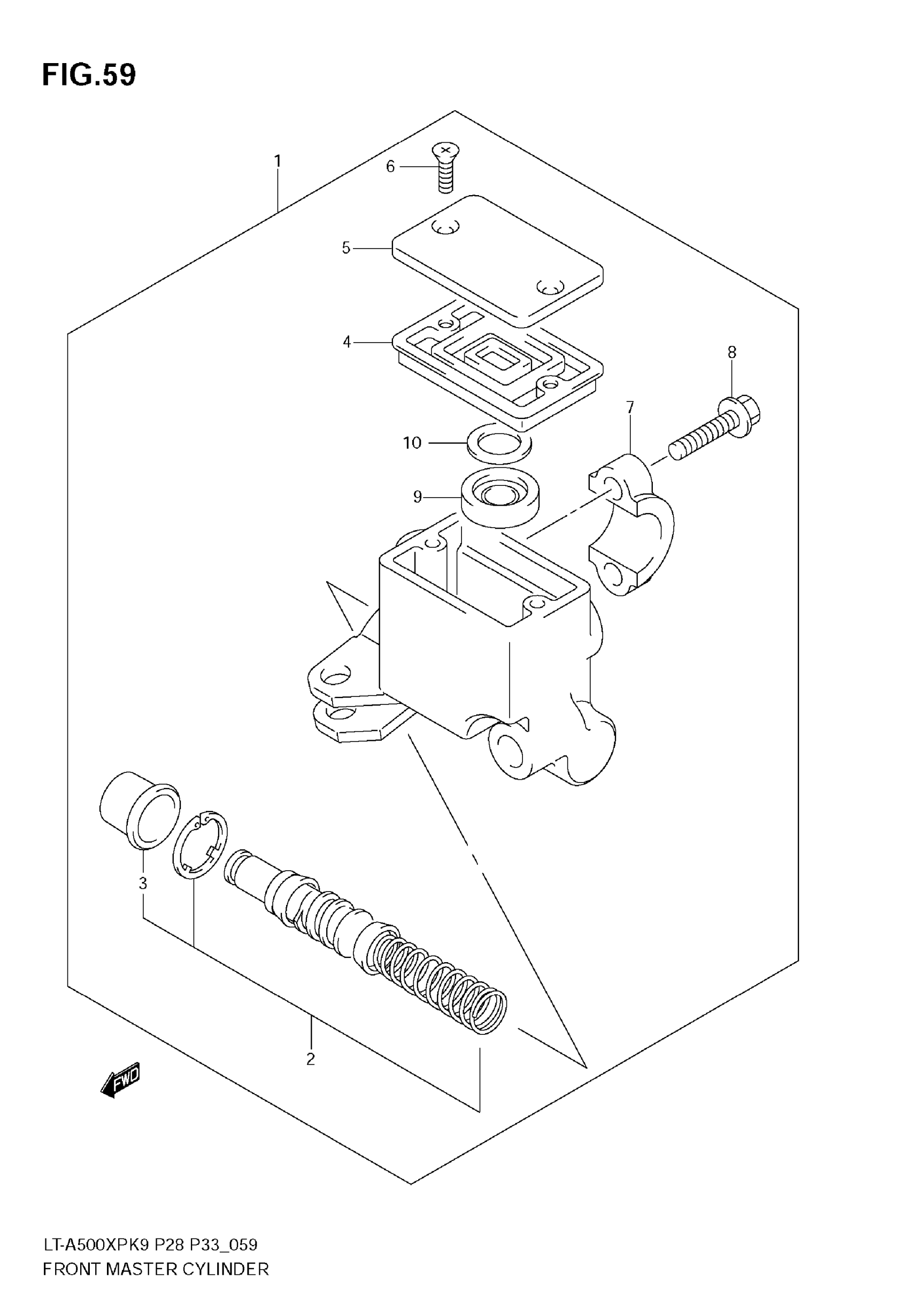

Suzuki LT-A500XP (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-31D01

$243.95

2

PISTON/CUP SET

59600-04810

$43.23

3

BOOT

59666-44300

$5.54

4

DIAPHRAGM

59667-44B00

$9.36

5

CAP

69669-24A01

$14.87

6

SCREW, CAP

69689-49300

$1.81

7

.HOLDER

59671-36500

$12.01

8

BOLT

59675-02FA0

$3.66

9

SEPARATOR

59748-15400

$9.22

10

PLATE

59749-15400

$2.80
