2009 Suzuki LT-A500XP Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2009 Suzuki LT-A500XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

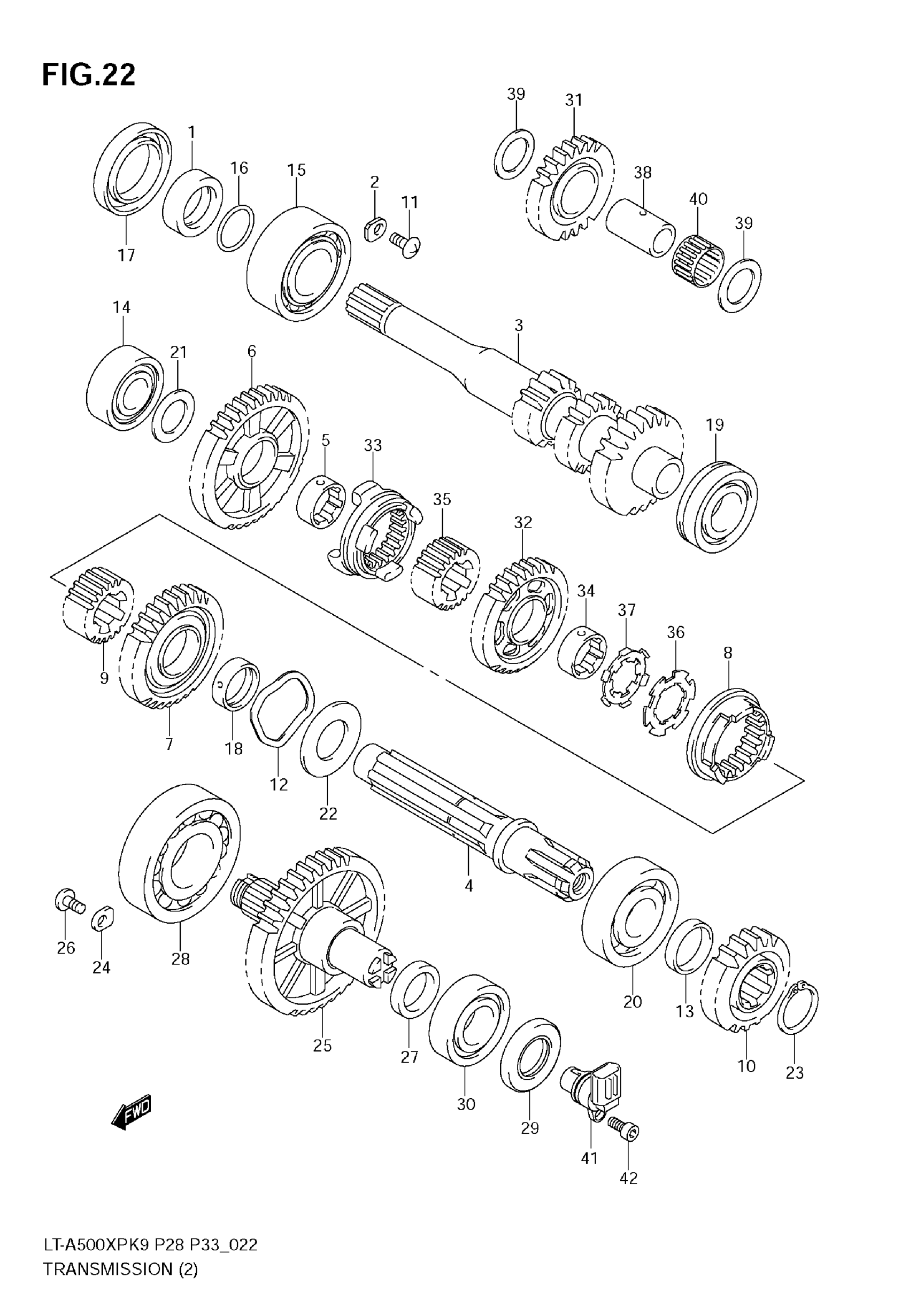

2009 Suzuki LT-A500XP Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER, DRIVE SHAFT

21102-31G00

1
Out of stock

2

RETAINER, DRIVE SHAFT, R

24741-21A00

2
Out of stock

3

SHAFT, DRIVE (NT:25/16/16)

29111-11H01

1
Out of stock

4

SHAFT, SUB T/M COUNTER

29131-31G00

1
Out of stock

5

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

1
Out of stock

6

GEAR, SUB T/M DRIVEN LOW | NT:41

29311-31G00

1
Out of stock

7

GEAR, SUB T/M DRIVEN HIGH | NT:31

29321-31G00

1
Out of stock

8

DOG, GEAR SHIFT HIGH This part replaces 29331-31G00.

29331-31G10

1
Out of stock

9

SPACER, SUB T/M SELECT

29332-31G00

1
Out of stock

10

GEAR, SUB T/M DRIVE NO.2 | NT:18

29411-31H00

1
Out of stock

11

SCREW, RTNR DRIVE SHAFT, R | 6X12

09125-06110

2
Out of stock

12

WASHER, SUB T/M DRIVEN

09164-34001

1
Out of stock

13

SPACER, SUB T/M DRIVE GEAR | 25X30X7

09180-25097

1
Out of stock

14

BEARING, SUB T/M COUNTER, R | 20X47X14

09262-20139

1
Out of stock

15

BEARING, DRIVE SHAFT, R | 25X62X17

09262-25153

1
Out of stock

16

.O-RING (D:2.4,ID:24.7) | D:2.4,ID:24.7

09280-25004

1
Out of stock

17

SEAL, DRIVE SHAFT SPACE | 38X56X7.0

09283-38025

1
Out of stock

18

BUSH, SUB T/M DRIVEN GEAR

24252-19F00

1
Out of stock

19

BEARING, DRIVE SHAFT, L | 25X52X15

09262-25142

1
Out of stock

20

BEARING, SUB T/M COUNTER, L

09262-25073

1
Out of stock

21

WASHER, SUB T/M DRIVEN, R

08211-20363

1
Out of stock

22

1

$4.23

In stock

23

CIRCLIP, SUB T/M GEAR

08331-3125A

—
Out of stock

24

RETAINER, SEC DRIVE SHAFT

24741-21A00

2
Out of stock

25

SHAFT, SUB T/M OUTPUT

29120-31H00

1
Out of stock

26

SCREW, RETAINER (6X12)

09125-06110

2
Out of stock

27

SPACER, SUB T/M OUTPUT | 25X34X5.5

09180-25083

1
Out of stock

28

BEARING, SUB T/M OUTPUT, R | 30X72X19

09262-30077

1
Out of stock

29

SEAL,OIL (25X45X5) | 25X45X5

09283-25076

1
Out of stock

30

BEARING, SUB T/M OUTPUT, L | 25X52X15

09262-25003

1
Out of stock

31

GEAR, REVERSE IDLE (NT:23)

24561-31G20

1
Out of stock

32

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

1
Out of stock

33

DOG, SUB T/M SELECT SL

24581-31G00

1
Out of stock

34

BUSH, REVERSE DRIVEN GEAR

29215-07G00

1
Out of stock

35

SPACER, REVERSE SELECT

29332-31G00

1
Out of stock

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

37

WASHER, LOCK

09169-25001

1
Out of stock

38

SHAFT, REVERSE IDLE

24551-31G00

1
Out of stock

39

WASHER, REVERSE IDLE GEAR | 20X30X1.0

09181-20195

2
Out of stock

40

BEARING, REVERSE IDLE GEAR | 20X47X14

09263-20060

1
Out of stock

41

SENSOR, SPEED This part replaces 34990-31G00.

34990-31G01

1
Out of stock

42

BOLT, SENSOR

07130-0616B

1
Out of stock
