2012 Suzuki LT-A500XLS2 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

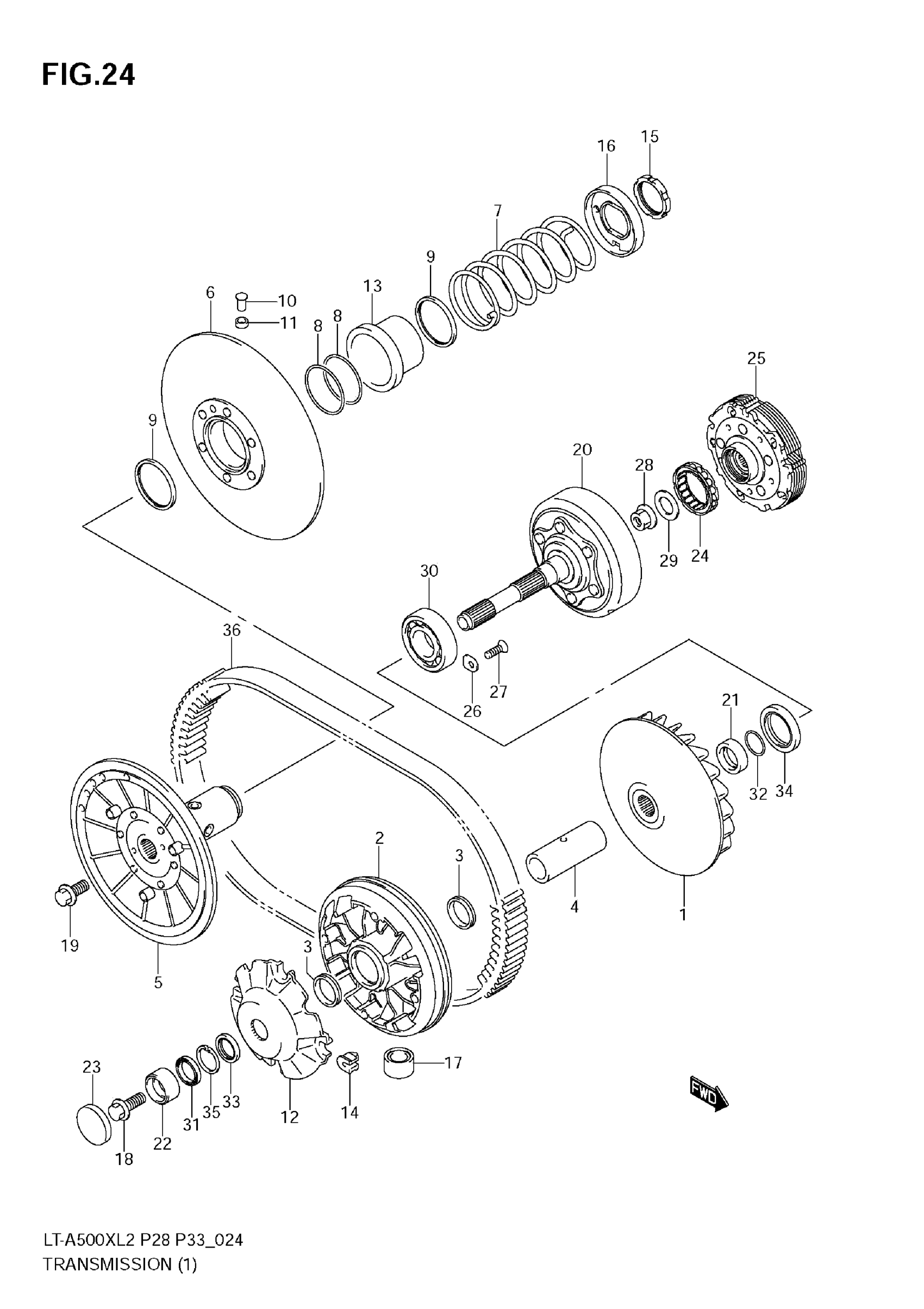

2012 Suzuki LT-A500XLS2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FACE, FIXED DRIVE

21110-11H00

1
Out of stock

2

FACE, MOVABLE DRIVE

21120-11H00

1
Out of stock

3

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

2
Out of stock

4

SPACER, MOVABLE DRIVE

21125-11H50

1
Out of stock

5

FACE, FIXED DRIVEN

21210-11H00

1
Out of stock

6

FACE, MOVABLE DRIVEN

21240-11H10

1
Out of stock

7

SPRING, MOVABLE DRIVEN

21243-38F10

1
Out of stock

8

O-RING,MOVABLE DRIVEN

21245-38F00

2
Out of stock

9

SEAL,MOVABLE DRIVEN OIL

21247-38F00

2
Out of stock

10

PIN,MOVABLE DRIVEN

21248-15F01

4
Out of stock

11

SPACER,MOVABLE DRIVEN PIN

21249-15F00

4
Out of stock

12

PLATE, MOVABLE DRIVE

21431-11H00

1
Out of stock

13

SHEET, MOVABLE DRIVEN

21471-38F10

1
Out of stock

14

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

4
Out of stock

15

NUT,DRIVEN PULLEY SPRING

21518-38F00

1
Out of stock

16

HOLDER, MOVABLE DRIVEN SPRING

21519-38F10

1
Out of stock

17

ROLLER, MOVABLE DRIVEN

21650-09F51

8
Out of stock

18

BOLT (12X30)

09103-12028

1
Out of stock

19

BOLT (12X25)

09103-12049

1
Out of stock

20

HOUSING, CLUTCH

21100-11H00

1
Out of stock

21

SPACER, PRIMARY SHAFT

21102-31G00

1
Out of stock

22

SPACER, CLUTCH HOUSING BRG FR

21106-31G10

1
Out of stock

23

CAP, V-BELT BEARING

21107-31G00

1
Out of stock

24

CLUTCH,PRI DRIVE ONE WAY

21273-44D00

1
Out of stock

25

CLUTCH ASSY, SHOE

21500-11H10

1
Out of stock

26

RETAINER

24741-20A00

2
Out of stock

27

SCREW (6X12)

09126-06011

2
Out of stock

28

NUT

09159-18023

1
Out of stock

29

WASHER

09164-18004

1
Out of stock

30

BEARING (25X62X17)

09262-25073

1
Out of stock

31

BEARING (35X47X7)

09262-35075

1
Out of stock

32

.O-RING (D:2.4,ID:24.7)

09280-25004

1
Out of stock

33

OIL SEAL (35X47X5)

09283-35051

1
Out of stock

34

OIL SEAL (38X56X7)

09283-38025

1
Out of stock

35

CIRCLIP

08331-41479

1
Out of stock

36

V-BELT, DRIVE

27601-11H00

1
Out of stock
