2012 Suzuki LT-A500XLS2 Front Drive Shaft Diagram

← All diagrams

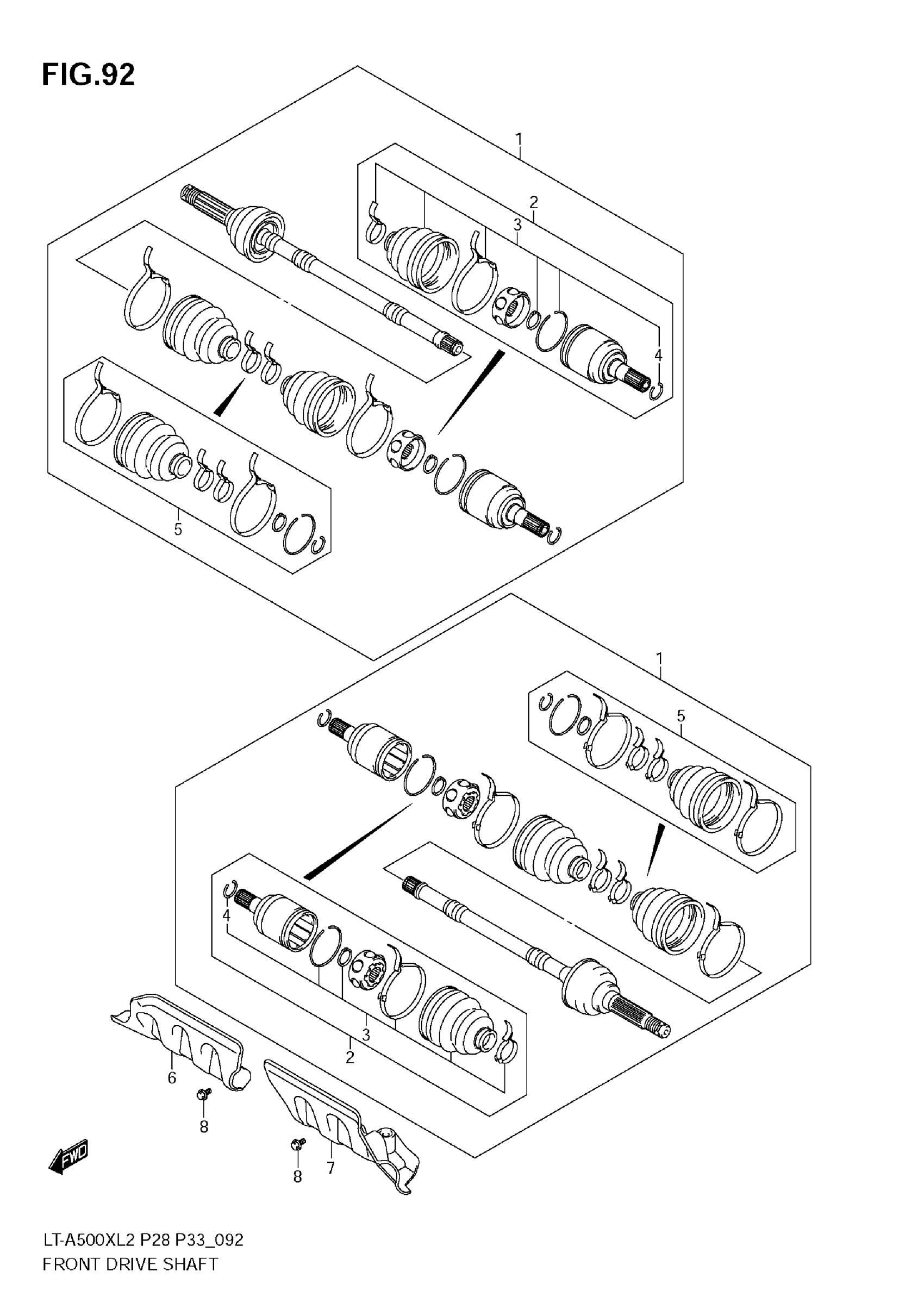

Find the part on the Front Drive Shaft diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A500XLS2 Front Drive Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT ASSY, FRONT DRIVE This part replaces 54901-31G40.

54901-31G41

2
Out of stock

2

.JOINT SET This part replaces 54933-31G12.

54933-31G13

2
Out of stock

3

..BOOT SET, INNER This part replaces 54931-31G12.

54931-31G13

2
Out of stock

4

CIRCLIP

54925-19B01

2
Out of stock

5

.BOOT SET, OUTER This part replaces 54930-31G13.

54930-31G14

2
Out of stock

6

PROTECTOR,FR DRIVE SHAFT,R This part replaces 54903-31G00.

54903-31G01

1
Out of stock

7

PROTECTOR,FR DRIVE SHAFT,L This part replaces 54904-31G00.

54904-31G01

1
Out of stock

8

BOLT (6X12)

09111-06085

4
Out of stock
