2012 Suzuki LT-A500XLS2 Final Bevel Gear Diagram

← All diagrams

Find the part on the Final Bevel Gear diagram for your 2012 Suzuki LT-A500XLS2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

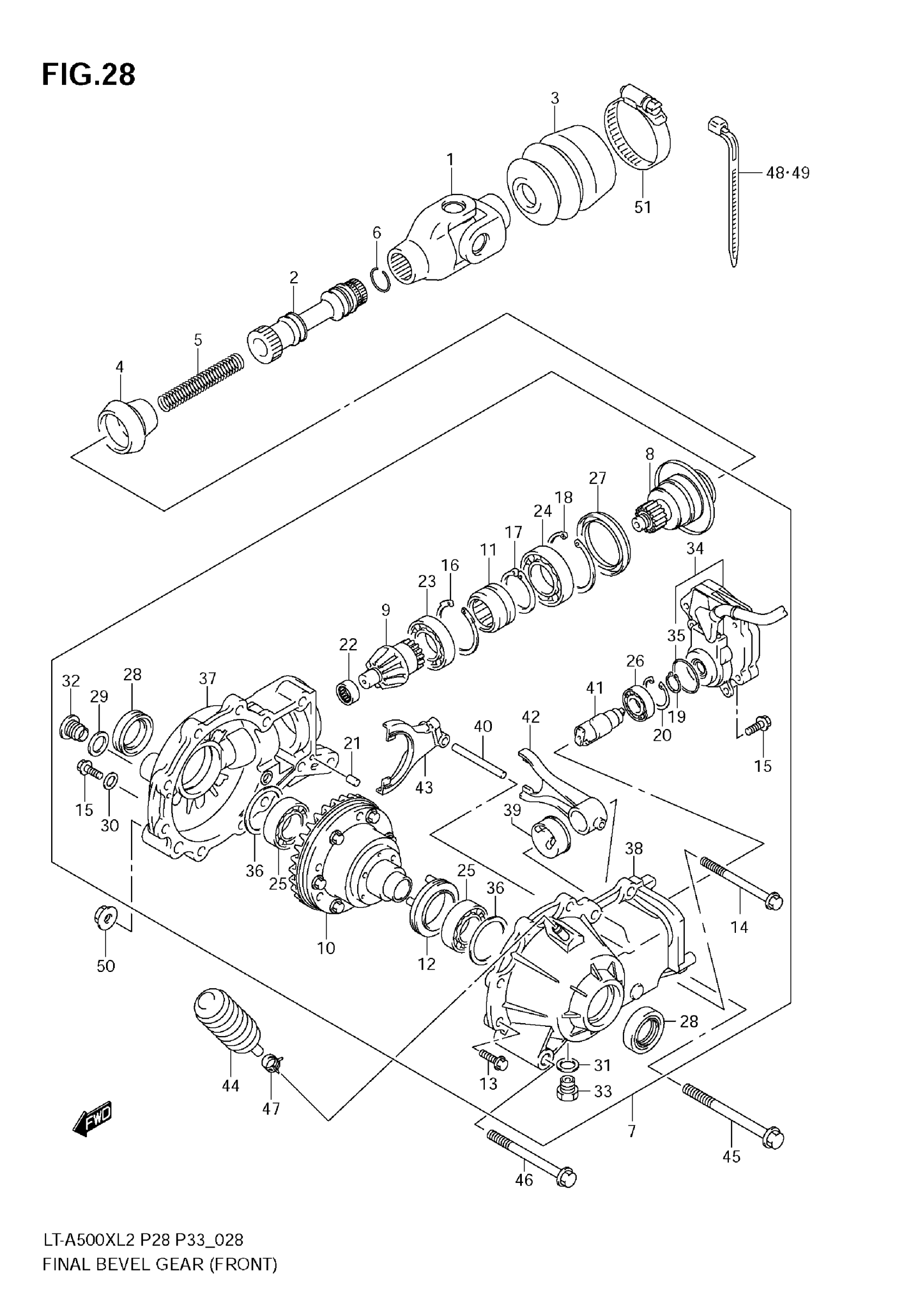

2012 Suzuki LT-A500XLS2 Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

YOKE, FR PROPELLER SHAFT

27100-31G00

1
Out of stock

2

SHAFT, PROPELLER

27151-31G30

1
Out of stock

3

BOOT, FRONT PROP SHAFT YOKE This part replaces 27153-31G21.

27153-31G22

1
Out of stock

4

BOOT,FR PROP SHAFT This part replaces 27153-31G30.

27153-31G32

1
Out of stock

5

SPRING, FR PROPELLER

27191-31G00

1
Out of stock

6

CIRCLIP

09381-20004

1
Out of stock

7

CASE ASSY, FR DIFFERENTIAL This part replaces 27400-31H00.

27400-31H03

1
Out of stock

8

SHAFT ASSY, INPUT

27130-31HA0

1
Out of stock

9

PINION, DRIVE

27311-31HA0

1
Out of stock

10

GEAR RING ASSY

27320-31HA0

1
Out of stock

11

SLEEVE

27371-31HA0

1
Out of stock

12

SLEEVE DIFF LOCK

27381-31HA0

1
Out of stock

13

FLANGE BOLT, HEX HEAD

27401-31HA0

9
Out of stock

14

FLANGE BOLT, HEX HEAD

27401-31HB0

1
Out of stock

15

FLANGE BOLT, HEX HEAD

27401-31HC0

3
Out of stock

16

SNAP RING

27403-31HA0

1
Out of stock

17

SNAP RING

27403-31HB0

1
Out of stock

18

SNAP RING

27403-31HC0

1
Out of stock

19

RING SNAP

27403-31HD0

1
Out of stock

20

RING SNAP

27403-31HE0

1
Out of stock

21

PIN

27404-31HA0

2
Out of stock

22

BEARING, PINION

27405-31HA0

1
Out of stock

23

BEARING

27405-31HB0

1
Out of stock

24

BEARING

27405-31HC0

1
Out of stock

25

BEARING

27405-31HD0

2
Out of stock

26

BEARING

27405-31HE0

1
Out of stock

27

OIL SEAL

27406-31HA0

1
Out of stock

28

OIL SEAL

27406-31HB0

1
Out of stock

29

WASHER

27407-31HA0

1
Out of stock

30

WASHER

27407-31HB0

1
Out of stock

31

WASHER

27407-31HC0

1
Out of stock

32

PLUG

27409-31HA0

1
Out of stock

33

PLUG

27409-31HB0

1
Out of stock

34

.CASE, MOTOR This part replaces 27421-31HA0.

27421-31HA2

1
Out of stock

35

O RING

27406-31HC0

1
Out of stock

36

SHIM SET

27445-31HA0

2
Out of stock

37

CASE, FR DIFFERENTIAL

27451-31HA0

1
Out of stock

38

COVER, BUSH, FR DIFFERENTIAL

27460-31HA0

1
Out of stock

39

CAM DIFFLOCK

27911-31HA0

1
Out of stock

40

SHAFT, DIFFLOCK FORK

27913-31HA0

1
Out of stock

41

SHAFT, SCREW

27921-31HA0

1
Out of stock

42

FORK, FRONT DIFFERENTIAL

27940-31HA0

1
Out of stock

43

FORK, DIFFLOCK

27950-31HA0

1
Out of stock

44

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

45

BOLT (10X90)

09103-10061

1
Out of stock

46

BOLT (10X110)

09103-10148

1
Out of stock

47

CLIP

09401-08411

1
Out of stock

48

CLAMP (L:125)

09407-14403

1
Out of stock

49

CLAMP (L:125)

09407-14403

1
Out of stock

50

NUT

09159-10115

2
Out of stock

51

CLAMP

09402-80501

1
Out of stock
