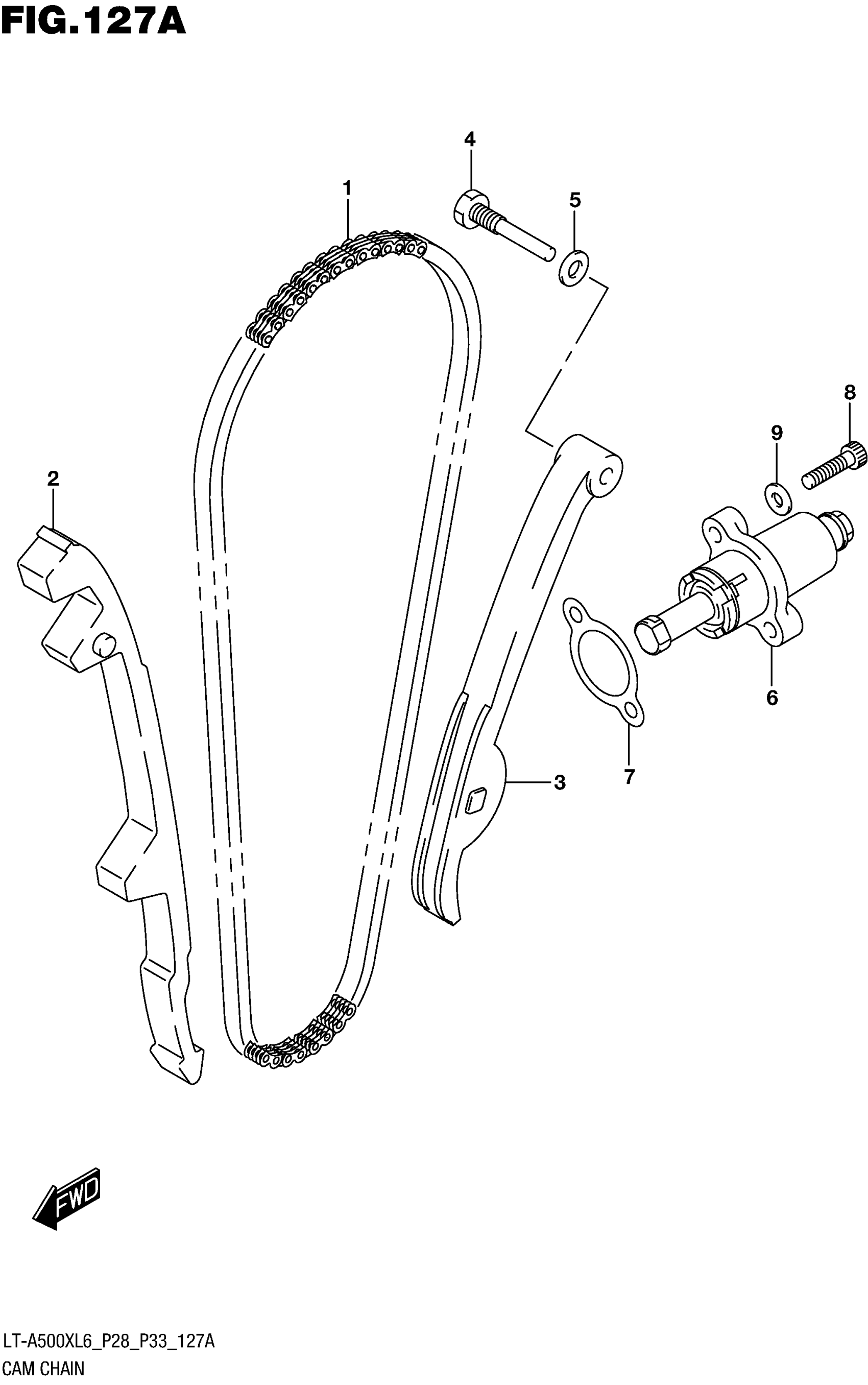

Suzuki LT-A500XL6 (2016) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-09F00

$193.98

1

(92RH2015-124MPX)

12760-09F00

$193.98

2

GUIDE, CAM CHAIN

12771-11H00

$47.05

3

TENSIONER, CAM CHAIN This part replaces 12811-09F00.

12811-09F01

$76.43

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1)

09168-08016

$1.70

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$111.41

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.11

8

BOLT (6X25)

07130-0625A

$2.74

9

GASKET (5.8X13X1.2)

09168-06023

$2.09
