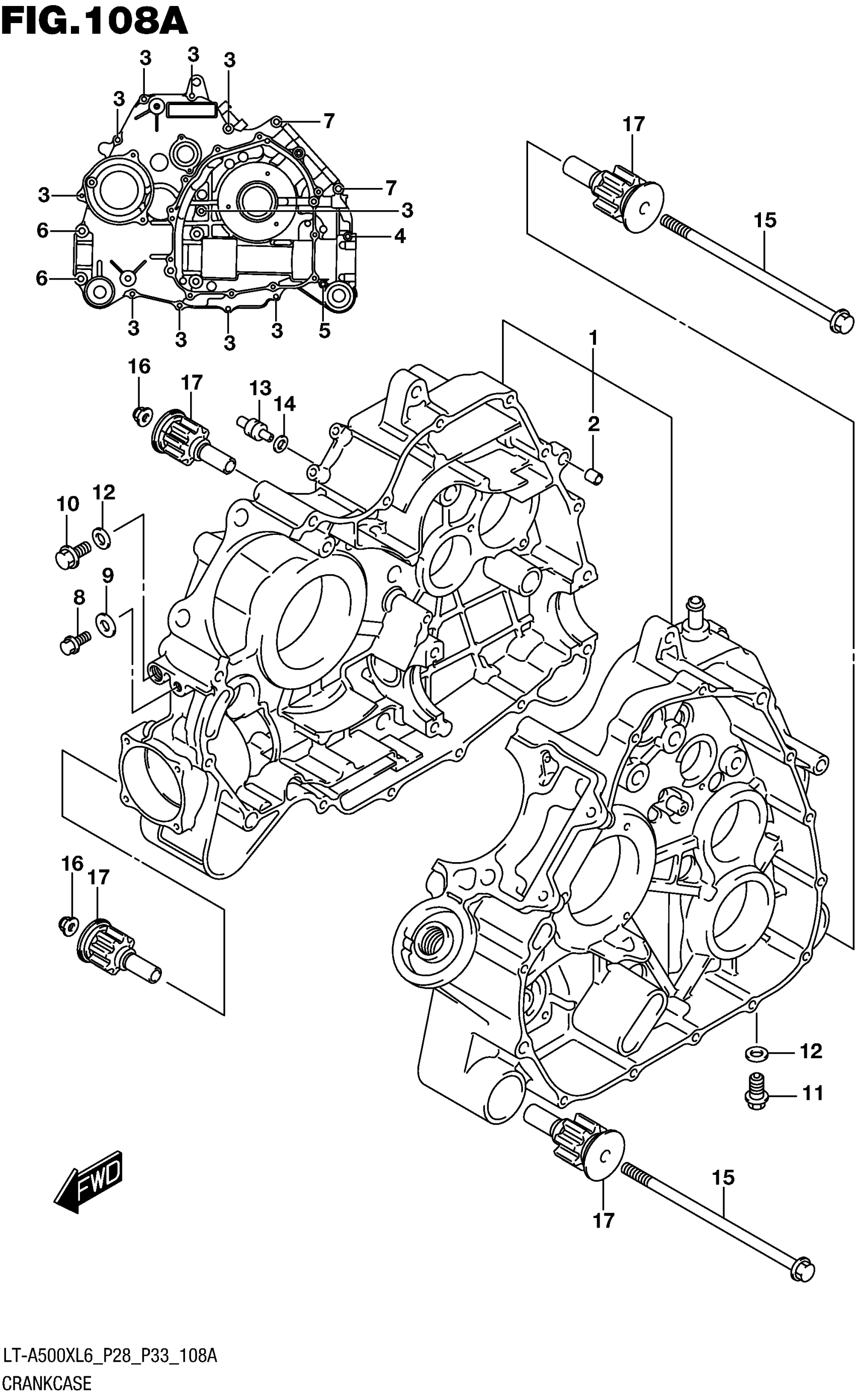

Suzuki LT-A500XL6 (2016) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11301-11870.

11301-11871

$1,827.50

2

.PIN

04211-11169

$1.82

3

BOLT

01547-0650A

$2.51

4

.BOLT

01547-0680A

$3.58

5

.BOLT

01547-0690A

$2.95

6

.BOLT

01550-0850A

$3.98

7

BOLT

01550-0875A

$3.37

8

BOLT (8X12)

01550-0812A

$2.38

9

GASKET (8.2X14X1)

09168-08016

$1.70

10

PLUG (12X10)

09247-12006

$2.80

11

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

$2.80

12

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

13

JET,T/M OIL GALLERY

09493-20014

$18.33

14

O RING (D:1.2,ID:4)

09280-04004

$1.76

15

BOLT (10X195)

09103-10118

$11.91

16

NUT

09159-10115

$3.31

17

BUSH, ENG MTG

11651-31G10

$21.60
