2004 Suzuki LT-A500FB Headlamp Housing Diagram

← All diagrams

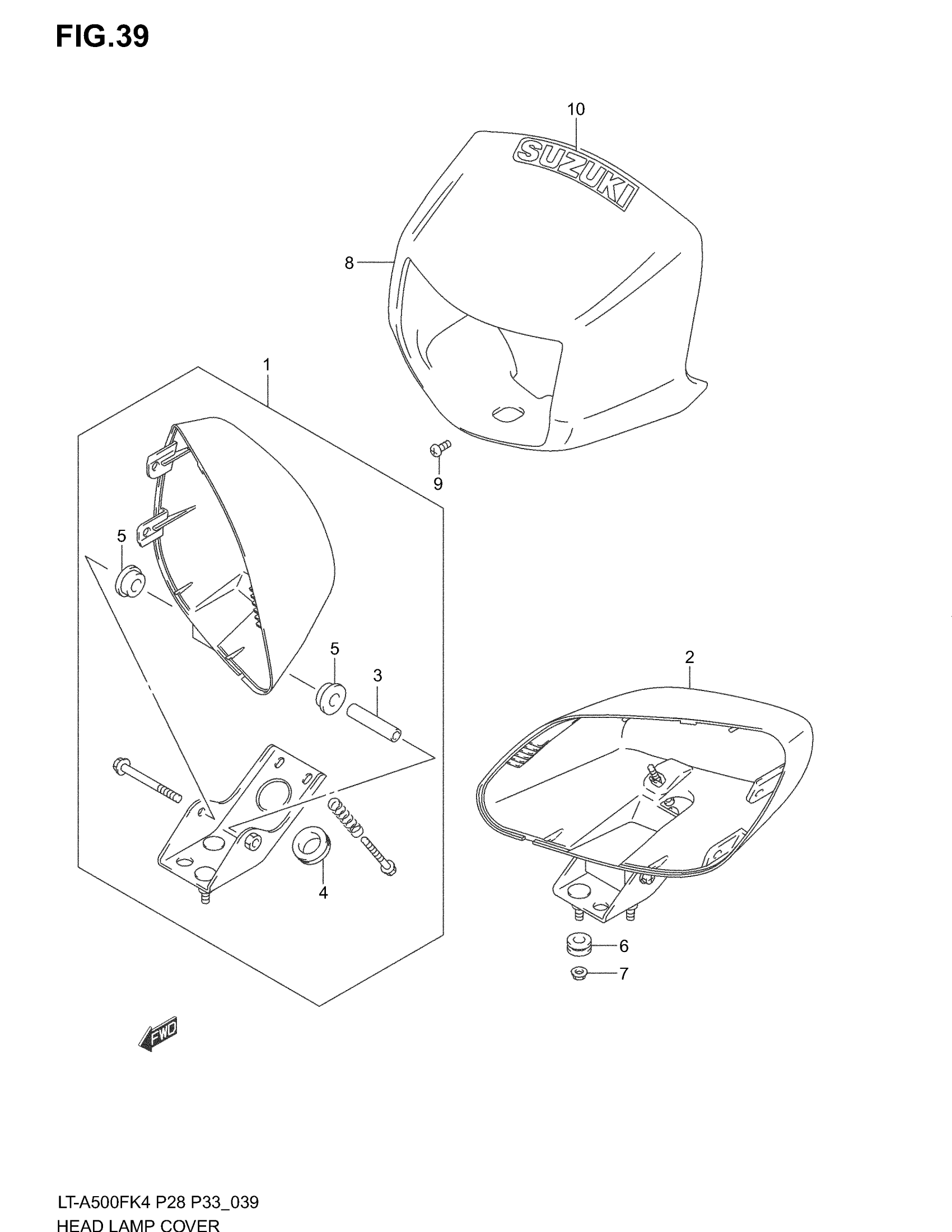

Find the part on the Headlamp Housing diagram for your 2004 Suzuki LT-A500FB, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki LT-A500FB Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP RH

51800-03G50

1
Out of stock

2

HOUSING, HEADLAMP LH | Includes Item(s) 3 - 5

51800-03G60

1
Out of stock

3

SPACER

09180-06281

4
Out of stock

4

CUSHION

09320-09013

4
Out of stock

5

CUSHION, BRACKET

09320-20008

2
Out of stock

6

CUSHION

09320-10501

4
Out of stock

7

NUT This part replaces 08319-31063.

08319-3106A

4
Out of stock

8

COVER, HANDLE FRONT (YELLOW)

56311-03G00-YU1

1
Out of stock

8

COVER, HANDLE FRONT (GREEN)

56311-03G00-YT8

1
Out of stock

8

COVER, HANDLE FRONT (RED)

56311-03G00-YT9

1
Out of stock

8

COVER, HANDLE FRONT (BLACK) This part replaces 56311-03G00-YFR.

56311-03G00-YLZ

1
Out of stock

8

COVER, HANDLE FRONT

56311-03GC0-YDH

1
Out of stock

9

2

$1.55

In stock

10

EMBLEM,SUZUKI | FOR YT9,YT8,YU1 This part replaces 68171-03G20-20H.

68171-03G21-20H

1
Out of stock

10

EMBLEM | FOR YFR

68171-03G00-AMB

1
Out of stock

10

EMBLEM (SILVER) | FOR YDH

68171-03GA0-20H

1
Out of stock
