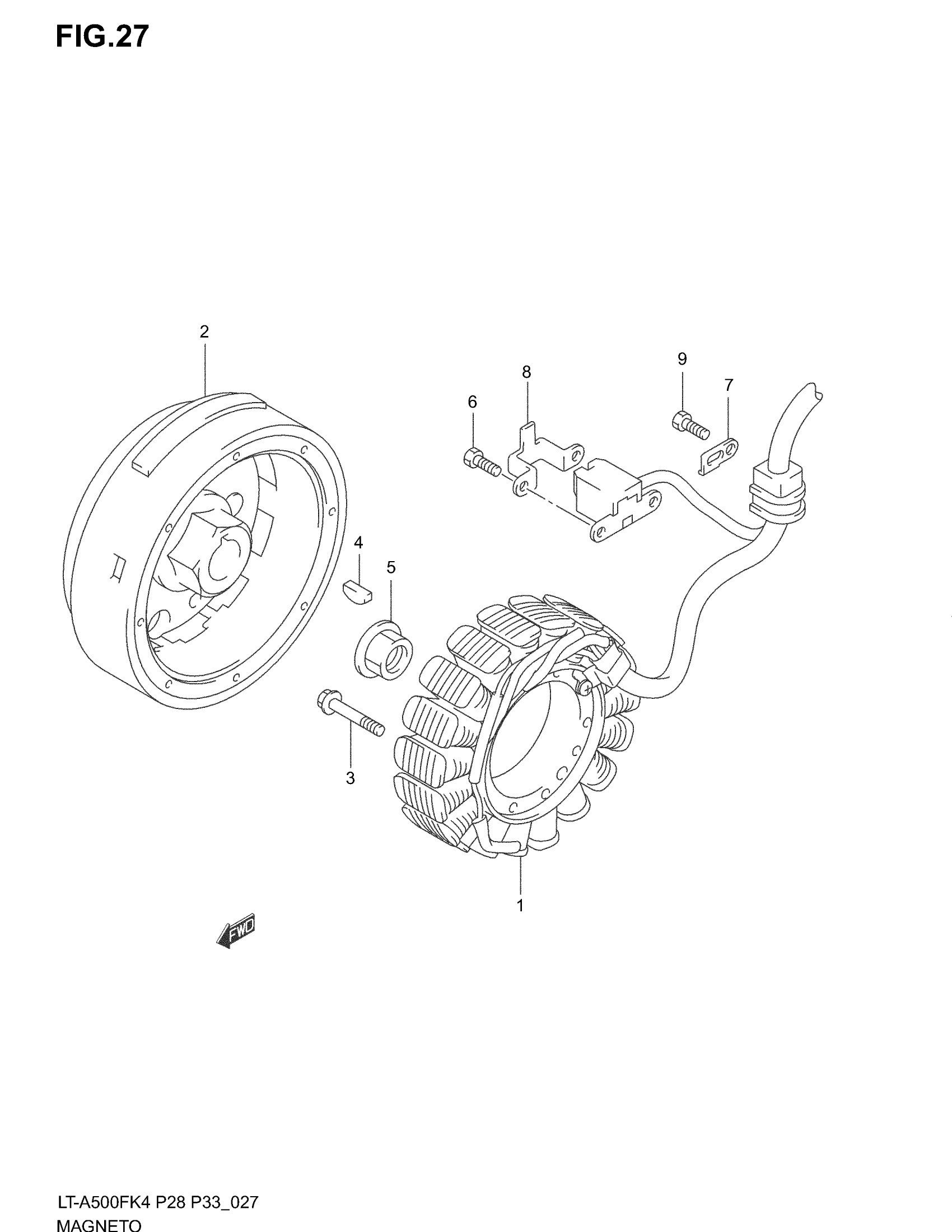

Suzuki LT-A500FB (2004) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-09F40.

32101-09F30

$903.45

2

ROTOR ASSY

32102-09F10

Unavailable

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

KEY, MAGNETO

08341-31059

$2.50

5

NUT, MAGNETO

31792-18A00

$13.40

6

BOLT, SENSOR (5X10)

09100-05019

$2.10

7

CLAMP, MAGNETO NO.1

31497-45000

$2.17

8

CLAMP, MAGNETO NO.2

32371-32E00

$7.12

9

BOLT, CLAMP NO.2 (5X10)

09100-05019

$2.10
