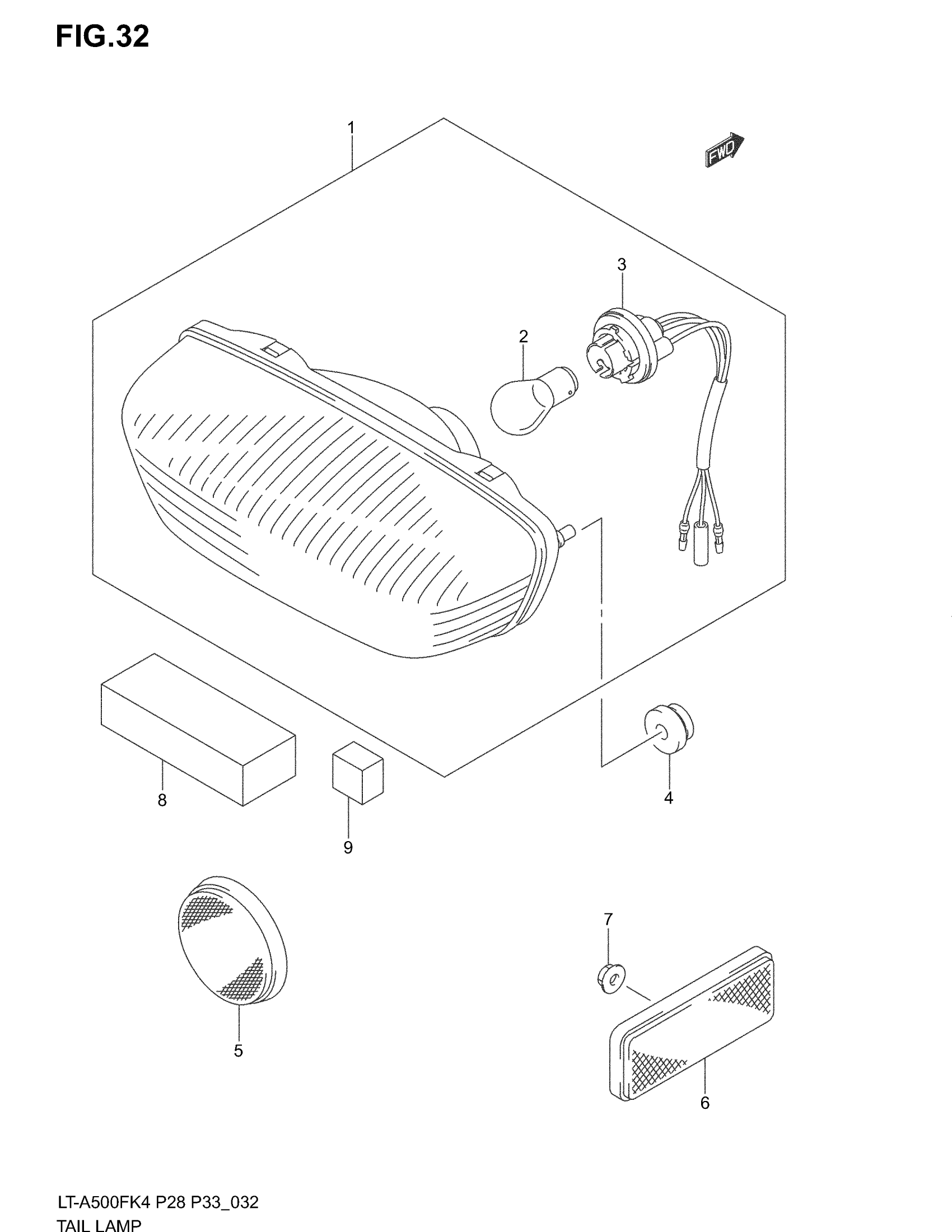

Suzuki LT-A500FB (2004) TAIL LAMP Diagram

#

Description

Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 3

35710-03G20

$57.08

2

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

3

SOCKET & CORD ASSY

35718-03G00

$39.77

4

CUSHION

09320-06023

$2.58

5

REFLECTOR ASSY, REAR SIDE | EP28

35970-14A10

$21.23

6

REFLECTOR ASSY, RR SIDE | E28 This part replaces 35970-07F00.

35970-07F01

$19.11

7

NUT | E28 This part replaces 08316-10053.

08316-1005A

$2.19

8

CUSHION (80X30X20)

33652-03G10

Unavailable

9

CUSHION (17X17X12)

33652-05G20

$2.87
