2003 Suzuki LT-A500F Rear Master Cylinder Diagram

← All diagrams

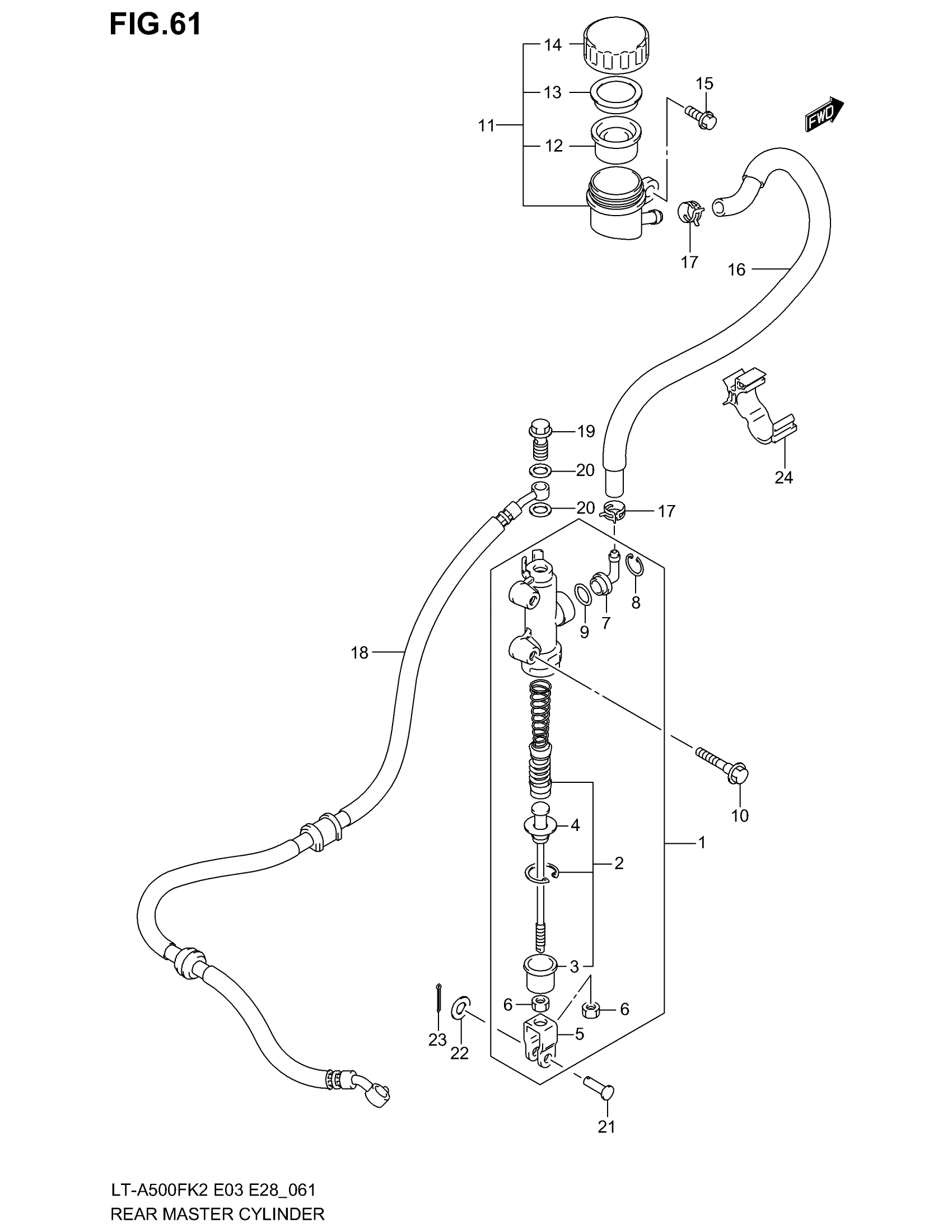

Find the part on the Rear Master Cylinder diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-A500F Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-03G00

1
Out of stock

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

1
Out of stock

3

.BOOT

69691-00A00

1
Out of stock

4

.ROD, PUSH

69670-03G00

1
Out of stock

5

YOKE

69692-19A00

1
Out of stock

6

NUT

69693-05A00

2
Out of stock

7

CONNECTOR

69672-00B20

1
Out of stock

8

CIRCLIP

69674-00B20

1
Out of stock

9

O RING

69686-34200

1
Out of stock

10

BOLT

09103-06144

2
Out of stock

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

1
Out of stock

12

DIAPHRAGM

69667-00B20

1
Out of stock

13

PLATE

69668-00B20

1
Out of stock

14

CAP

69669-03D00

1
Out of stock

15

BOLT This part replaces 01547-06123.

01547-0612B

1
Out of stock

16

HOSE, REAR BRAKE

69730-03G00

1
Out of stock

17

CLIP

09401-12404

2
Out of stock

18

HOSE, REAR BRAKE | MODEL K2 This part replaces 69480-03G00.

69480-03G10

1
Out of stock

18

HOSE, REAR BRAKE | MODEL K3

69480-03G10

1
Out of stock

19

UNION This part replaces 09360-10042.

09360-10062

2
Out of stock

20

WASHER (10X15X1.5)

09161-10009

4
Out of stock

21

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

1
Out of stock

22

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

24

CLAMP

09403-15405

1
Out of stock
