2003 Suzuki LT-A500F Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

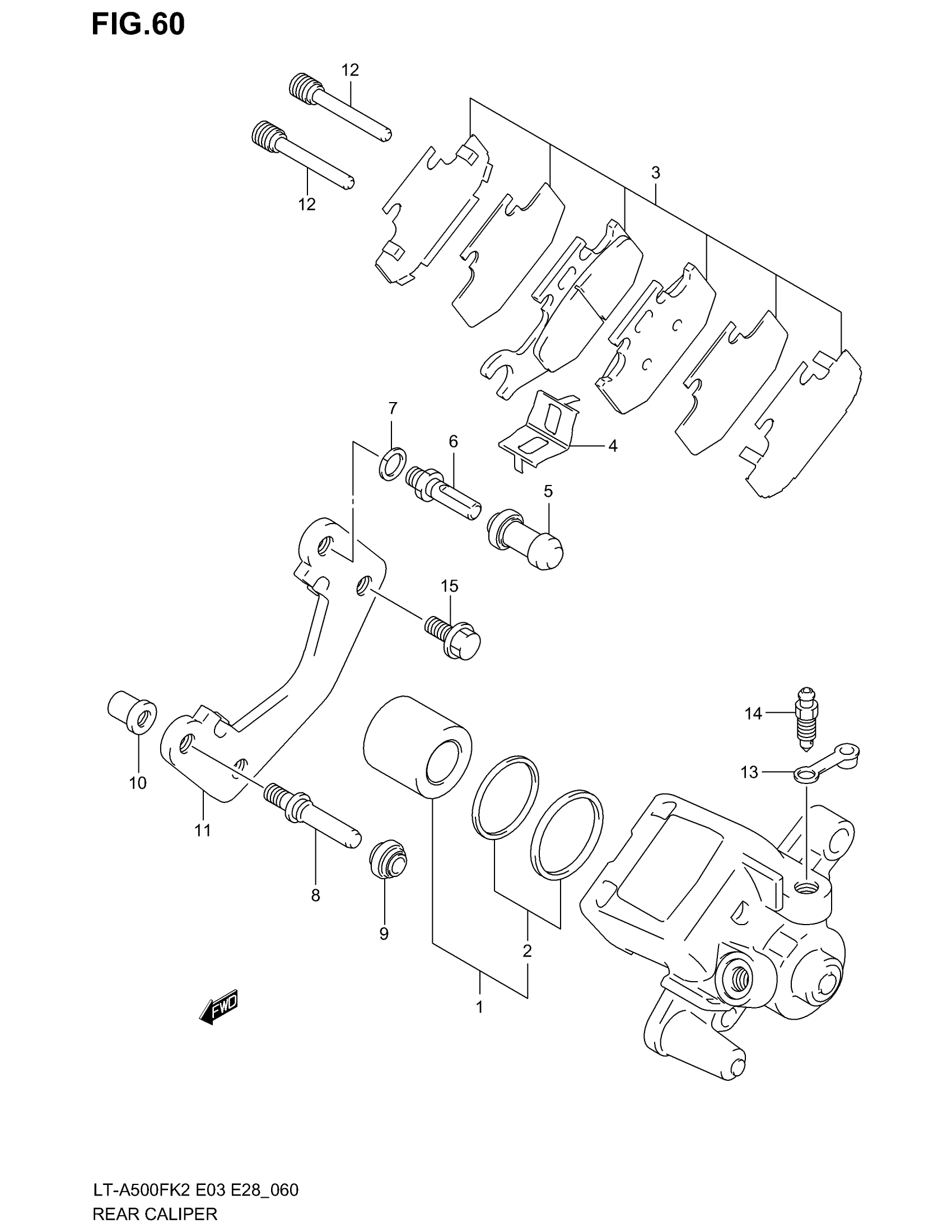

2003 Suzuki LT-A500F Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

$428.03

In stock

1

PISTON SET

69100-03830

1

$41.27

In stock

2

SEAL SET, PISTON

59100-38860

1

$15.55

In stock

3

PAD/SHIM SET

69100-03841

1
Out of stock

4

SPRING, PAD

59315-27C10

1

$13.20

In stock

5

BOOT

59386-13A00

1
Out of stock

6

BOLT

59382-13A00

1
Out of stock

7

WASHER

59314-13A00

1
Out of stock

8

PIN

59387-00B20

1
Out of stock

9

BOOT

59303-14500

1
Out of stock

10

NUT

59388-00B20

1
Out of stock

11

BRACKET

69151-03G00

1
Out of stock

12

PIN

59345-00B20

2

$14.56

In stock

13

BLEEDER

59121-01A00

1
Out of stock

14

CAP, BLEEDER

59122-01A00

1
Out of stock

15

BOLT

09103-08147

2

$4.03

In stock
