2003 Suzuki LT-A500F Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

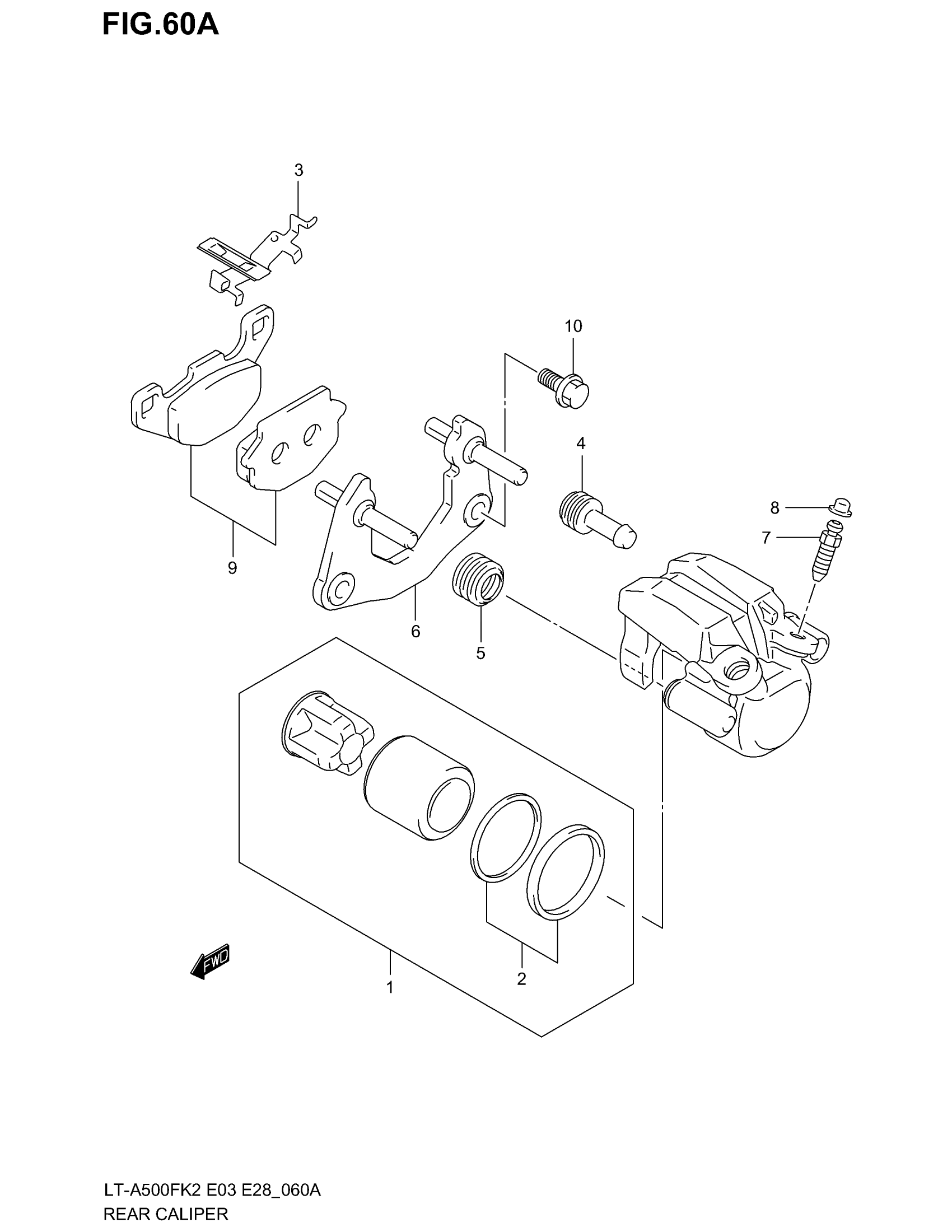

2003 Suzuki LT-A500F Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | Includes Item(s) 1 - 8

69100-03GF0-999

1
Out of stock

1

PISTON SET

59100-01850

1
Out of stock

2

SEAL SET, PISTON

59100-35860

1
Out of stock

3

SPRING, PAD

59315-36500

1
Out of stock

4

.INSULATOR, AXLE

59313-36500

1
Out of stock

5

.BOOT, AXLE

59312-36500

1
Out of stock

6

BRACKET

69150-03GF0

1
Out of stock

7

BLEEDER

59121-18410

1
Out of stock

8

CAP, BLEEDER

55156-66310

1
Out of stock

9

PAD SET This part replaces 69100-03850.

69100-03860

1
Out of stock

10

BOLT

09103-08147

2

$4.03

In stock
