2003 Suzuki LT-A500F Crank Balancer Diagram

← All diagrams

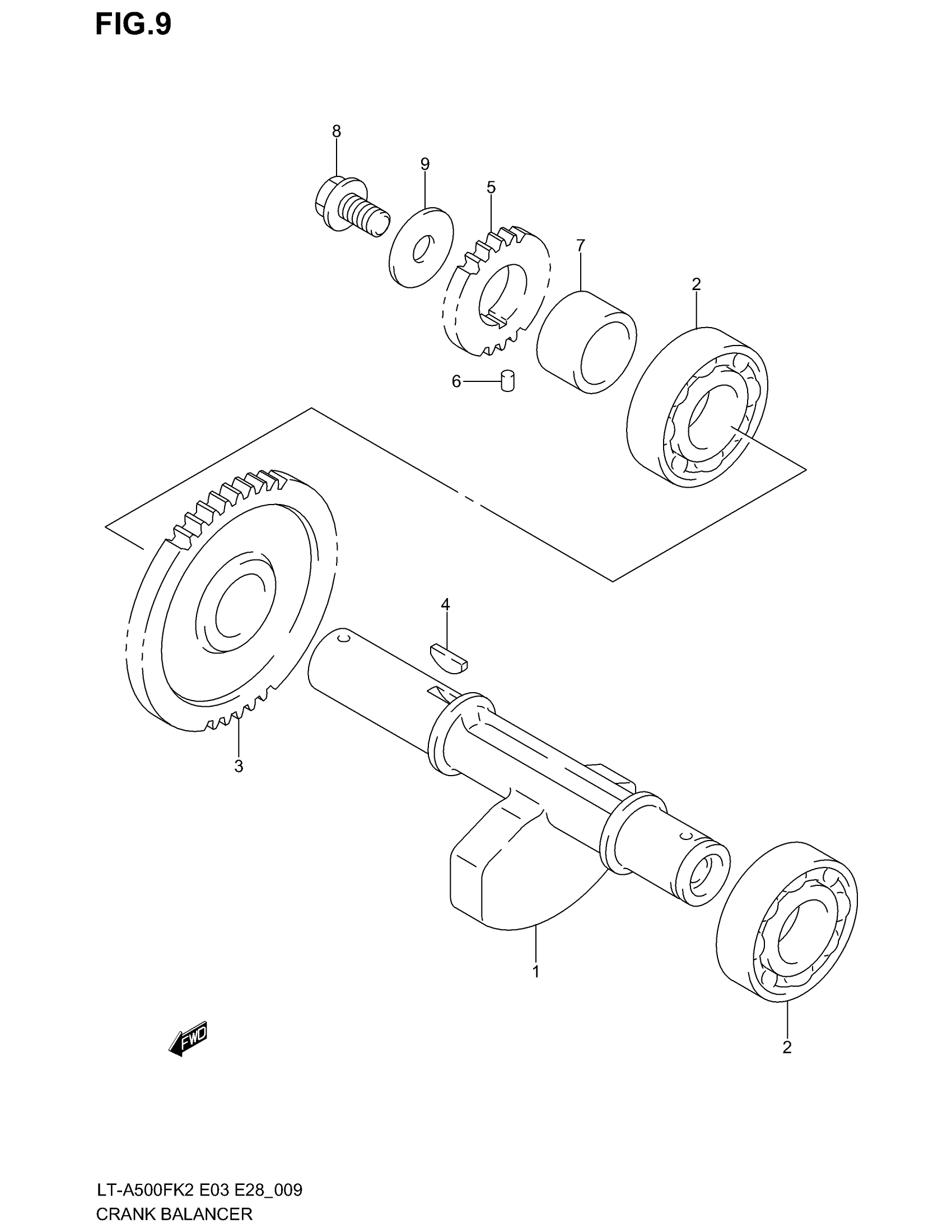

Find the part on the Crank Balancer diagram for your 2003 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki LT-A500F Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-09F50

1
Out of stock

2

BEARING (22X56X16)

09262-22029

2

$82.58

In stock

3

GEAR, DRIVEN NO.1 | MODEL K2

12666-03G00

1
Out of stock

3

GEAR, DRIVEN NO.1 | MODEL K3

12666-03G10

1
Out of stock

4

KEY

09420-04008

1
Out of stock

5

GEAR, OIL PUMP DRIVE (NT:20)

16321-44D01

1
Out of stock

6

PIN, DRIVE GEAR

04221-04069

1
Out of stock

7

SPACER, DRIVE GEAR

16322-09F50

1
Out of stock

8

BOLT, DRIVE GEAR

09103-10290

1
Out of stock

9

WASHER, DRIVE GEAR

08211-10305

1
Out of stock
