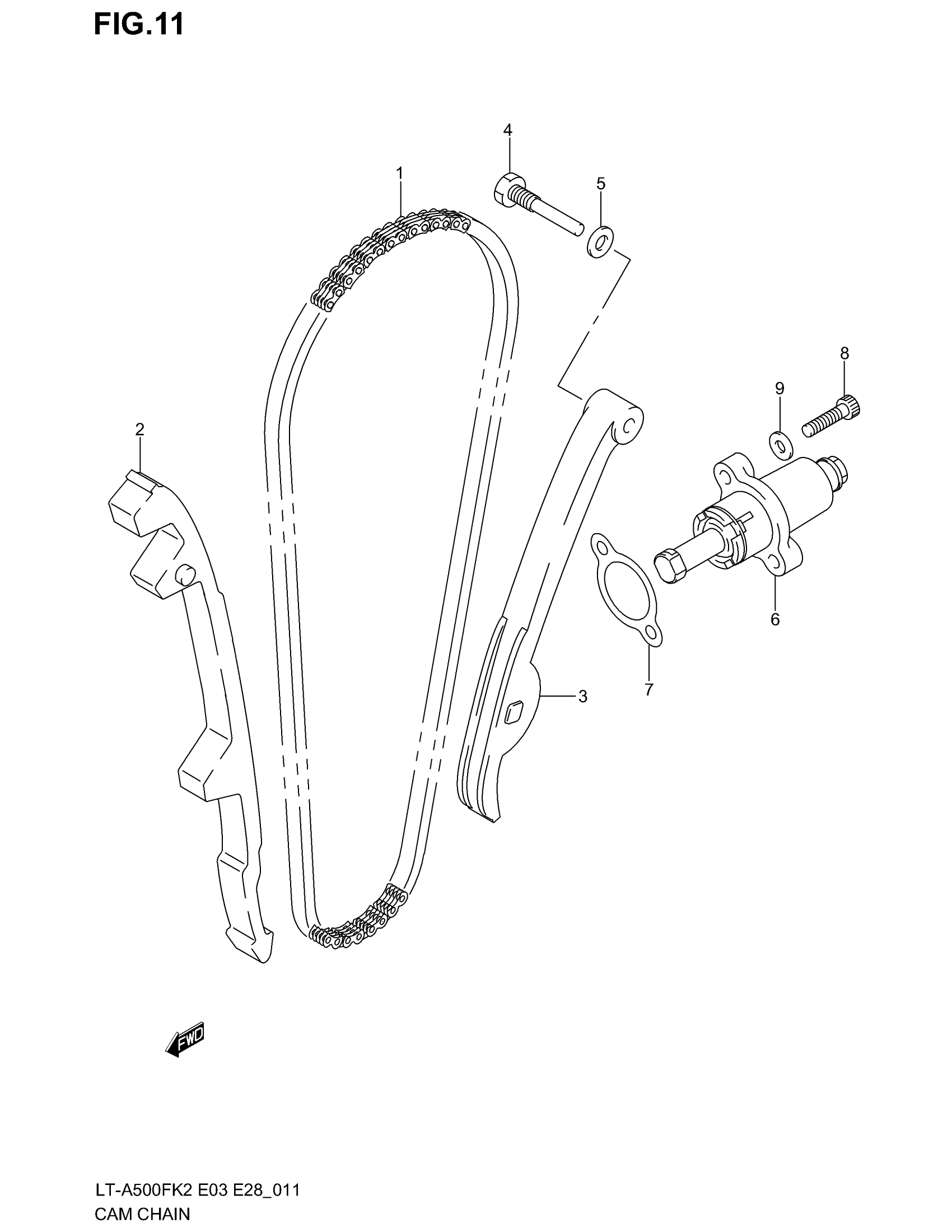

Suzuki LT-A500F (2003) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM (120LE)

12760-09F00

$193.98

2

GUIDE,CAM CHAIN This part replaces 12771-09F00.

12771-09F01

$87.30

3

TENSIONER, CAM CHAIN This part replaces 12811-09F00.

12811-09F01

$76.43

4

BOLT

12812-32410

$4.26

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$107.12

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

8

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

9

GASKET

09168-06023

$2.01
