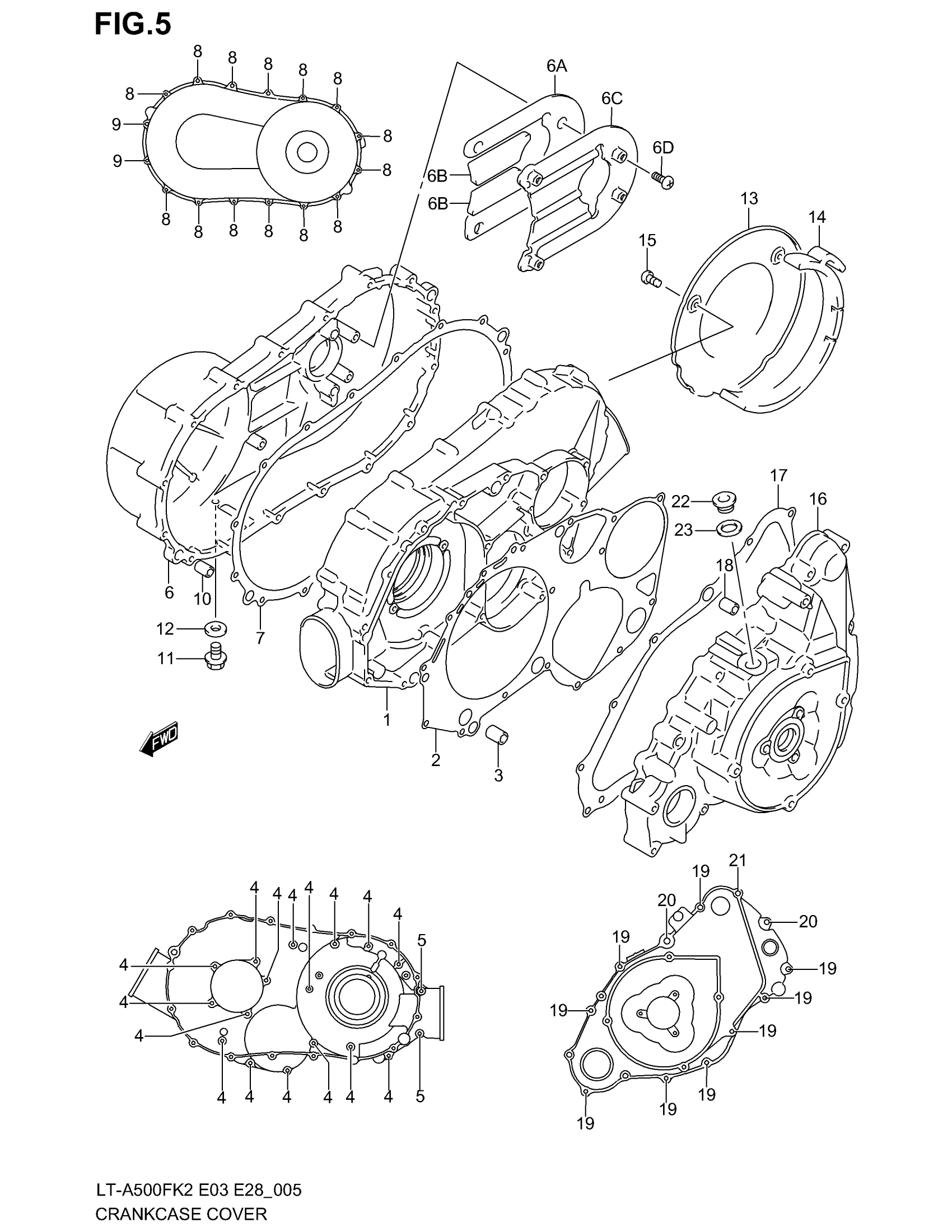

Suzuki LT-A500F (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-03G00

$564.42

2

GASKET

11482-09F50

$21.12

3

PIN

04211-13189

$2.19

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

5

BOLT This part replaces 01547-06753.

01547-0675B

$4.28

6

COVER, V BELT

11371-03G00

Unavailable

6A

DAMPER, V BELT COVER NO.1

11372-03G00

Unavailable

6B

DAMPER, V BELT COVER NO.2

11373-03G00

Unavailable

6C

PLATE, V BELT COVER

11374-03G00

Unavailable

6D

SCREW | MODEL K2 This part replaces 02112-06123.

02112-0612A

$1.43

6D

SCREW, V BELT PLATE | MODEL K3

09125-06086

$3.00

7

GASKET

11484-09F50

$46.97

8

BOLT This part replaces 01547-06453.

01547-0645B

$2.73

9

BOLT This part replaces 01547-06553.

01547-0655B

$2.74

10

PIN

04211-13189

$2.19

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

12

GASKET

09168-08029

$2.31

13

PLATE, AIR INTAKE | MODEL K2

11343-09F50

Unavailable

13

PLATE, AIR INTAKE | MODEL K3

11343-03G10

Unavailable

14

CUSHION, AIR INTAKE PLATE | MODEL K2

11344-09F51

Unavailable

15

SCREW | MODEL K2 This part replaces 02112-06123.

02112-0612A

$1.43

15

SCREW | MODEL K3

09125-06086

$3.00

16

COVER, MAGNETO

11351-03G00

$421.02

17

GASKET

11483-03G00

$23.55

18

PIN

04211-13189

$2.19

19

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

20

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

21

BOLT This part replaces 01547-06603.

01547-0660B

$2.87

22

PLUG, TDC CHECK

09248-16012

$4.19

23

GASKET

09168-16002

$1.89
