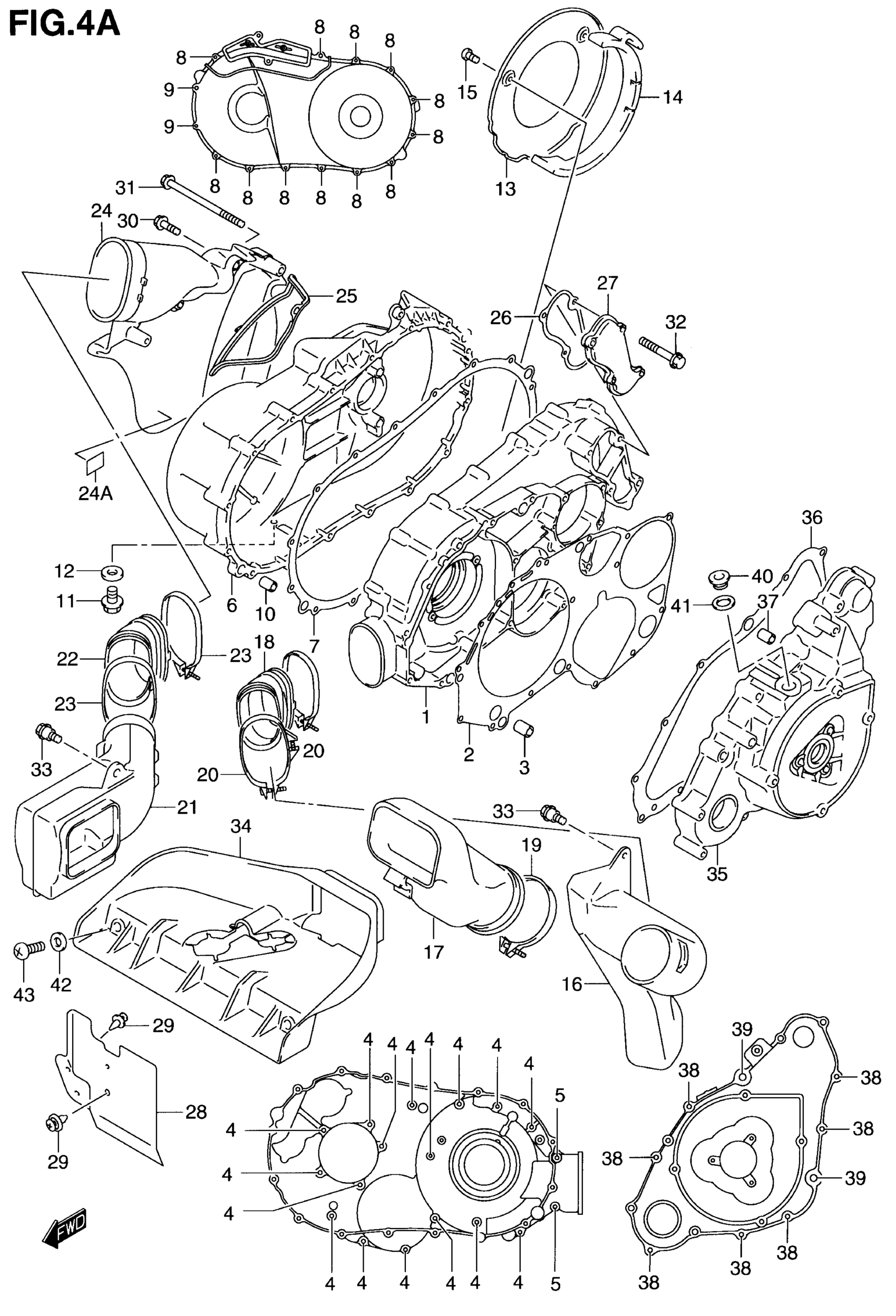

Find the part on the Crankcase Cover diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-09F50

1
Out of stock

2

GASKET

11482-09F50

1
Out of stock

3

PIN

04211-13189

2
Out of stock

4

BOLT This part replaces 01547-06403.

01547-0640B

16
Out of stock

5

BOLT This part replaces 01547-06753.

01547-0675B

2
Out of stock

6

COVER, V BELT

11371-09F60

1
Out of stock

7

GASKET

11484-09F50

1
Out of stock

8

BOLT This part replaces 01547-06453.

01547-0645B

12
Out of stock

9

BOLT This part replaces 01547-06803.

01547-0680B

2
Out of stock

10

PIN

04211-13189

2
Out of stock

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

1
Out of stock

12

GASKET

09168-08029

1
Out of stock

13

PLATE, AIR INTAKE

11343-09F50

1
Out of stock

14

CUSHION, AIR INTAKE PLATE This part replaces 11344-09F50.

11344-09F51

1
Out of stock

15

SCREW This part replaces 02112-06123.

02112-0612A

3
Out of stock

16

DUCT, BELT COOLING FRONT NO.1

11387-09F50

1
Out of stock

17

DUCT, BELT COOLING FRONT NO.2

11388-09F60

1
Out of stock

18

CONNECTOR, COOLING DUCT FRONT NO.1

11386-09F50

1
Out of stock

19

CLAMP, DUCT FRONT NO.2

09402-76208

1
Out of stock

20

CLAMP,BELT CLG DUCT FR

11389-09F50

2
Out of stock

21

DUCT, BELT COOLING CTR

11395-09F50

1
Out of stock

22

CONNECTOR, DUCT CTR NO.2

11394-09F50

1
Out of stock

23

CLAMP,BELT CLG DUCT FR

11389-09F50

2
Out of stock

24

CONNECTOR, DUCT CTR NO.1

11393-09F50

1
Out of stock

24A

CUSHION This part replaces 44281-29C00.

63191-25C00

2
Out of stock

25

GASKET, DUCT CTR CONNECTOR

11485-09F50

1
Out of stock

26

GASKET, DUCT RR CONNECTOR

11486-09F60

1
Out of stock

27

CAP, CLUTCH COVER

11396-09F60

1
Out of stock

28

GUARD, DUCT CTR

11392-09F50

1
Out of stock

29

CLIP

09409-06322-5PK

4
Out of stock

30

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

31

BOLT This part replaces 01550-06953.

01550-0695B

2
Out of stock

32

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

4
Out of stock

33

BOLT (6X16.5) This part replaces 09111-06061.

09111-06094

2
Out of stock

34

SEPARATOR, BELT COOLING DUCT FRONT

11399-09F60

1
Out of stock

35

COVER, MAGNETO

11351-09F50

1
Out of stock

36

GASKET

11483-09F50

1
Out of stock

37

PIN

04211-13189

2
Out of stock

38

BOLT This part replaces 01547-06403.

01547-0640B

7
Out of stock

39

BOLT This part replaces 01547-06503.

01547-0650B

2
Out of stock

40

PLUG, TDC CHECK

09248-16012

1
Out of stock

41

GASKET

09168-16002

1
Out of stock

42

WASHER, PLAIN (6.5X18X1.6)

09160-06109

2
Out of stock

43

SCREW This part replaces 02112-06083.

02112-0608A

2
Out of stock
