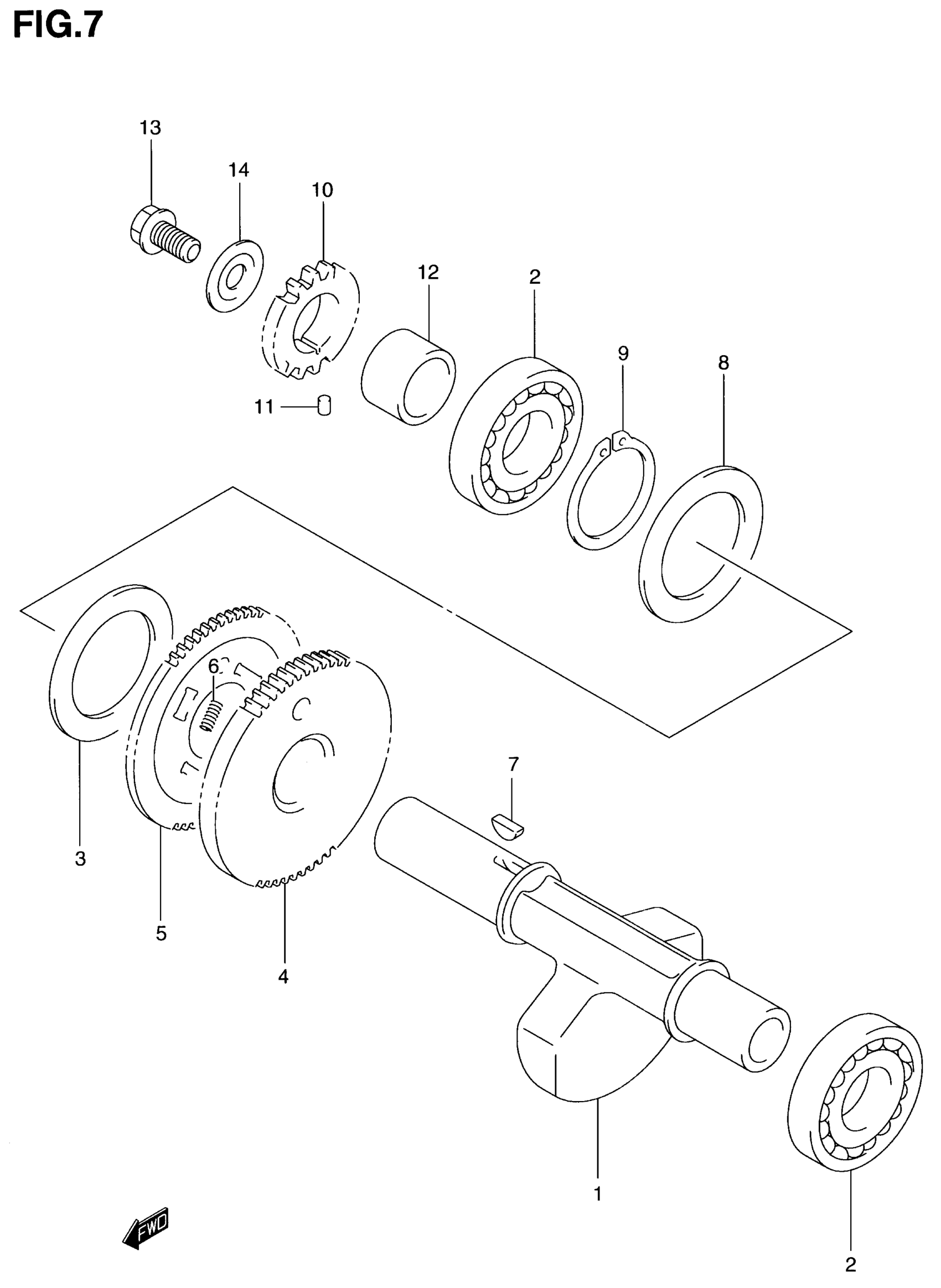

Find the part on the Crank Balancer diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-09F50

1
Out of stock

2

BEARING (22X56X16)

09262-22029

2
Out of stock

3

WASHER

09164-38006

1
Out of stock

4

GEAR, DRIVEN NO.1

12666-04F01

1
Out of stock

5

GEAR, DRIVEN NO.2

12667-04F01

1
Out of stock

6

SPRING, DRIVEN GEAR

09440-06020

2
Out of stock

7

KEY

09420-04008

1
Out of stock

8

WASHER

08211-38582

1
Out of stock

9

CLIP

08331-31383

1
Out of stock

10

GEAR, OIL PUMP DRIVE (NT:20)

16321-44D01

1
Out of stock

11

PIN, DRIVE GEAR

04221-04069

1
Out of stock

12

SPACER, DRIVE GEAR

16322-09F50

1
Out of stock

13

BOLT (10X20) This part replaces 09103-10028.

09103-10290

1
Out of stock

14

WASHER, DRIVE GEAR

08211-10305

1
Out of stock
