2001 Suzuki LT-A500F Cam Shaft - Valve Diagram

← All diagrams

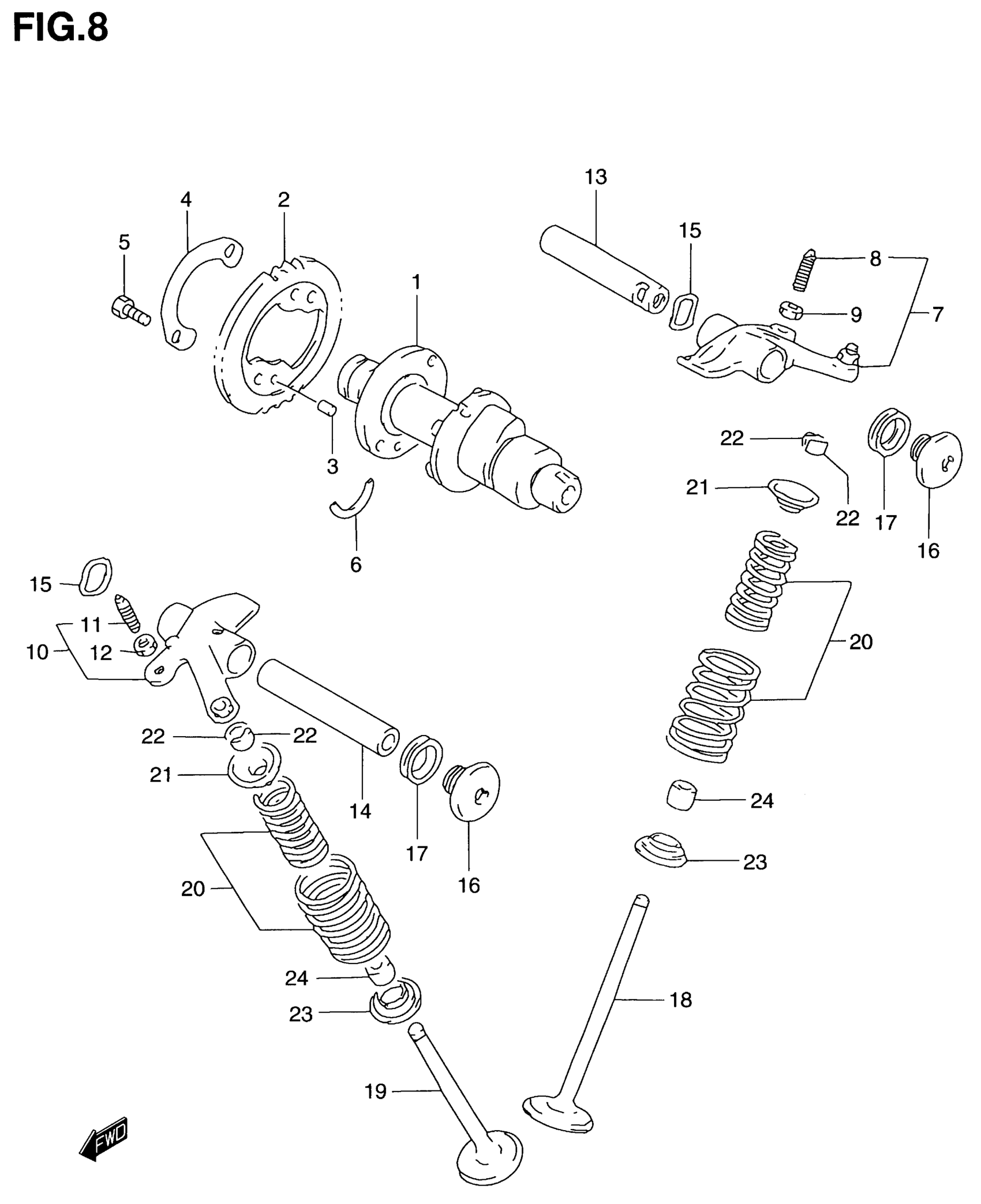

Find the part on the Cam Shaft - Valve diagram for your 2001 Suzuki LT-A500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki LT-A500F Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT COMP This part replaces 12710-44D01.

12710-44D03

1
Out of stock

2

SPROCKET

12741-09F00

1
Out of stock

3

PIN

09261-05005

1
Out of stock

4

WASHER,SPROCKET

12747-44B00

1
Out of stock

5

BOLT (6X10.5)

09111-06032

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | MODEL Y This part replaces 12840-14D50.

12840-15G00

1
Out of stock

7

ARM, VALVE ROCKER INTAKE | MODEL K1; Includes Item(s) 8 - 9 This part replaces 12840-15F00.

12840-15G00

1
Out of stock

8

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

9

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

10

ARM, VALVE ROCKER, EX | Includes Item(s) 11 - 12

12850-14D50

1
Out of stock

11

.SCREW,TAPPET ADJUSTING

12842-17C50

2
Out of stock

12

.NUT,TAPPET ADJUSTING

12843-27A00

2
Out of stock

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

1
Out of stock

14

SHAFT, ROCKER ARM, EX

12871-14D50

1
Out of stock

15

WASHER (12.7X18.1X0.2)

09164-12018

2
Out of stock

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

2
Out of stock

17

GASKET

09168-14002

2
Out of stock

18

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

2
Out of stock

19

VALVE,EXHAUST

12912-14D01

2
Out of stock

20

SPRING SET, VALVE

12920-06B00

4
Out of stock

21

RETAINER, SPRING

12931-27A01

4
Out of stock

22

COTTER, VALVE

12932-27A00

8
Out of stock

23

SEAT,VALVE SPRING

12933-81400

4
Out of stock

24

OIL SEAL (5X10X8.7)

09289-05011

4
Out of stock
