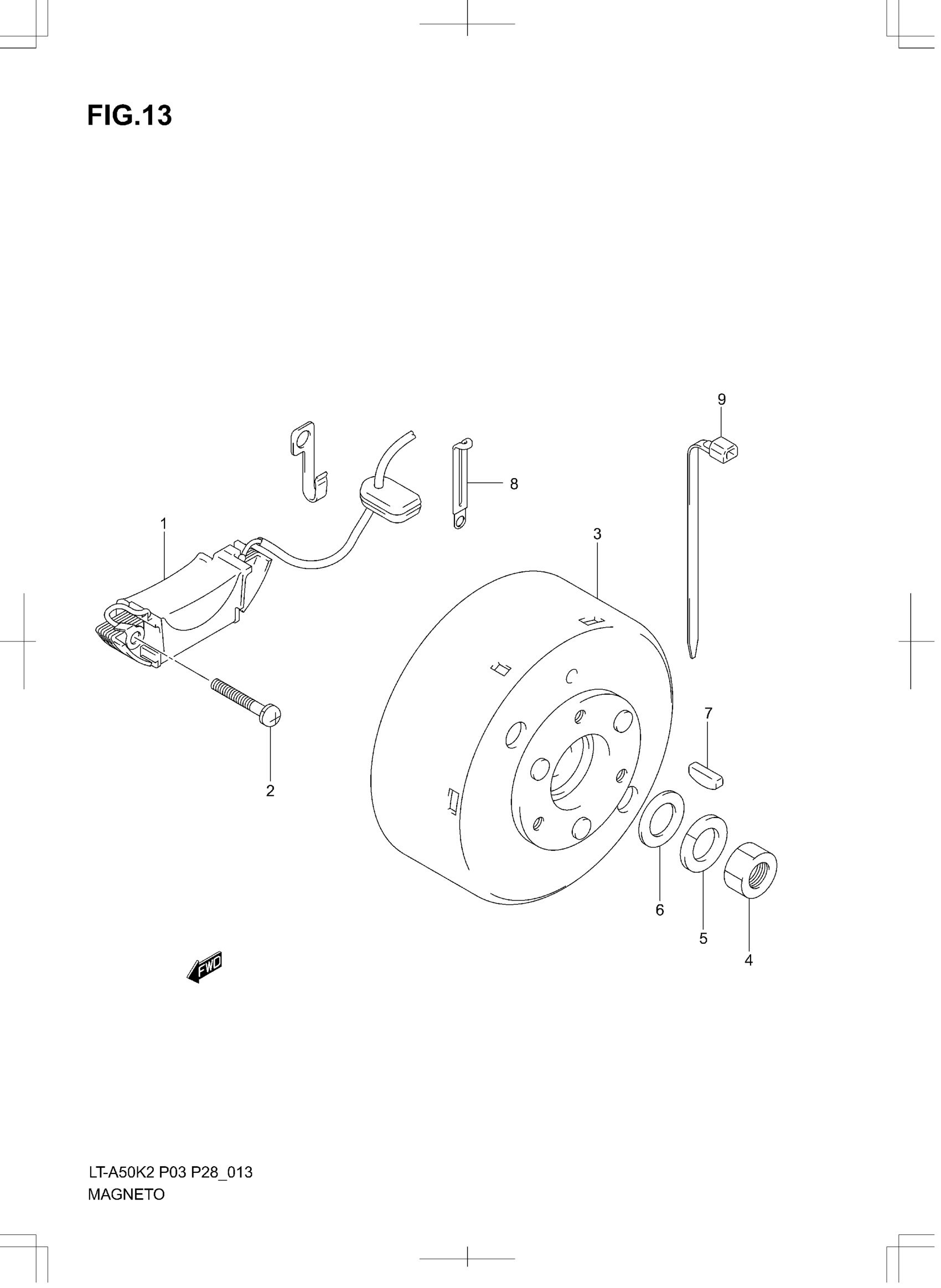

Suzuki LT-A50 (2005) MAGNETO Diagram

#

Description

Price

1

COIL ASSY, PRIMARY

32101-04432

$79.51

2

SCREW This part replaces 02112-34253.

02112-3425B

$3.37

3

ROTOR, FLYWHEEL

32102-04430

$262.03

4

NUT This part replaces 08310-00103.

08310-0010A

$1.94

5

LOCK WASHER This part replaces 08321-01103.

08321-0110A

$1.94

6

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.89

7

KEY

08341-31039

$1.97

8

CLAMP (L:80)

09404-06429

$1.88

9

CLAMP (L:125)

09407-14403

$2.31
