2005 Suzuki LT-A50 Crankcase Cover Diagram

← All diagrams

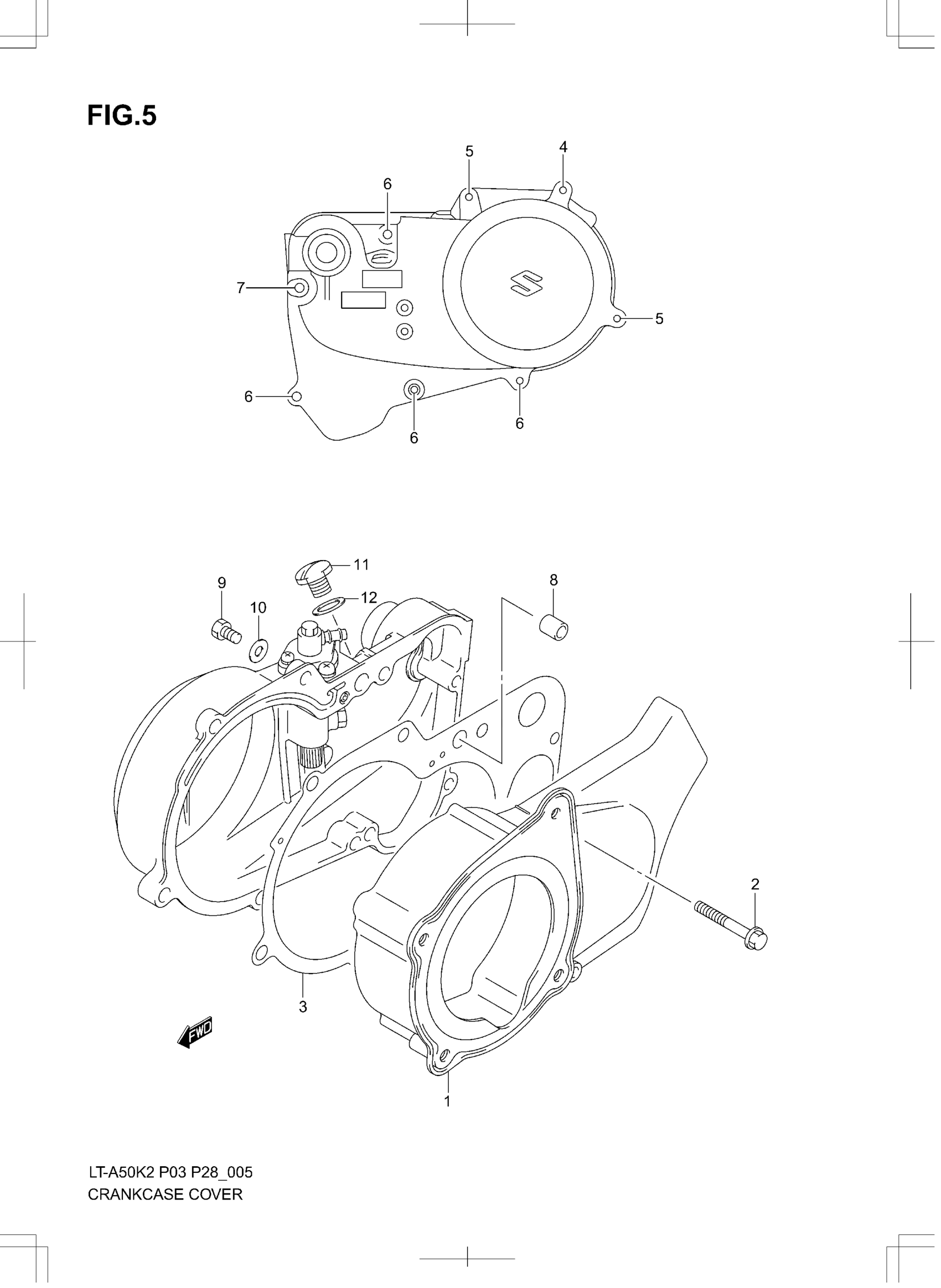

Find the part on the Crankcase Cover diagram for your 2005 Suzuki LT-A50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki LT-A50 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, MAGNETO

11351-04410

1

$134.47

In stock

2

2

$2.92

In stock

3

GASKET, CLUTCH COVER

11482-04420

1

$11.45

In stock

4

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

1
Out of stock

5

SCREW This part replaces 02112-06253.

02112-0625A

2
Out of stock

6

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

4
Out of stock

7

SCREW This part replaces 02112-06453.

02112-0645B

1
Out of stock

8

PIN

04211-09129

2
Out of stock

9

SCREW, OIL LEVEL (6X10)

09128-06044

1
Out of stock

10

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

11

PLUG, OIL FILLER

09248-14010

1

$7.03

In stock

12

GASKET

09168-14001

1

$3.20

In stock
