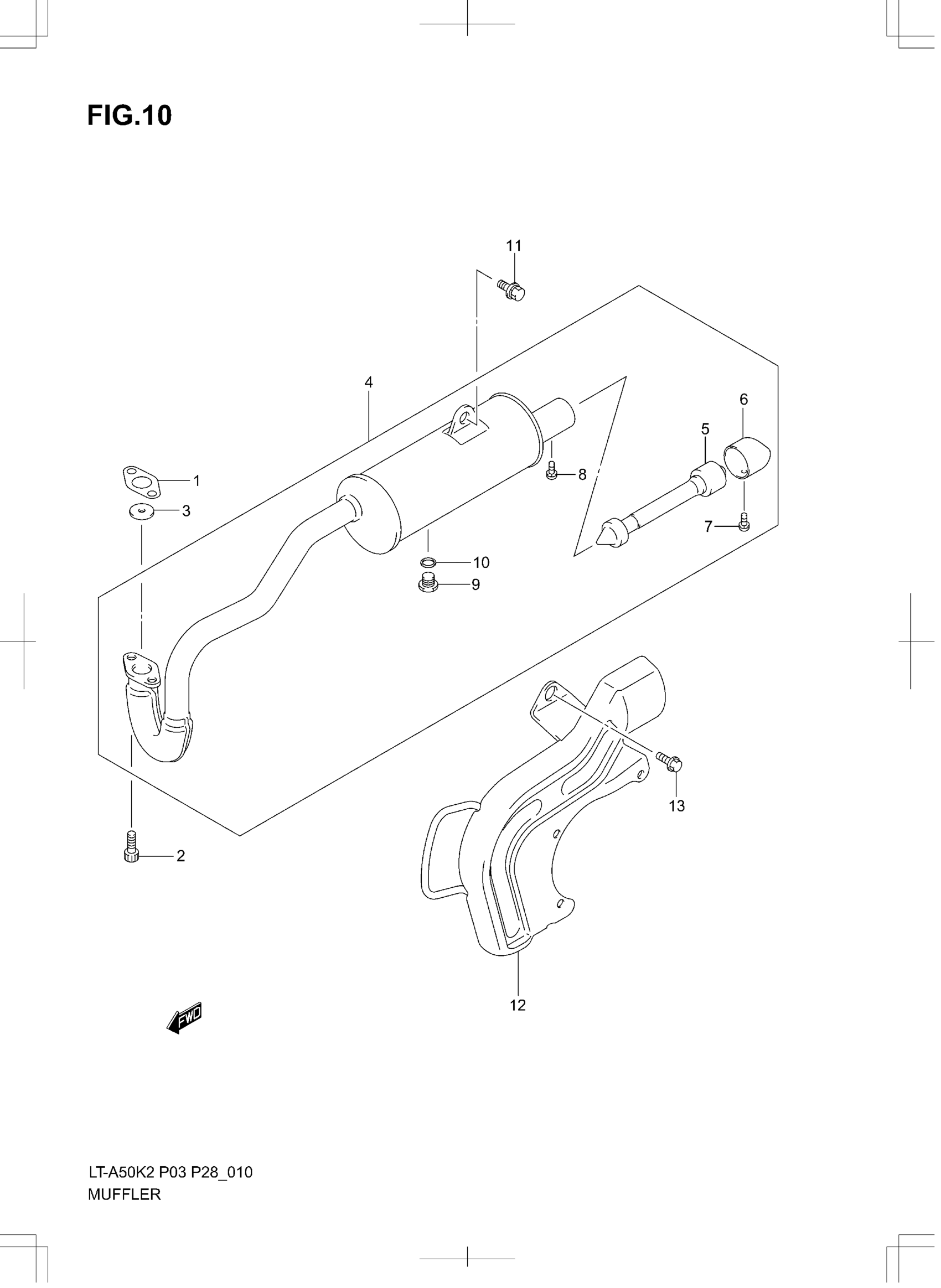

Suzuki LT-A50 (2005) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE (NA)

14181-04200

$7.98

2

BOLT This part replaces 07130-06163.

07130-0616B

$2.44

3

PLATE, EXHAUST PIPE

14159-04410

$1.92

4

MUFFLER ASSY | Includes Item(s) 5 - 10

14301-04610-H01

$545.13

5

TUBE, CLEAN OUT

14850-30602

$57.52

6

CUTTER, MUFFLER TAIL

14817-46600

$19.22

7

SCREW This part replaces 02112-36083.

02112-3608A

$2.67

8

SCREW This part replaces 02112-36083.

02112-3608A

$2.67

9

PLUG, DRAIN

09247-12103

$2.80

10

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

11

BOLT This part replaces 01580-08203.

01580-0820A

$3.58

12

COVER, EXHAUST PIPE

14186-43F00

Unavailable

13

SCREW | MODEL K2 This part replaces 02112-76163.

02112-7616A

$2.21

13

BOLT | MODEL K3/K4/K5 This part replaces 01547-06163.

01547-0616B

$2.50
