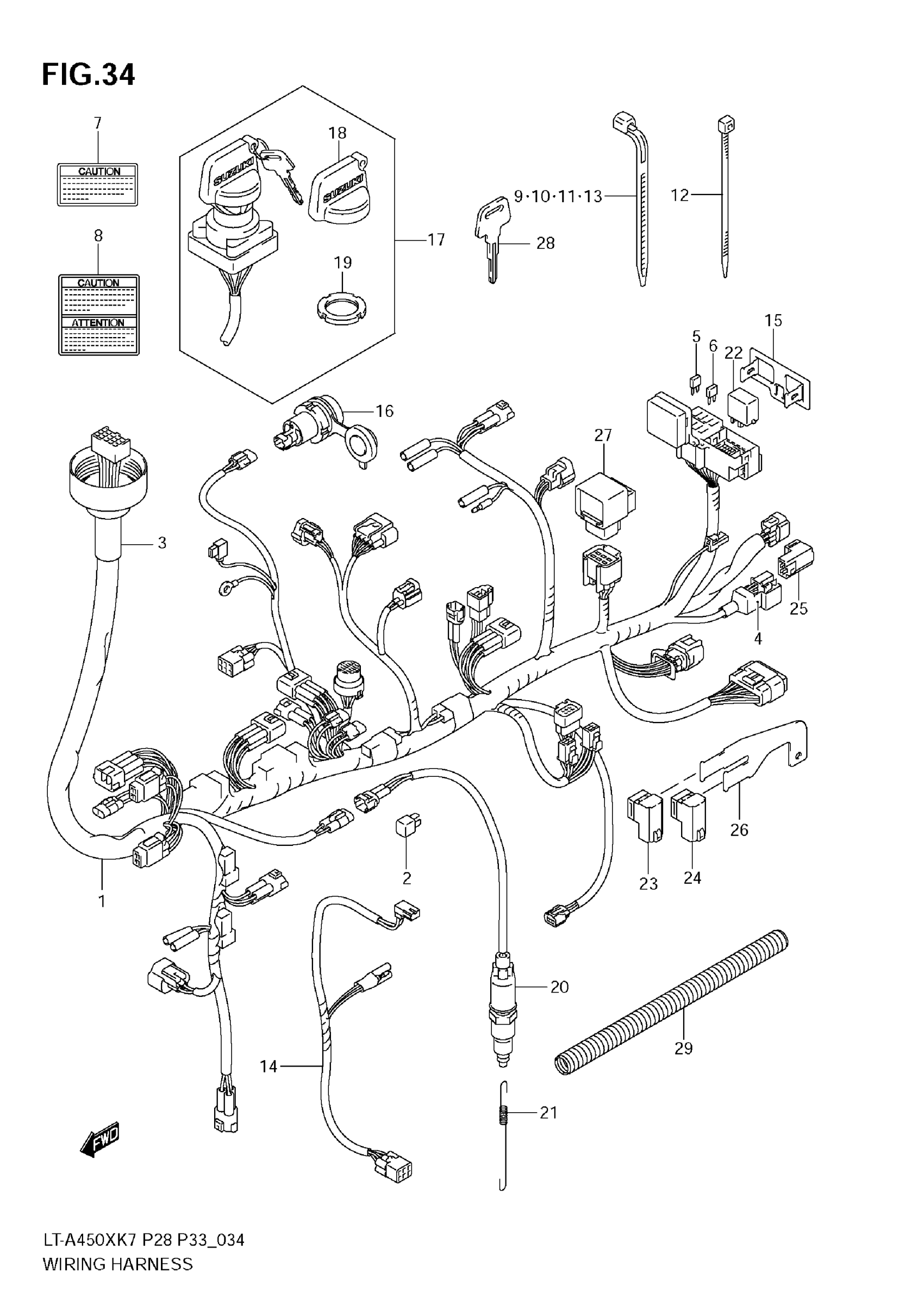

Suzuki LT-A450XK7 (2010) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-11H01

$542.72

2

RECTIFIER ASSY

32800-16A00

$21.12

3

COVER

36618-31G00

Unavailable

4

BOOT

36618-31G10

$10.50

5

FUSE (10A)

09481-10501

$2.07

6

FUSE (15A)

09481-15501

$2.07

7

LABEL, CAUTION MAX AMP | E33

38852-09F30

Unavailable

8

LABEL, CAUTION MAX AMP | E28

38852-03G10

Unavailable

9

CLAMP (L:95)

09407-11401

$2.87

10

CLAMP (L:125)

09407-14403

$2.24

11

CLAMP (L:235)

09407-25401

$4.21

12

CLAMP (L:145)

09407-14407

$2.80

13

CLAMP (L:190)

09407-19401

$3.32

14

WIRE, FRONT BRAKE SW LEAD

36855-38F10

Unavailable

15

BRACKET, FUSE

36744-31G00

Unavailable

16

TERMINAL,POWER SOURCE (12V,12 | 12V,12W

38850-03G10

$16.30

17

SWITCH ASSY,IGNITION This part replaces 37110-38F00.

37110-38F01

$75.25

18

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

19

.NUT,IGNITION SWITCH

37112-24500

$12.60

20

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

21

SPRING, STOP LAMP

09443-06080

$6.00

22

RELAY,NEUTRAL START

38730-09F00

$42.62

23

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$34.90

24

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$34.90

25

RELAY ASSY,FUEL This part replaces 38740-31G01.

38740-31G02

$34.90

26

BRACKET, RELAY

38741-31G20

Unavailable

27

RELAY ASSY, DRIVE

38750-31G00

$111.61

28

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

28

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

28

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

28

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38

29

GUIDE, WIRING HARNESS

36619-31G00

$20.42
