2010 Suzuki LT-A450XK7 Carrier Diagram

← All diagrams

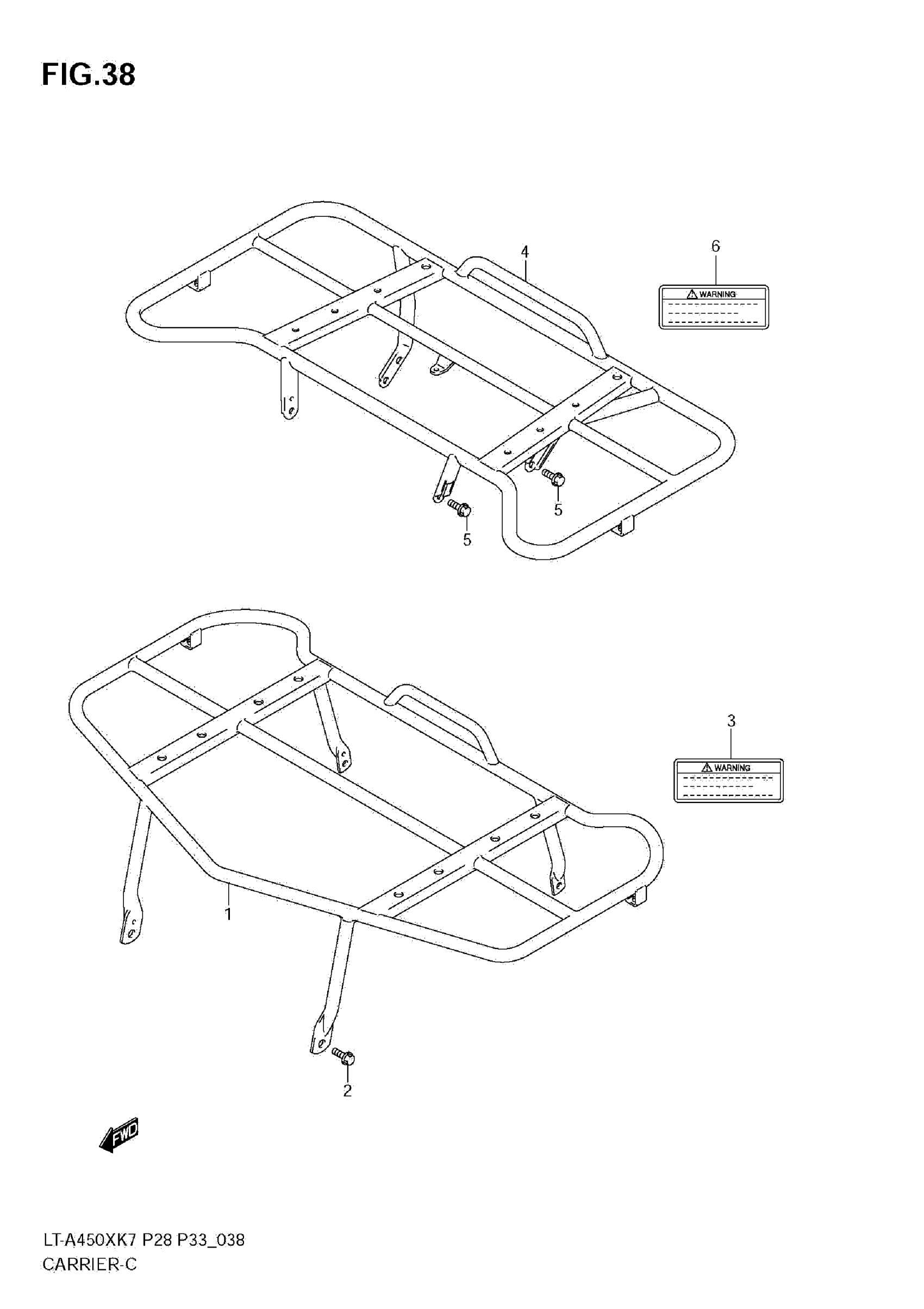

Find the part on the Carrier diagram for your 2010 Suzuki LT-A450XK7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki LT-A450XK7 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT (BLACK) | MODEL K7/K8 This part replaces 46410-31G11-YH5.

46410-31G13-YSN

1
Out of stock

1

CARRIER,FRONT | LT-A450XZ K8 This part replaces 46410-31G11-YFS.

46410-31G13-YFS

1
Out of stock

1

CARRIER, FRONT (BLACK) | MODEL K9/L0 This part replaces 46410-31G12-YSN.

46410-31G13-YSN

1
Out of stock

1

CARRIER,FRONT | LT-A450XZ K9 This part replaces 46410-31G12-YFS.

46410-31G13-YFS

1
Out of stock

2

BOLT (8X16) This part replaces 09103-08283.

09103-08570

4
Out of stock

3

LABEL,FRONT CAR | MODEL K7/K8 This part replaces 68381-19B00.

68381-19B01

1
Out of stock

3

LABEL, FRONT CARRIER | MODEL K9/L0

68381-31G00

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL K7/K8 This part replaces 46310-31G31-YH5.

46310-31G32-YSN

1
Out of stock

4

CARRIER, REAR (SILVER) | LT-A450XZ K8

46310-31G31-YFS

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL K9

46310-31G32-YSN

1
Out of stock

4

CARRIER, REAR (BLACK) | MODEL L0 This part replaces 46310-31GB1-YSN.

46310-31GB2-YSN

1
Out of stock

4

CARRIER, REAR (SILVER) | LT-A450XZ K9 This part replaces 46310-31G32-YFS.

46310-31G31-YFS

1
Out of stock

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

6
Out of stock

6

LABEL,REAR CARR | MODEL K7/K8 This part replaces 68391-19B00.

68391-19B01

1
Out of stock

6

LABEL, REAR CARRIER | MODEL K9/L0

68381-31G10

1
Out of stock
