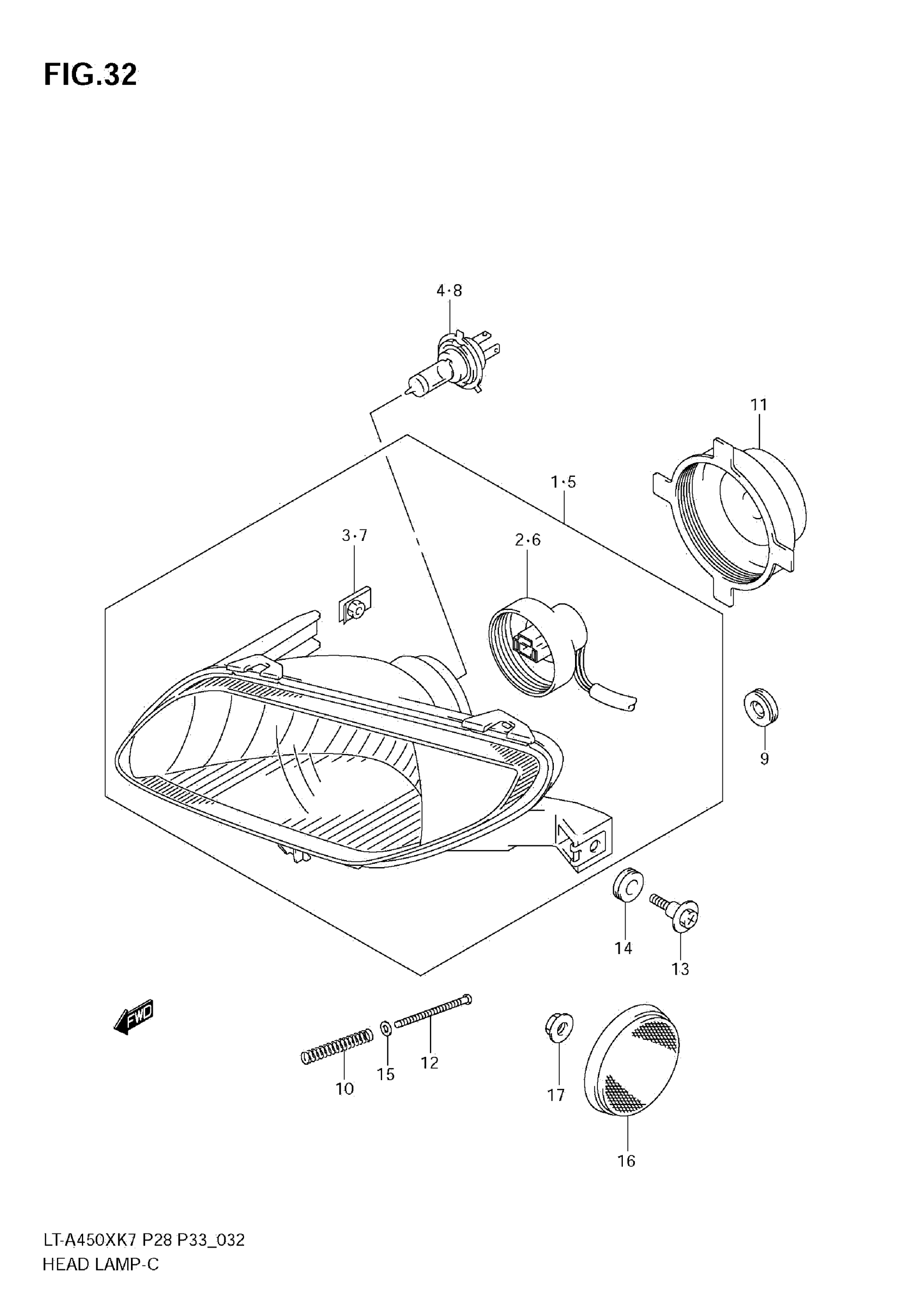

Suzuki LT-A450XK7 (2010) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY, R

35100-31G90-999

Unavailable

2

CORD ASSY, R

35171-31GM1

$33.97

3

NUT

35157-31G90

$5.22

4

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$62.83

5

HEADLAMP ASSY LH This part replaces 35300-31G90-999.

35300-31G92-999

$96.37

6

CORD ASSY, L

35171-31GH1

$43.43

7

NUT

35157-31G90

$5.22

8

BULB (12V35/35W) This part replaces 09471-12225.

09471-12101

$62.83

9

GROMMET, HEADLAMP HOUSING

09308-07011

$2.74

10

SPRING, HEADLAMP ADJUST

35154-31300

$3.64

11

COVER,HEADLAMP HOUSING

35174-31G00

$10.45

12

SCREW, HEADLAMP ADJUST | 4X50

09125-04031

$2.38

13

SCREW, HEADLAMP | 6X22.5

09139-06118

$3.16

14

CUSHION

09320-10501

$5.00

15

WASHER, HEADLAMP

08322-0104A

$1.99

16

REFLEX REFLECTOR ASSY, FR SID | E28 This part replaces 35950-14A10.

35950-14A11

$14.56

17

NUT, FRONT SIDE RR | E28

08316-1005B

$2.58
