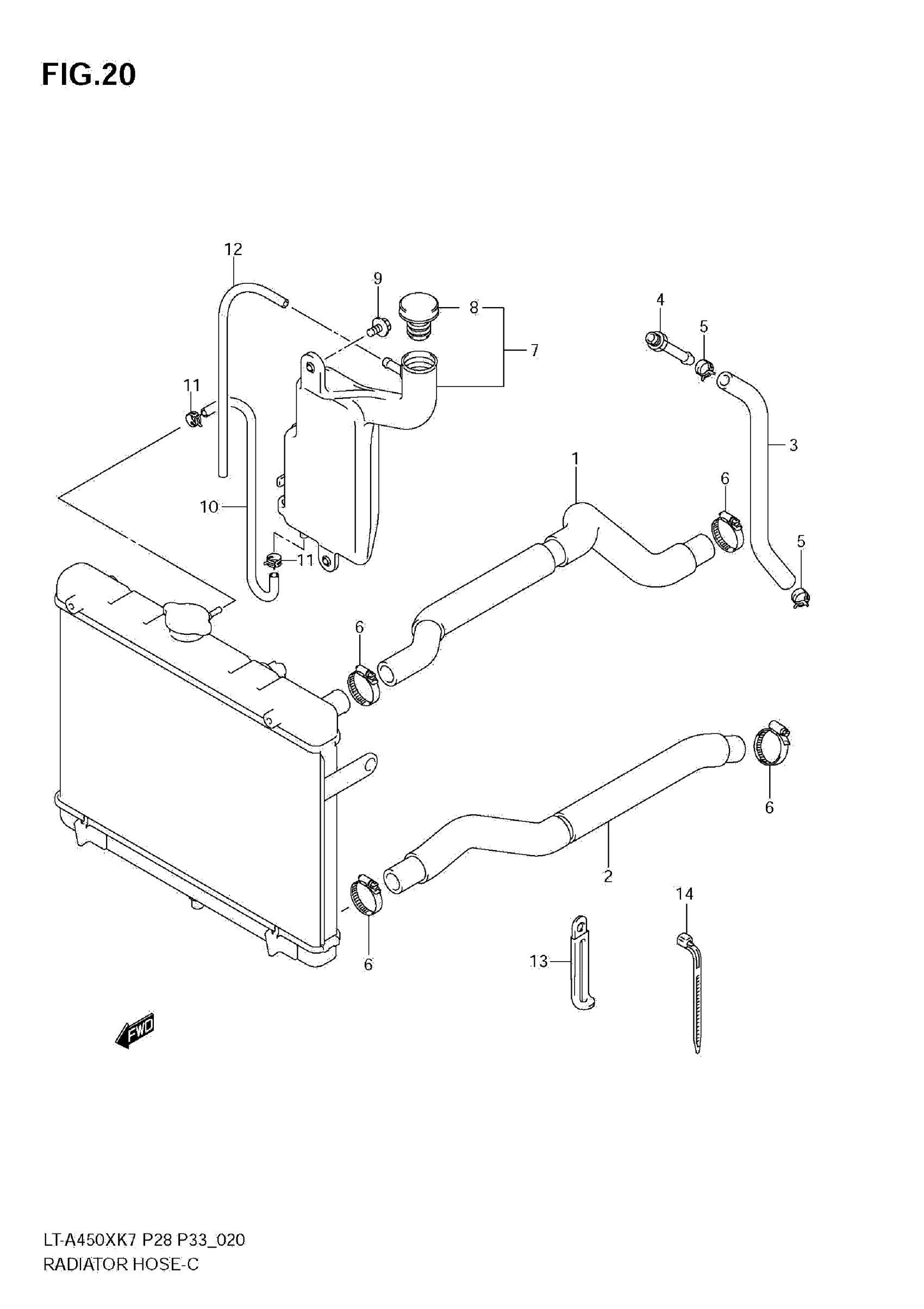

Suzuki LT-A450XK7 (2010) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-31G00

$52.50

2

HOSE, RADIATOR OUTLET

17852-31G00

$52.50

3

HOSE, WATER BYPASS

17854-11H00

$35.78

4

UNION, BYPASS

09362-09011

$7.84

5

CLIP This part replaces 09401-12409.

09401-12414

$3.09

6

CLAMP

09402-32512

$13.97

7

TANK,RESERVOIR This part replaces 17910-31G00.

17911-34K00

$30.07

8

.CAP,RESERVOIR TANK

17931-02FA0

$5.32

9

BOLT, 6X16

09116-06168

$2.57

10

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.59

11

CLIP

09401-08411

$1.82

12

HOSE, OVERFLOW | L:600!360

09352-50901-600

$7.63

13

CLAMP

09404-06429

$1.88

14

CLAMP

09407-19401

$3.32
