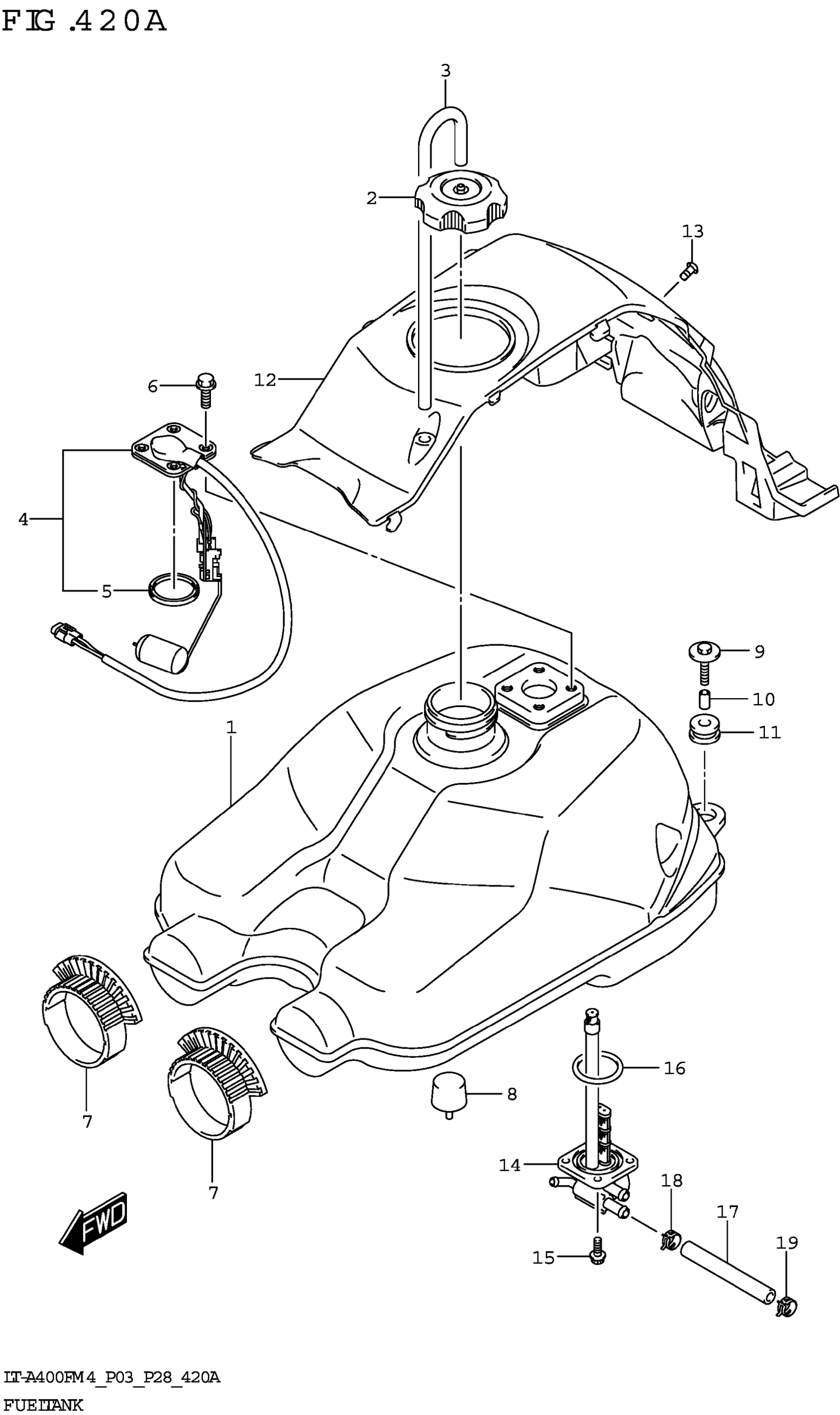

Suzuki LT-A400FM4 (2024) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL

44100-27HB2

$631.92

2

CAP ASSY, FUEL TANK FILLER

44200-29F01

$35.08

3

HOSE

09352-50005-290

Unavailable

4

GAUGE ASSY,FUEL This part replaces 34810-27H02.

34810-27H03

$127.75

5

.PACKING,FUEL LEVEL GAUGE

34825-03A01

$9.10

6

BOLT

01550-0612A

$1.97

7

CUSHION,FUEL TANK FR

44511-38F01

$22.08

8

CUSHION,FUEL TANK LWR

44543-38F01

$6.57

9

BOLT (6X30)

09116-06050

$2.28

10

SPACER (6.5X10X14)

09180-06293

$2.58

11

CUSHION,REAR

44281-03G01

$5.44

12

COVER,FUEL TANK UPPER (BLACK)

44271-27HA2-291

$39.52

13

BOLT (5X13)

09139-05085

$3.80

14

COCK ASSY,FUEL

44300-27HB0

$412.98

15

BOLT

07120-0612A

$2.50

16

O-RING,FUEL TANK OUTLET

44348-33H00

$29.67

17

HOSE,FUEL

44421-27HA2

$46.22

18

CLIP (ID:12.5)

09401-12405

$2.24

19

CLIP (ID:12.9)

09401-12410

$2.29
