2024 Suzuki LT-A400FM4 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2024 Suzuki LT-A400FM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

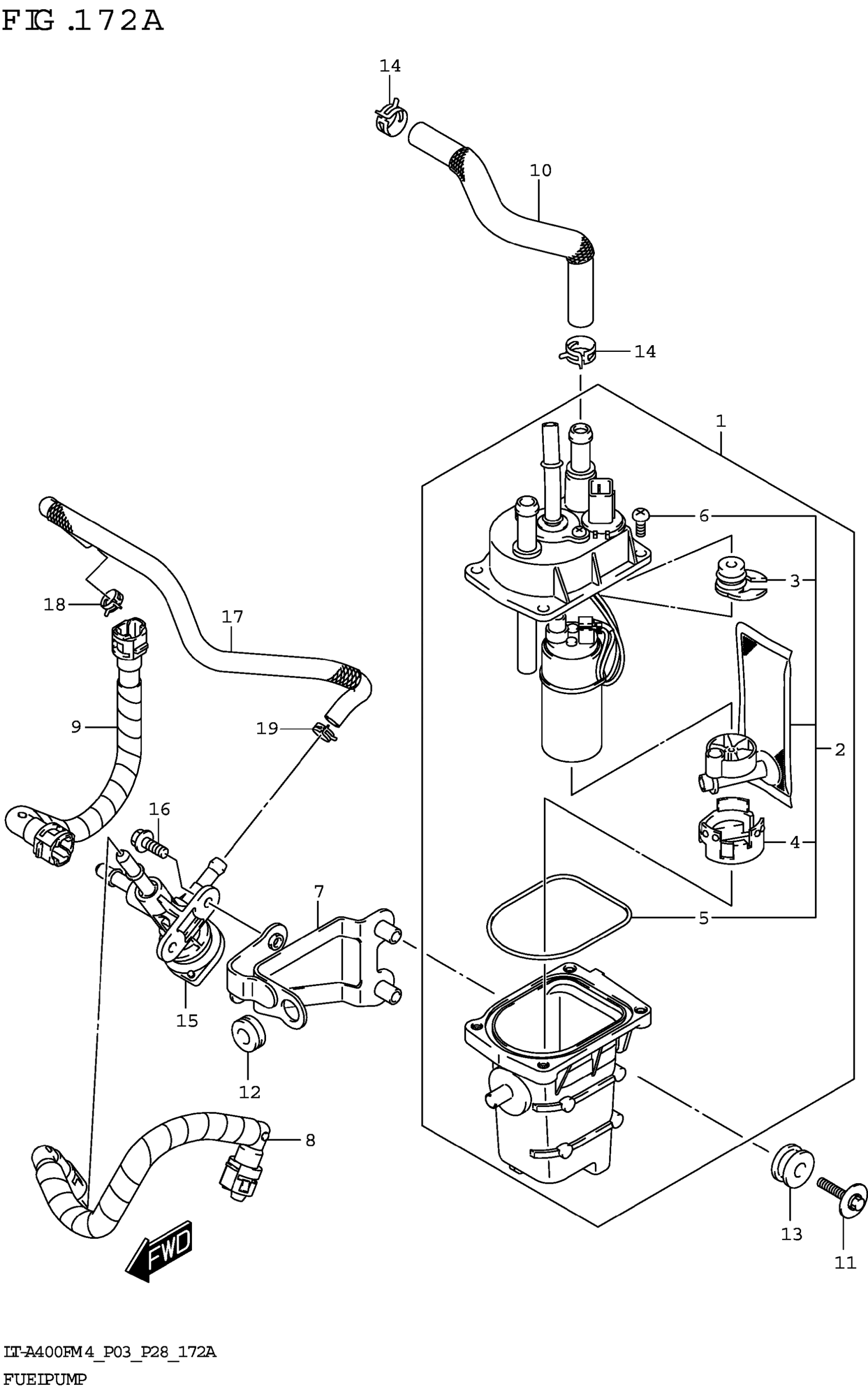

2024 Suzuki LT-A400FM4 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-33H03

1
Out of stock

2

.FILTER SET,FUEL PUMP

15420-33H01

1
Out of stock

3

..INSULATOR

15141-33H01

1
Out of stock

4

..INSULATOR

15142-33H00

1
Out of stock

5

..O RING

15162-33H00

1
Out of stock

6

..SCREW

13602-14G50

4
Out of stock

7

BRACKET,FUEL PUMP

15310-27H00

1
Out of stock

8

HOSE,FUEL NO.1

15810-27H03

1
Out of stock

9

HOSE,FUEL NO.2

15820-27H03

1
Out of stock

10

HOSE,FUEL NO.3

15831-27H01

1
Out of stock

11

BOLT (6X25)

09116-06186

2
Out of stock

12

CUSHION

09320-08508

—
Out of stock

13

CUSHION

09320-10076

2
Out of stock

14

CLIP (ID:12.9)

09401-12410

2
Out of stock

15

COCK ASSY,FUEL NO.2

44300-45G21

1
Out of stock

16

BOLT

01547-0616A

2
Out of stock

17

HOSE,FUEL RETURN

15841-27H01

1
Out of stock

18

CLIP (ID:11.1)

09401-11419

1
Out of stock

19

CLIP (ID:13.8)

09401-13414

1
Out of stock
