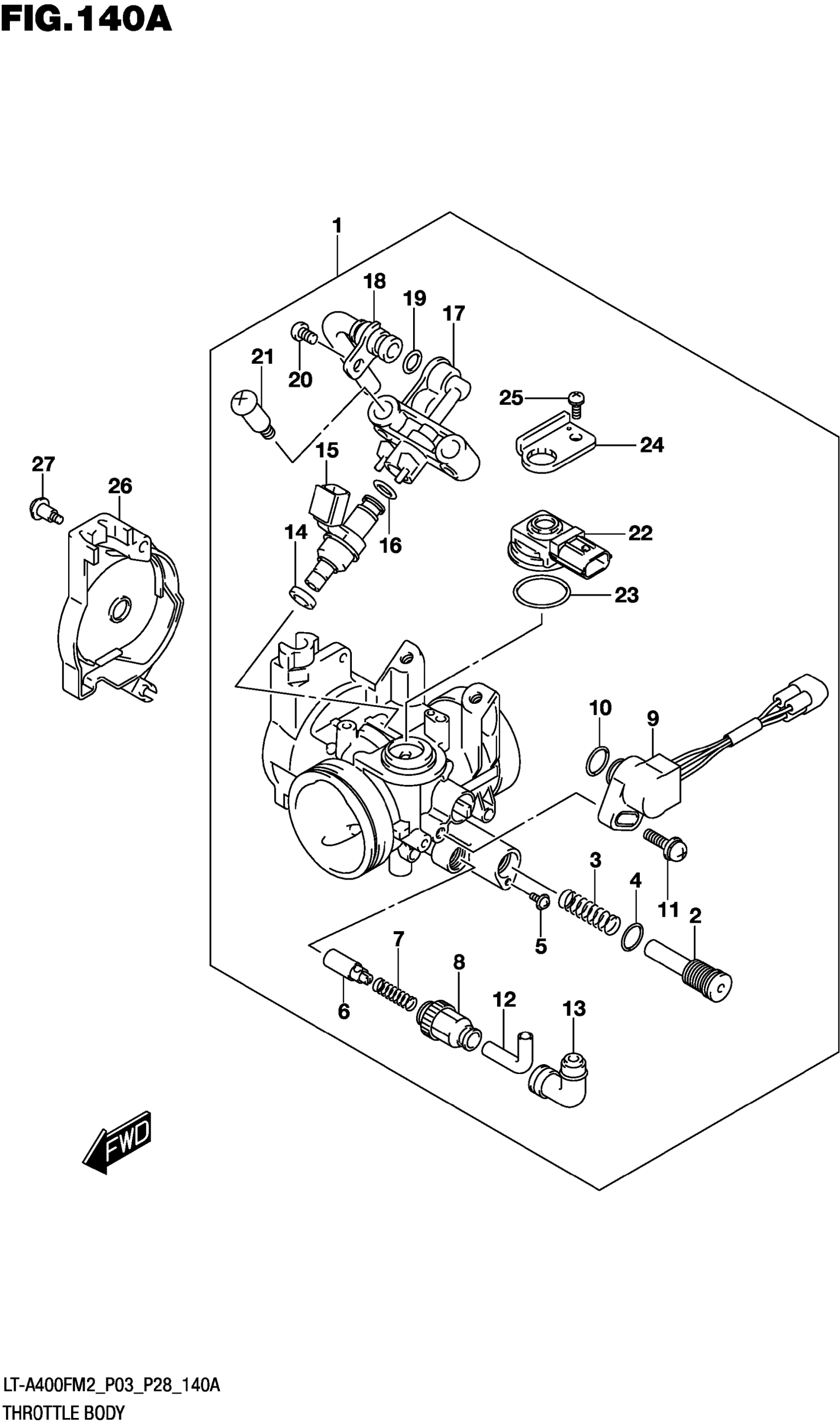

Find the part on the Throttle Body diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A400FM2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROT This part replaces 13400-27H12.

13400-27H13

1
Out of stock

2

.SCREW

13279-27H00

1
Out of stock

3

.SPRING

13271-14G00

1
Out of stock

4

.O-RING

13295-14G00

1
Out of stock

5

.SCREW

13601-14G00

1
Out of stock

6

.STARTER VALVE

13411-28H00

1
Out of stock

7

.SPRING

13271-45G00

1
Out of stock

8

.HOLDER,CABLE

13581-45G00

1
Out of stock

9

SENSOR,POSITION This part replaces 13580-27H11.

13580-27H12

1
Out of stock

10

.O-RING

13575-40F00

1
Out of stock

11

.SCREW

13605-40F00

1
Out of stock

12

.GUIDE,CABLE

13579-45G00

1
Out of stock

13

.CAP

13681-45G00

1
Out of stock

14

.RING,SEAL

15722-21H00

1
Out of stock

15

.INJECTOR ASSY

15710-21H10

1
Out of stock

16

.O-RING

15721-21H00

1
Out of stock

17

.PIPE,FUEL

13471-27H00

1
Out of stock

18

.JOINT

13685-27H00

1
Out of stock

19

.O-RING

15721-24F00

1
Out of stock

20

.SCREW

13452-45G00

1
Out of stock

21

.SCREW

13601-45G00

2
Out of stock

22

.SENSOR,MAP

15620-05H00

1
Out of stock

23

.O RING This part replaces 15621-05H00.

15621-05H01

1
Out of stock

24

.PLATE,MAP SENSOR

15622-33H00

1
Out of stock

25

.SCREW

02112-14087

1
Out of stock

26

COVER

13484-45G00

1
Out of stock

27

SCREW

13601-11F00

1
Out of stock
