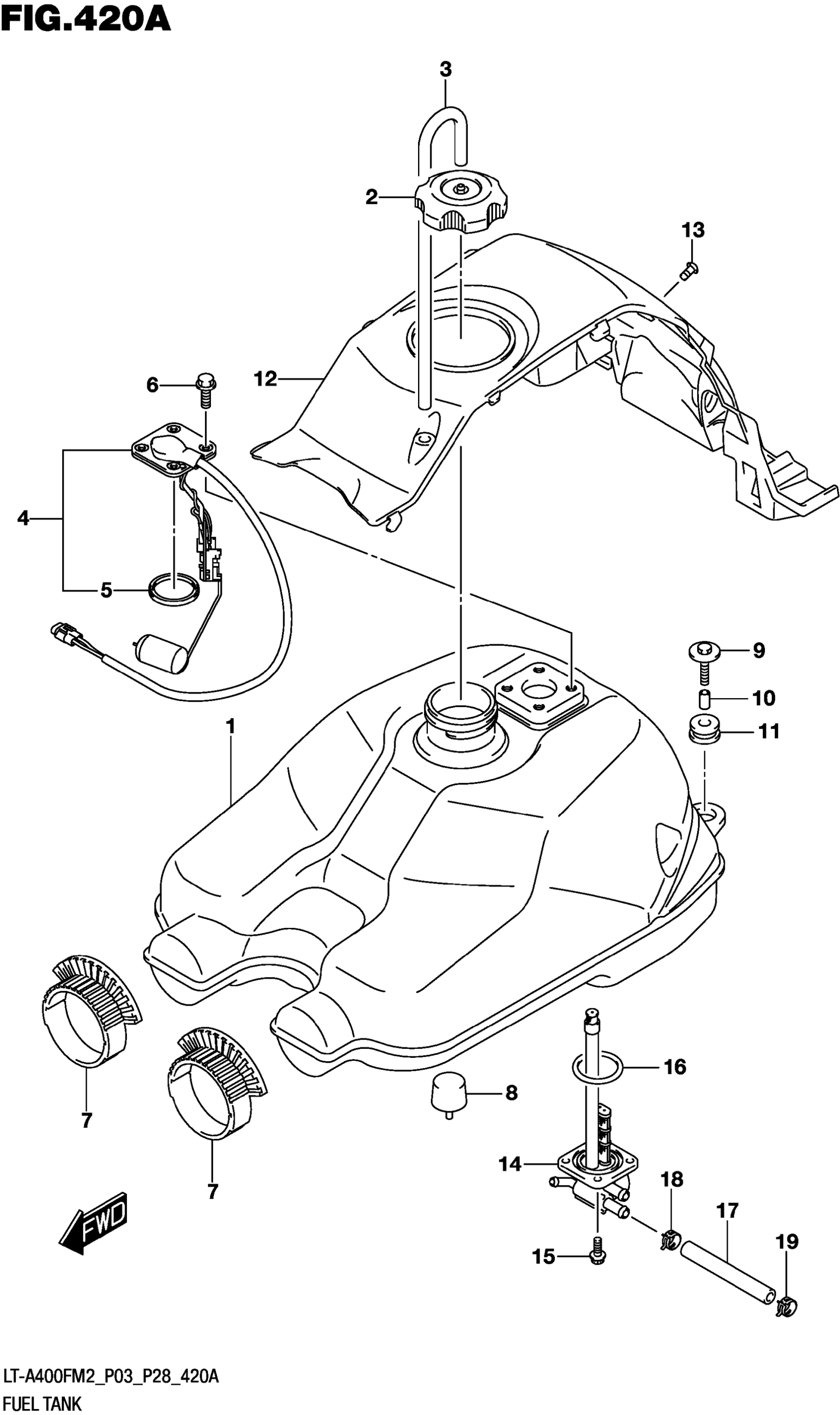

Find the part on the Fuel Tank diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A400FM2 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL

44100-27HB2

1
Out of stock

2

CAP ASSY, FUEL TANK FILLER

44200-29F01

1
Out of stock

3

HOSE

09352-50005-290

—
Out of stock

4

GAUGE ASSY,FUEL This part replaces 34810-27H02.

34810-27H03

1
Out of stock

5

.PACKING,FUEL LEVEL GAUGE

34825-03A01

1
Out of stock

6

BOLT

01550-0612A

4
Out of stock

7

CUSHION,FUEL TANK FR

44511-38F01

2
Out of stock

8

CUSHION,FUEL TANK LWR

44543-38F01

2
Out of stock

9

BOLT (6X30)

09116-06050

2
Out of stock

10

SPACER (6.5X10X14)

09180-06293

2
Out of stock

11

CUSHION,REAR

44281-03G01

2
Out of stock

12

COVER,FUEL TANK UPPER (BLACK) This part replaces 44271-27HA1-291.

44271-27HA2-291

1
Out of stock

13

BOLT (5X13)

09139-05085

1
Out of stock

14

COCK ASSY,FUEL

44300-27HB0

1
Out of stock

15

BOLT

07120-0612A

4
Out of stock

16

O-RING,FUEL TANK OUTLET

44348-33H00

1
Out of stock

17

HOSE,FUEL

44421-27HA2

1
Out of stock

18

CLIP (ID:12.5)

09401-12405

1
Out of stock

19

CLIP (ID:12.9)

09401-12410

1
Out of stock
