2022 Suzuki LT-A400FM2 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2022 Suzuki LT-A400FM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

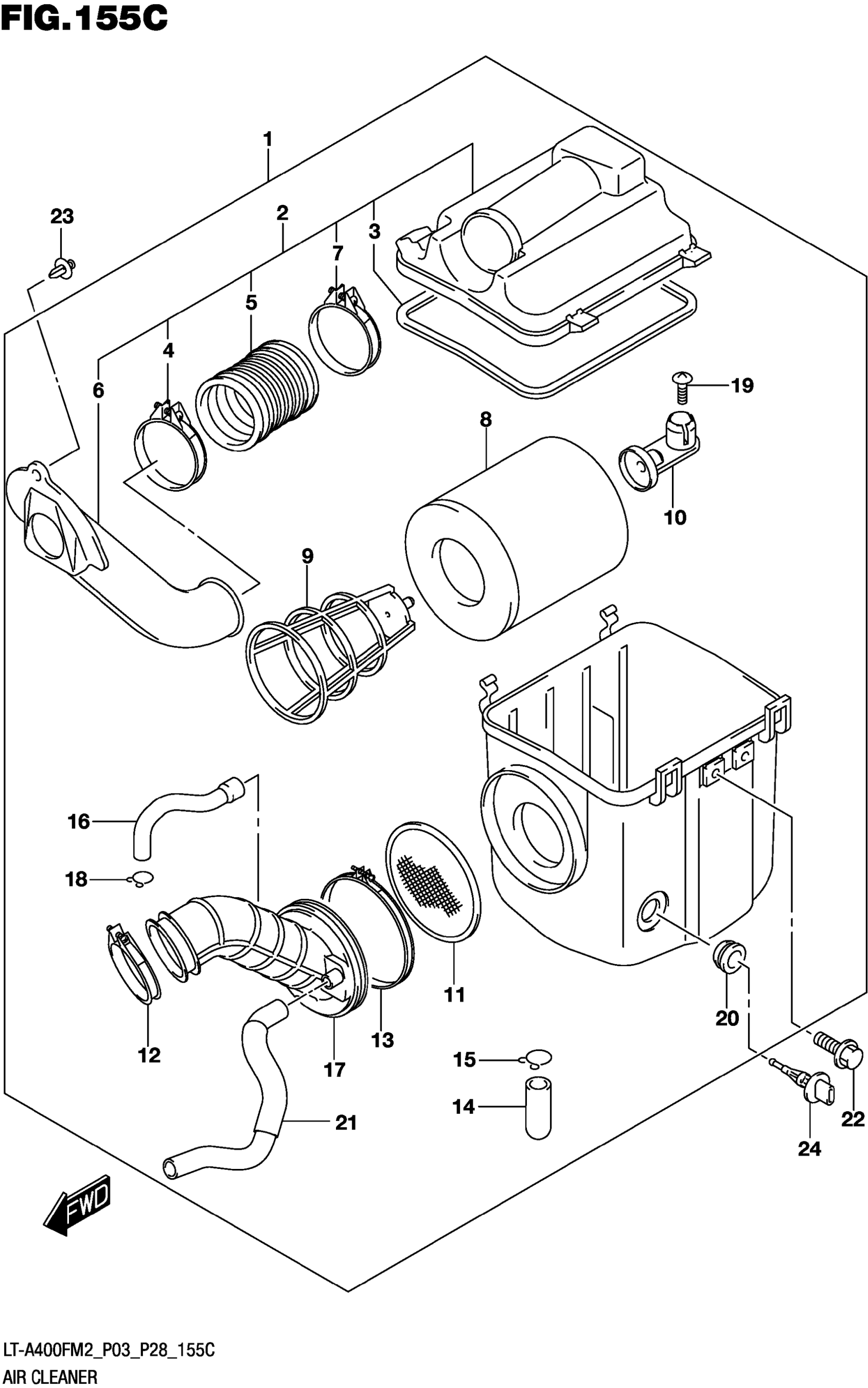

2022 Suzuki LT-A400FM2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-27H41

1
Out of stock

2

.INLET,AIR CLEANER

13890-27H01

1
Out of stock

3

..GASKET

13746-03G00

1
Out of stock

4

..CLAMP

13826-38F20

1
Out of stock

5

..JOINT,INLET

13891-03G01

1
Out of stock

6

..DUCT,INLET

13896-27H00

1
Out of stock

7

..CLAMP This part replaces 09402-60207.

09402-60208

1
Out of stock

8

.FILTER

13780-07G00

1
Out of stock

9

.HOLDER

13791-03G00

1
Out of stock

10

.STOPPER,HOLDER

13792-03G00

1
Out of stock

11

.TRAP, FLAME

13810-03G00

1
Out of stock

12

.CLAMP

13826-27H20

1
Out of stock

13

.CLAMP,OUTLET TUBE

13826-38F10

1
Out of stock

14

.PLUG,DRAIN

13878-09F01

1
Out of stock

15

.CLIP (ID:14.5)

09401-14101

1
Out of stock

16

.TUBE,BREATHER

13853-27H20

1
Out of stock

17

.TUBE, OUTLET

13881-27H40

—
Out of stock

18

.CLIP (ID:14.5)

09401-14101

1
Out of stock

19

SCREW

02142-0616A

1
Out of stock

20

1

$4.33

In stock

21

.TUBE, 2ND AIR

13857-27H40

—
Out of stock

22

BOLT (6X12) This part replaces 09103-06083.

09103-06285

2
Out of stock

23

CLIP (D:2.4,ID:23.7)

09409-07333

1
Out of stock

24

SENSOR,INLET AIR TEMP

13650-52G00

1
Out of stock
