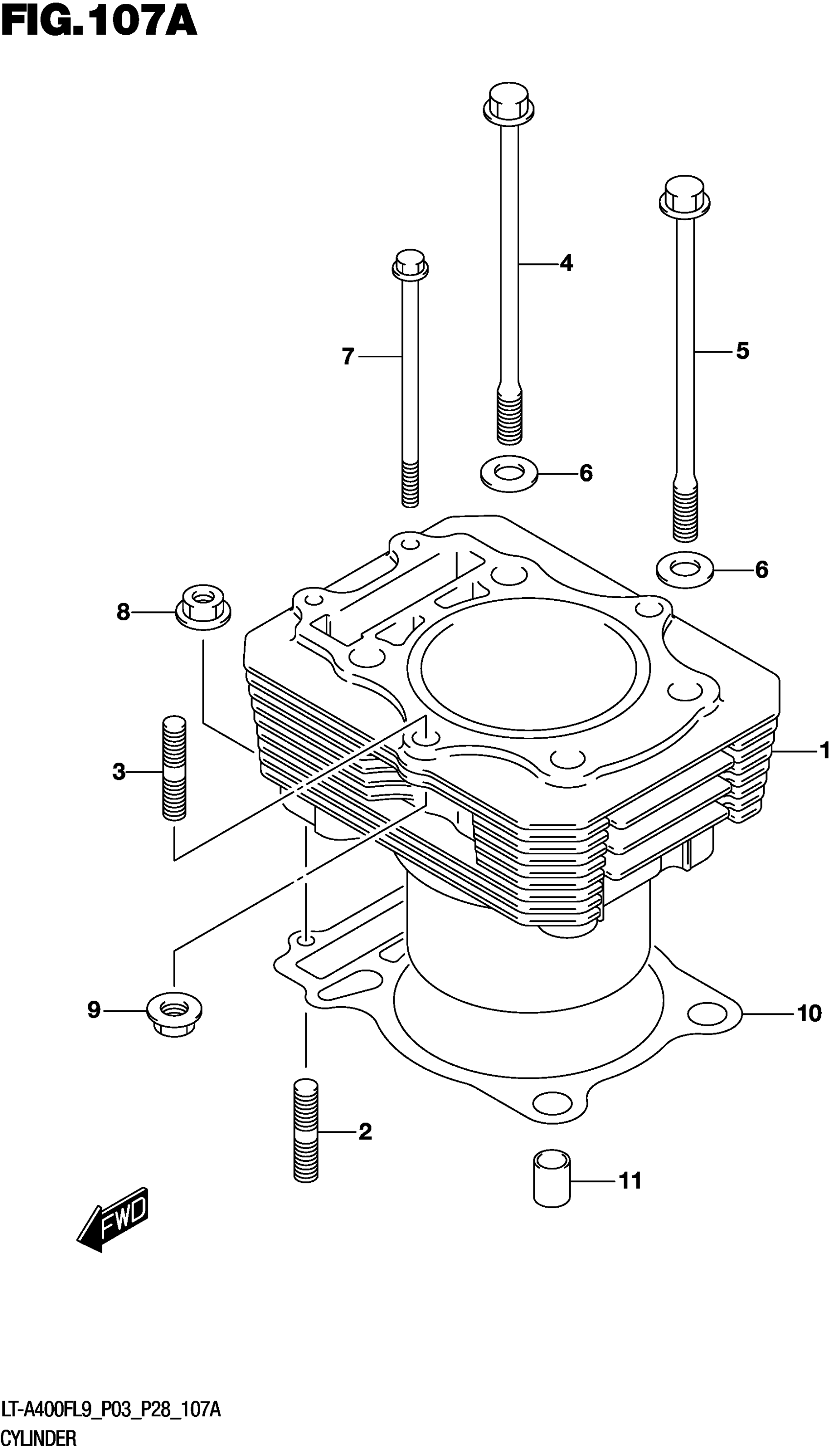

Find the part on the Cylinder diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LT-A400FL9 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-27H00-0F0

1
Out of stock

2

BOLT,STUD

01421-0620A

2
Out of stock

3

BOLT,STUD (L:30)

09108-08142

2
Out of stock

4

BOLT (10X180)

09103-10178

2
Out of stock

5

BOLT (10X170)

09103-10321

2
Out of stock

6

WASHER (10.5X22X2.3)

09160-10039

4
Out of stock

7

BOLT (6X115)

09103-06167

2
Out of stock

8

NUT (6X12)

08316-1006A

2
Out of stock

9

NUT

08316-1008A

2
Out of stock

10

.GASKET,CYLINDER

11241-38F00

1
Out of stock

11

PIN (10.4X13X18)

04211-13189

2
Out of stock
