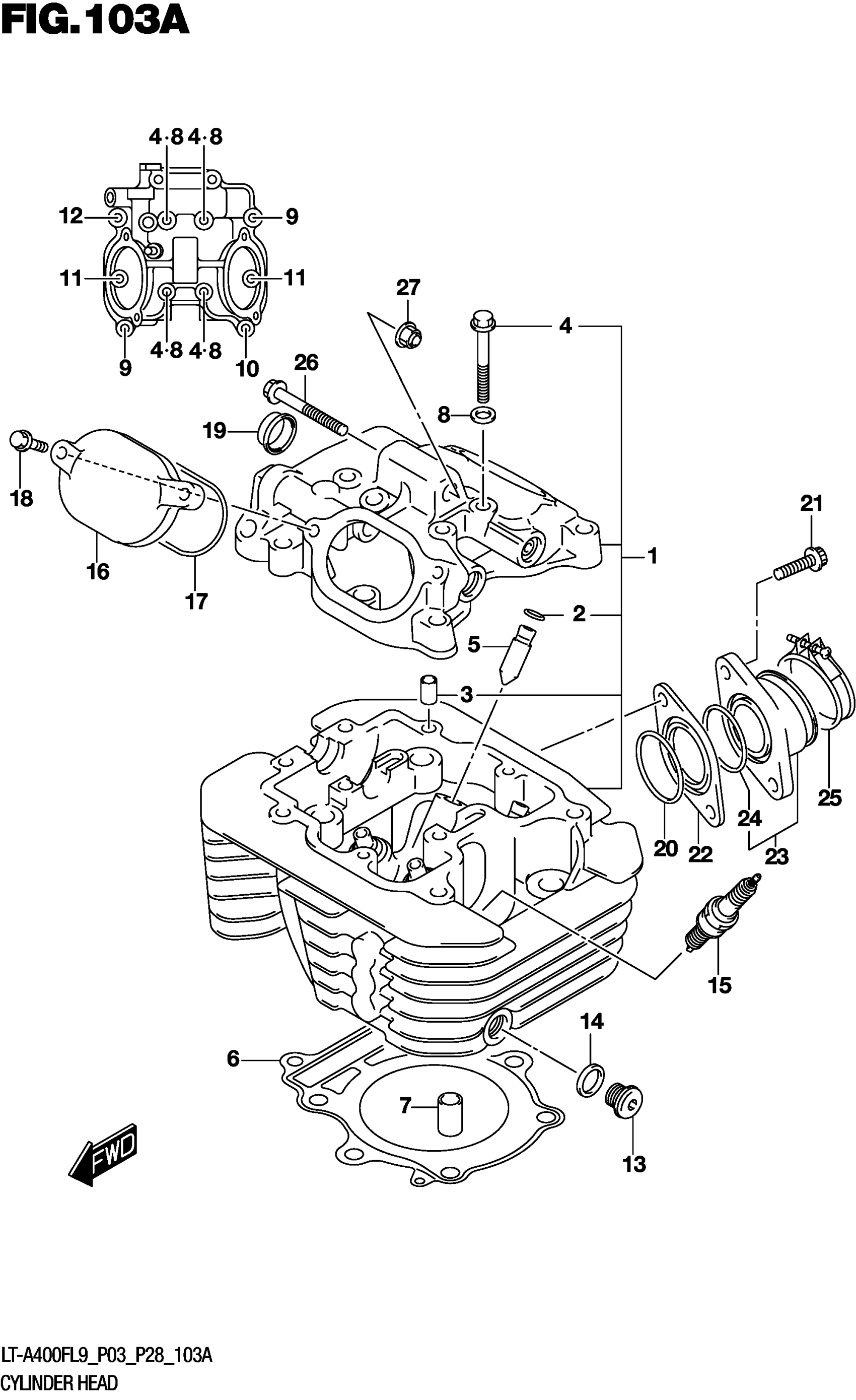

Find the part on the Cylinder Head diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LT-A400FL9 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-27H20

1
Out of stock

2

.RING (10X85)

09381-10004

4
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

.BOLT (6X55)

09103-06102

4
Out of stock

5

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

4
Out of stock

6

.GASKET,CYLINDER HEAD

11141-38F00

1
Out of stock

7

PIN (13X22)

09206-13004

2
Out of stock

8

GASKET (5.8X13X1.2)

09168-06023

4
Out of stock

9

BOLT (6X35)

09103-06108

2
Out of stock

10

BOLT (6X39)

09103-06026

1
Out of stock

11

BOLT (6X25)

01550-0625A

2
Out of stock

12

BOLT (L:30)

01550-0630A

1
Out of stock

13

PLUG (L:12)

09248-12004

1
Out of stock

14

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

15-1

PLUG,SPARK (IU22D)

09482-00553

1
Out of stock

15-2

PLUG,SPARK (CR7EIA-9)

09482-00554

1
Out of stock

15-3

PLUG,SPARK (IU24D) | OPT

09482-00555

1
Out of stock

15-4

PLUG,SPARK (CR8EIA-9) | OPT

09482-00556

1
Out of stock

15-5

PLUG,SPARK,CR6EIA-9 (CR6EIA-9 | OPT

09482-00590

1
Out of stock

16

CAP,INSPECTION

11175-47D00

2
Out of stock

17

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

18

BOLT (6X20)

01550-0620A

4
Out of stock

19

PLUG (OD:30)

09241-25007

1
Out of stock

21

BOLT

07120-0625A

2
Out of stock

22

INSULATOR, INTAKE PIPE

13117-38F01

1
Out of stock

23

1

$60.85

In stock

24

.O-RING (D:2.4,ID:39.7)

13118-38F00

1
Out of stock

25

CLAMP

09402-54208

1
Out of stock

26

.BOLT (8X60)

09103-08217

1
Out of stock

27

NUT

08319-3108A

1
Out of stock
