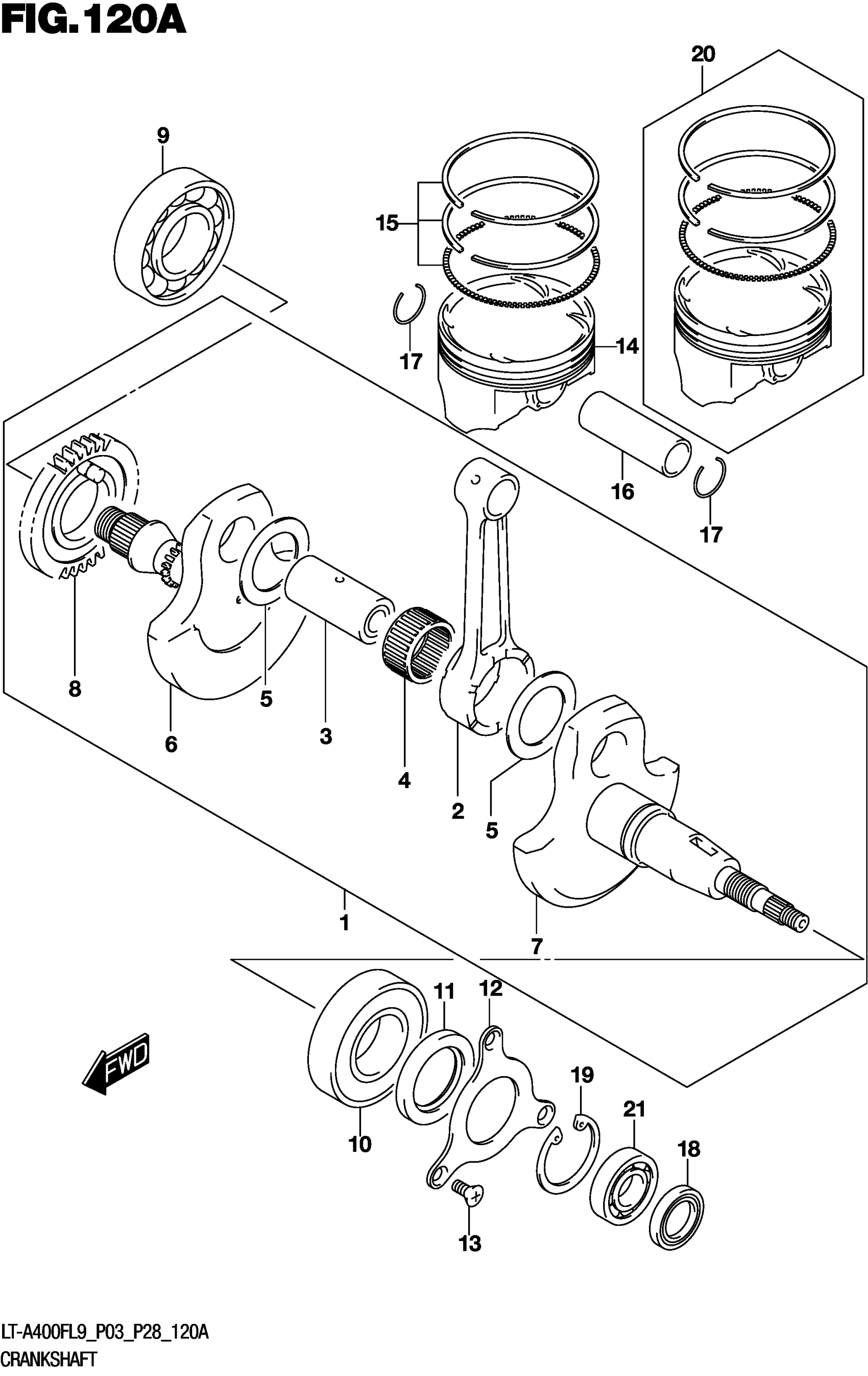

Find the part on the Crankshaft diagram for your 2019 Suzuki LT-A400FL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki LT-A400FL9 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12201-38821

1
Out of stock

2

.ROD,CONNECTING

12161-14D00

1
Out of stock

3

.PIN,CRANK

12210-38F00

1
Out of stock

4

.BEARING,34X43X22 (34X43X22)

09263-34005

1
Out of stock

5

.WASHER,34X52X1 (34X52X1)

09160-34003

2
Out of stock

6

.CRANKSHAFT,R (NT:24)

12220-38F12

1
Out of stock

7

.CRANKSHAFT,L

12260-38F10

1
Out of stock

8

.GEAR,CRANK BALANCER DRIVE (N

12661-38F01

1
Out of stock

8

.GEAR,CRANK BALANCER DRIVE (N

12661-38F01

1
Out of stock

9

BEARING (35X72X17)

09262-35038

1
Out of stock

10

BEARING (35X72X17)

09262-35067

1
Out of stock

11

OIL SEAL (34X52X6)

09282-34001

1
Out of stock

12

RETAINER,CRANKSHAFT OIL SEAL,

12541-38F00

1
Out of stock

12

RETAINER,CRANKSHAFT OIL SEAL,

12541-38F00

1
Out of stock

13

SCREW (6X12)

09126-06011

3
Out of stock

14

PISTON

12111-38F21-0F0

1
Out of stock

15

RING SET PISTON (STD)

12140-38F10

1
Out of stock

16

PIN,PISTON

12151-24A00

1
Out of stock

17

CIRCLIP

09381-20004

2
Out of stock

18

OIL SEAL (25X42X6)

09283-25095

1
Out of stock

19

CIRCLIP

08331-41479

1
Out of stock

20

PISTON SET,OS0.5 (OS:0.5) | OPT

12100-38F21-050

1
Out of stock

21

BEARING (25X47X8)

09262-25006

1
Out of stock
