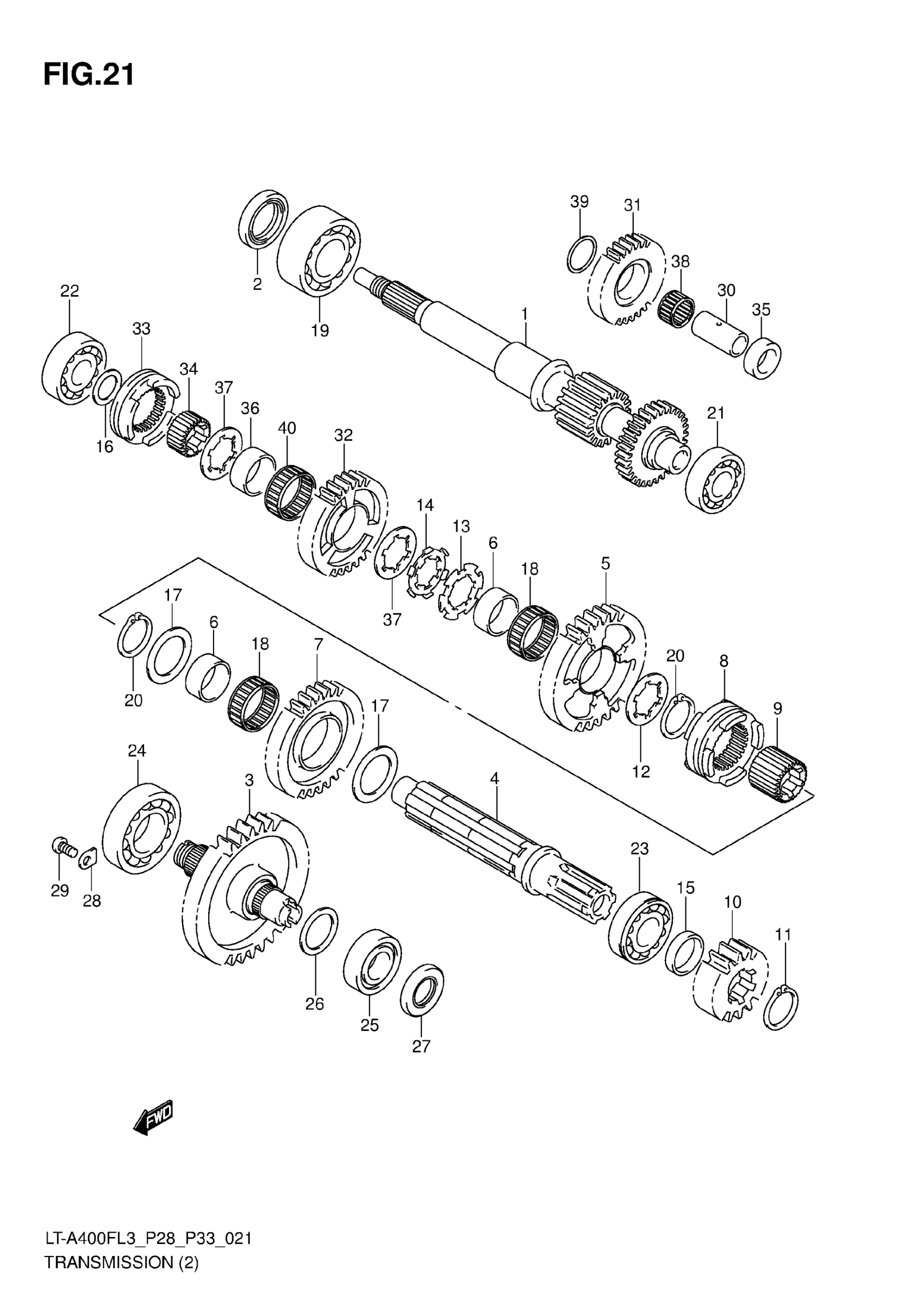

Find the part on the Transmission diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A400FL3 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, DRIVE (NT:16/24)

29111-38F10

1
Out of stock

2

SEAL, DRIVE SHAFT R OIL

12281-87J00

1
Out of stock

3

SHAFT, SUB T/M OUTPUT (NT:42)

29120-27H10

1
Out of stock

4

SHAFT,SUB T/M COUNTER

29131-27H00

1
Out of stock

5

GEAR, SUB T/M DRIVEN LOW (NT:40)

29311-09F51

1
Out of stock

6

BUSH, SUB T/M DRIVEN

29315-09F51

2
Out of stock

7

GEAR, SUB T/M DRIVEN HIGH (NT:33)

29321-09F51

1
Out of stock

8

DOG, SUB T/M SELECT

29331-38F10

1
Out of stock

9

SPACER, SUB T/M SELECT

29332-38F10

1
Out of stock

10

GEAR, SUB T/M DRIVE NO.2 (NT:19)

29411-38F00

1
Out of stock

11

CIRCLIP

08331-31259

1
Out of stock

12

LOCK WASHER

09167-25017

1
Out of stock

13

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

14

WASHER

09169-25001

1
Out of stock

15

SPACER (25X30X7)

09180-25097

1
Out of stock

16

SHIM (20X30X1)

09181-20195

1
Out of stock

17

SHIM (25X40X1)

09181-25251

2
Out of stock

18

BEARING (30X35X12.8)

09263-30018

2
Out of stock

19

BEARING

08113-62060

1
Out of stock

20

SNAP RING

09380-25003

2
Out of stock

21

BEARING (20X47X14)

09262-20069

1
Out of stock

22

BEARING (20X52X15)

09262-20073

1
Out of stock

23

BEARING (25X52X15)

09262-25003

1
Out of stock

24

BEARING (35X72X17)

09262-35038

1
Out of stock

25

BEARING (25X52X15)

09262-25003

1
Out of stock

26

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

1
Out of stock

27

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

28

RETAINER, BEARING

24741-21A00

2
Out of stock

29

SCREW (6X12)

09125-06122

2
Out of stock

30

SHAFT,REVERSE IDLE

24551-38F00

1
Out of stock

31

GEAR, REVERSE IDLE (NT:28)

24561-27H00

1
Out of stock

32

GEAR, REVERSE DRIVEN (NT:34)

24571-27H00

1
Out of stock

33

DOG,REVERSE GR SELECT SLIDING

24581-27H00

1
Out of stock

34

SPACER, REVERSE SLIDING

24582-38F10

1
Out of stock

35

SPACER,REVERSE IDLE GEAR

24562-27H00

1
Out of stock

36

BUSH, REVERSE DRIVEN GEAR

29315-09F51

1
Out of stock

37

LOCK WASHER

09167-25017

2
Out of stock

38

BEARING (20X24X13)

09263-20060

1
Out of stock

39

SHIM (20X30X1)

09181-20195

1
Out of stock

40

BEARING (30X35X12.8)

09263-30018

1
Out of stock
