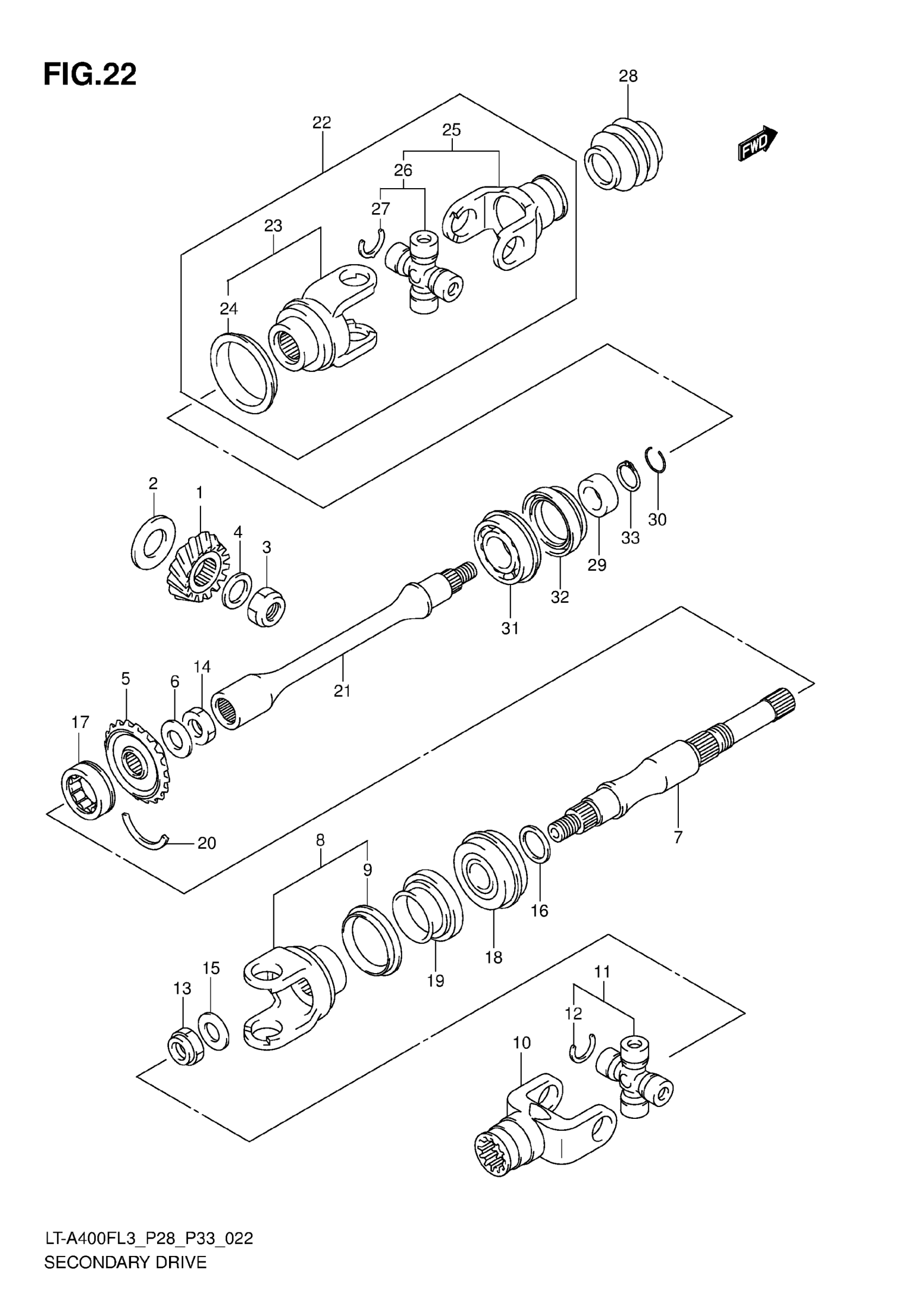

Find the part on the Secondary Drive diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A400FL3 Secondary Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, SEC DRIVE BEVEL (NT:17)

24911-38F00

1
Out of stock

2

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55/0.58/0.60/ 0.63/0.65/0.68/0.70/0.73/0.75/ 0.78/0.80/0.83/0.85/0.88/0.90/ 0.93/0.95/0.98/1.00/1.03/1.05/ 1.08/1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30

24935-03811

1
Out of stock

3

NUT

09140-20012

1
Out of stock

4

SHIM (20X32X1)

09181-20223

1
Out of stock

5

GEAR, SEC DRIVEN BEVEL (NT:21)

24921-38F00

1
Out of stock

6

WASHER

08211-22365

1
Out of stock

7

SHAFT,SEC DRIVEN OUTPUT RR

24971-27H00

1
Out of stock

8

YOKE, REAR DRIVE OUTPUT

27130-03G00

1
Out of stock

9

PLATE, OUTPUT

27592-38F00

1
Out of stock

10

YOKE, PROP SHAFT JOINT This part replaces 27140-27H00.

27140-27H01

1
Out of stock

11

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

1
Out of stock

12

CIRCLIP

09380-20016

4
Out of stock

13

NUT

09159-16003

1
Out of stock

14

NUT

09159-22005

1
Out of stock

15

WASHER (16X30X3)

09160-16026

1
Out of stock

16

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63/0.65/0.68 /0.70/0.73/0.75/0.78/0.80/0.83 /0.85/0.88/0.90/0.93/0.95/0.98 /1.00/1.03/1.05/1.08/1.10/1.13 /1.15/1.18/1.20/1.23/1.25/1.28 /1.30/1.33/1.35/1.38/1.40

24945-03811

1
Out of stock

17

BEARING (30X50X17)

09263-30050

1
Out of stock

18

BEARING (25X52X20.6)

09267-25014

1
Out of stock

19

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

20

C RING

09390-50002

1
Out of stock

21

SHAFT, SEC DRIVEN OUTPUT FR

24961-27H50

1
Out of stock

22

YOKE ASSY,UNIVERSAL JOINT This part replaces 27100-27H00.

27100-27H02

1
Out of stock

23

YOKE, FRONT DRIVE OUTPUT This part replaces 27130-27H00.

27130-27H01

1
Out of stock

24

PLATE, OUTPUT YOKE

27592-38F00

1
Out of stock

25

YOKE, PROP SHAFT JOINT This part replaces 27140-27H00.

27140-27H01

1
Out of stock

26

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

1
Out of stock

27

CIRCLIP

09380-20016

4
Out of stock

28

BOOT,PROPELLER SHAFT This part replaces 27153-27H10.

27153-27H11

1
Out of stock

29

COLLAR,FRONT DRIVE OUTPUT

27591-27H00

1
Out of stock

30

CIRCLIP

09381-19005

1
Out of stock

31

BEARING (25X52X15)

09262-25131

1
Out of stock

32

OIL SEAL (34X52X9)

09283-34008

1
Out of stock

33

CIRCLIP

08331-31229

1
Out of stock
