2013 Suzuki LT-A400FL3 Gear Shifting Diagram

← All diagrams

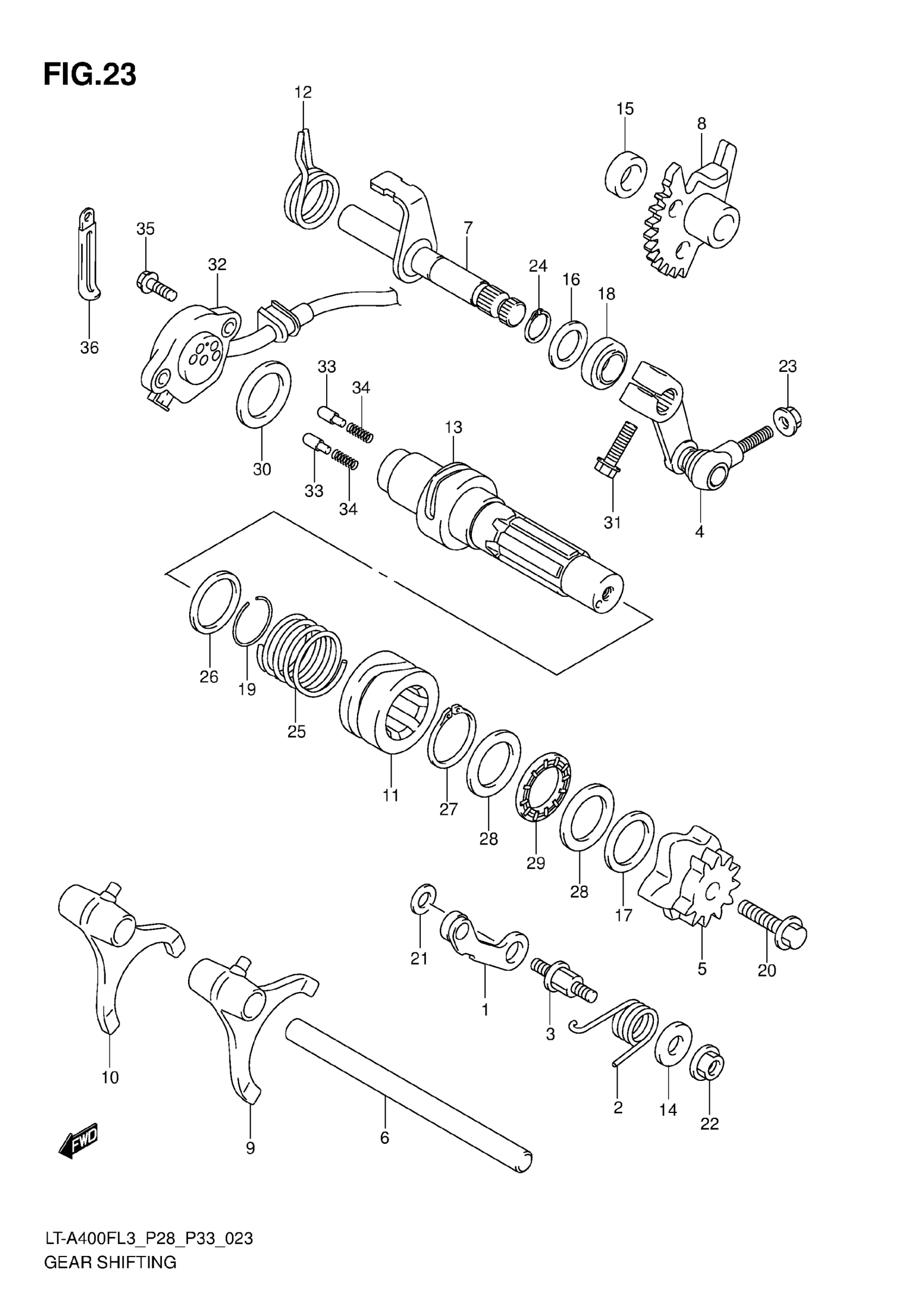

Find the part on the Gear Shifting diagram for your 2013 Suzuki LT-A400FL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A400FL3 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STOPPER, SHIFT CAM

25350-26D01

1
Out of stock

2

SPRING, GEAR SHIFT CAM STOPPER

25355-38F00

1
Out of stock

3

SUPPORT, CAM STOPPER

25356-12C00

1
Out of stock

4

ARM, SELEDT

25360-11H10

1
Out of stock

5

PLATE, GEAR SHIFT CAM STOPPER (NT:12)

25381-38F10

1
Out of stock

6

SHAFT, SUB T/M GEAR SHIFT FORK

25411-18900

1
Out of stock

7

SHAFT,T/M GEAR SHIFT This part replaces 25510-27H00.

25510-27H01

1
Out of stock

8

GEAR, SUB T/M SHAFT (NT:28)

25540-27H00

1
Out of stock

9

FORK, SUB T/M GEAR SHIFT

29511-44D00

1
Out of stock

10

FORK, GEAR SHIFT REVERSE

29511-44D00

1
Out of stock

11

CAM, SUB T/M GEAR SHIFT

29611-27H00

1
Out of stock

12

SPRING, SHIFT ARM RETURN

29613-31G00

1
Out of stock

13

SHAFT,SUB T/M GEAR SHIFT

29620-27H01

1
Out of stock

14

WASHER (6.5X16X2.3)

09160-06022

1
Out of stock

15

SPACER (12X22X8.0)

09180-12100

1
Out of stock

16

SHIM (12X20X1)

09181-12167

1
Out of stock

17

SHIM (20X28X0.5)

09181-20158

1
Out of stock

18

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

19

CIRCLIP

09380-25012

1
Out of stock

20

BOLT

01550-0625B

1
Out of stock

21

WASHER

08211-06141

1
Out of stock

22

NUT

08316-1006B

1
Out of stock

23

NUT

08310-0006A

1
Out of stock

24

CIRCLIP

08331-3112A

1
Out of stock

25

SPRING, SUB T/M SHIFT CAM

29612-38F00

1
Out of stock

26

SHIM (25X32X1)

09181-25139

1
Out of stock

27

CIRCLIP

08331-31259

1
Out of stock

28

SHIM (20X34X1)

09181-20251

2
Out of stock

29

BEARING (20X35X2)

09263-20014

1
Out of stock

30

SHIM (25X34X1)

09181-25167

1
Out of stock

31

BOLT

01550-0620B

1
Out of stock

32

BASE ASSY,GEAR SHIFT TERM

37720-27H00

1
Out of stock

33

PIN (5X15.5)

09209-05011

2
Out of stock

34

SPRING

09440-04010

2
Out of stock

35

BOLT

07120-0516A

2
Out of stock

36

CLAMP (L:45)

09404-06429

1
Out of stock
