2009 Suzuki LT-A400F Rear Swingingarm Diagram

← All diagrams

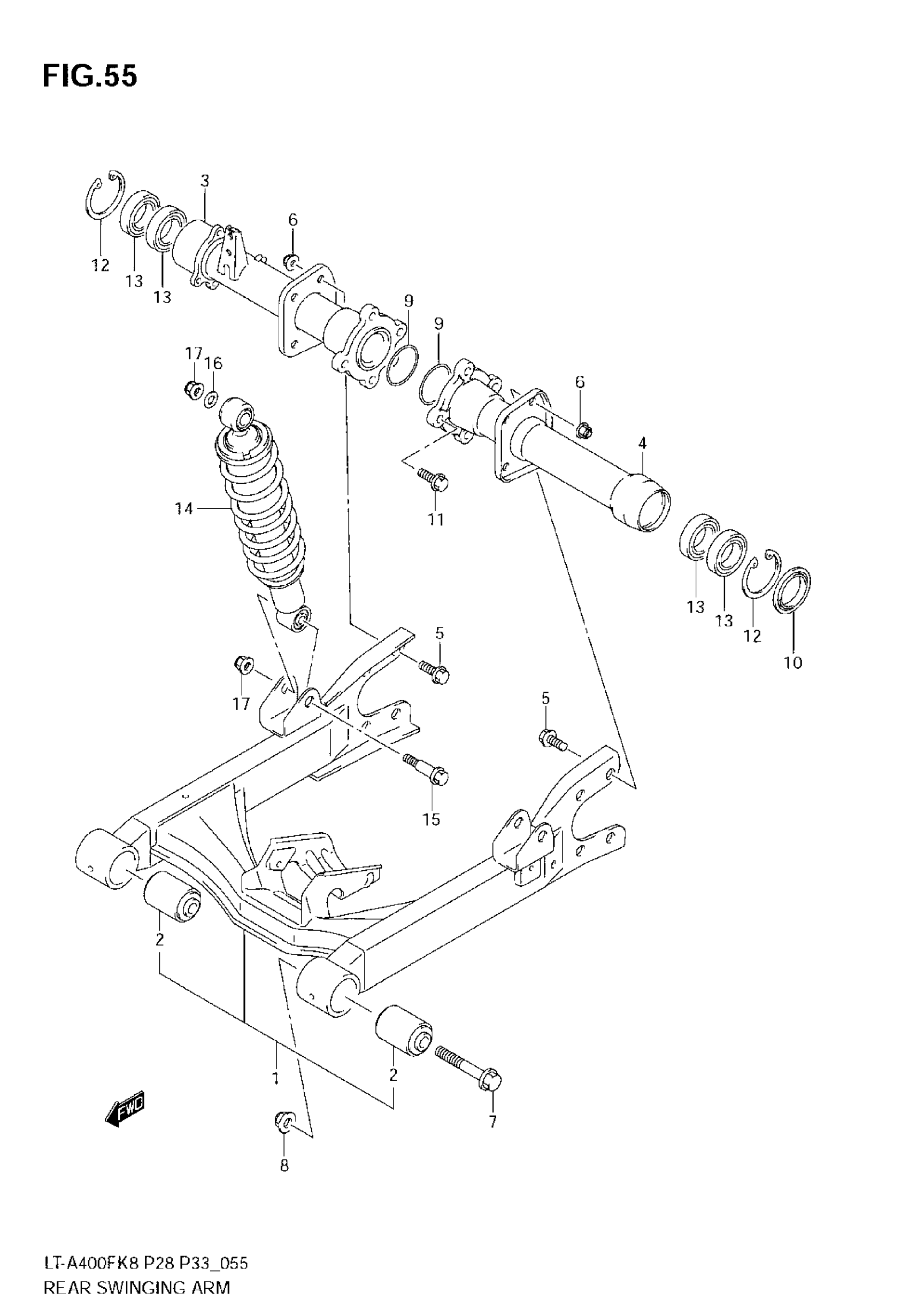

Find the part on the Rear Swingingarm diagram for your 2009 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A400F Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$318.07

In stock

2

BUSH, PIVOT

61230-27H00

2

$70.97

In stock

3

1

$479.75

In stock

4

HOUSING,RR AXLE LH

61400-27H00

1

$260.03

In stock

5

8

$4.13

In stock

6

NUT, REAR SWGARM BRACKET

09159-10115

8
Out of stock

7

BOLT, PIVOT

09103-12068

2

$9.08

In stock

8

NUT, PIVOT

09159-12054

2

$9.50

In stock

9

2

$6.04

In stock

10

SEAL, REAR AXLE HOUSING

09283-38022

1
Out of stock

11

BOLT, AXLE HOUSING

09103-10421

4

$4.75

In stock

12

2

$3.63

In stock

13

BEARING, HUB

08123-60067

4

$28.22

In stock

14

2

$221.97

In stock

15

BOLT, LOWER

09103-10126

2
Out of stock

16

WASHER, UPPER, OUTER

09160-10501

2

$2.52

In stock

17

NUT

08319-3110B

4
Out of stock
