Description

Price

1

TIE-ROD,STEERING

51281-27H00

$53.58

2

KNUCKLE,STEERING,R This part replaces 51231-27H00.

51231-27H10

$130.09

3

KNUCKLE,STEERING,L This part replaces 51241-27H00.

51241-27H10

$182.57

4

END,KNUCKLE STEERING

51210-38F00

$61.91

5

ROD, END RH

51260-21G00

$62.58

6

ROD, END LH

51270-21G00

$88.25

7

NUT, TIE-ROD RH

51283-21G00

$4.70

8

NUT, ROD END

08314-4010B

$2.50

9

NUT, TIE ROD LH

09140-10027

$1.54

10

COTTER PIN, ROD END

04111-2020A

$1.22

11

BOLT, KNUCKLE (10X30)

51233-09F00

$5.14

12

DUST SEAL, INNER (38X55X8)

09283-38012

$13.30

13

DUST SEAL, OUTER (38X55X7.5)

09283-38022

$11.74

14

BEARING

08123-60067

$26.29

15

SPACER,HUB BEARING

54731-03G00

$10.66

16

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.59

17

WASHER, ROD END

09162-10010

$4.03

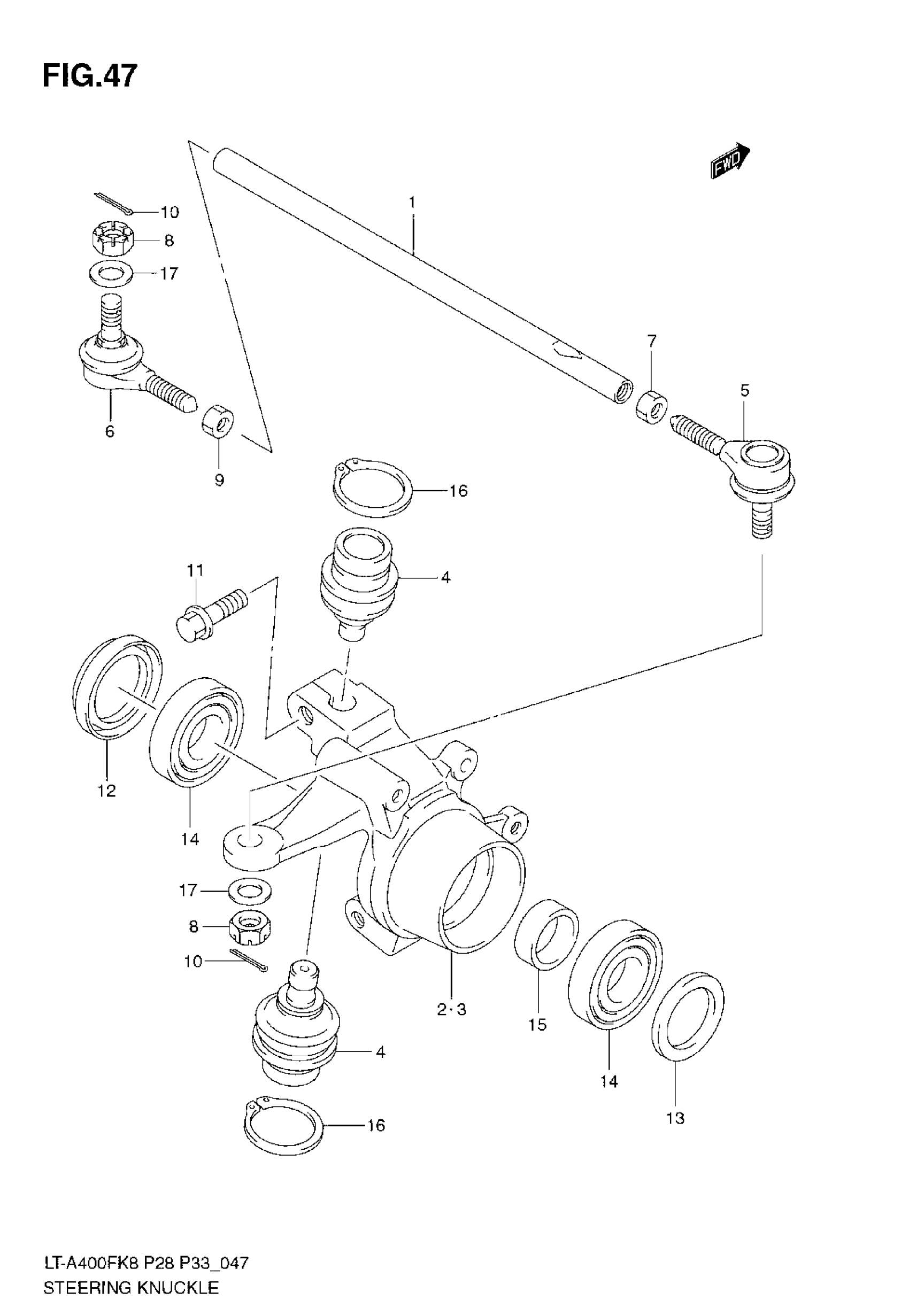

Suzuki LT-A400F (2009) STEERING KNUCKLE Diagram
