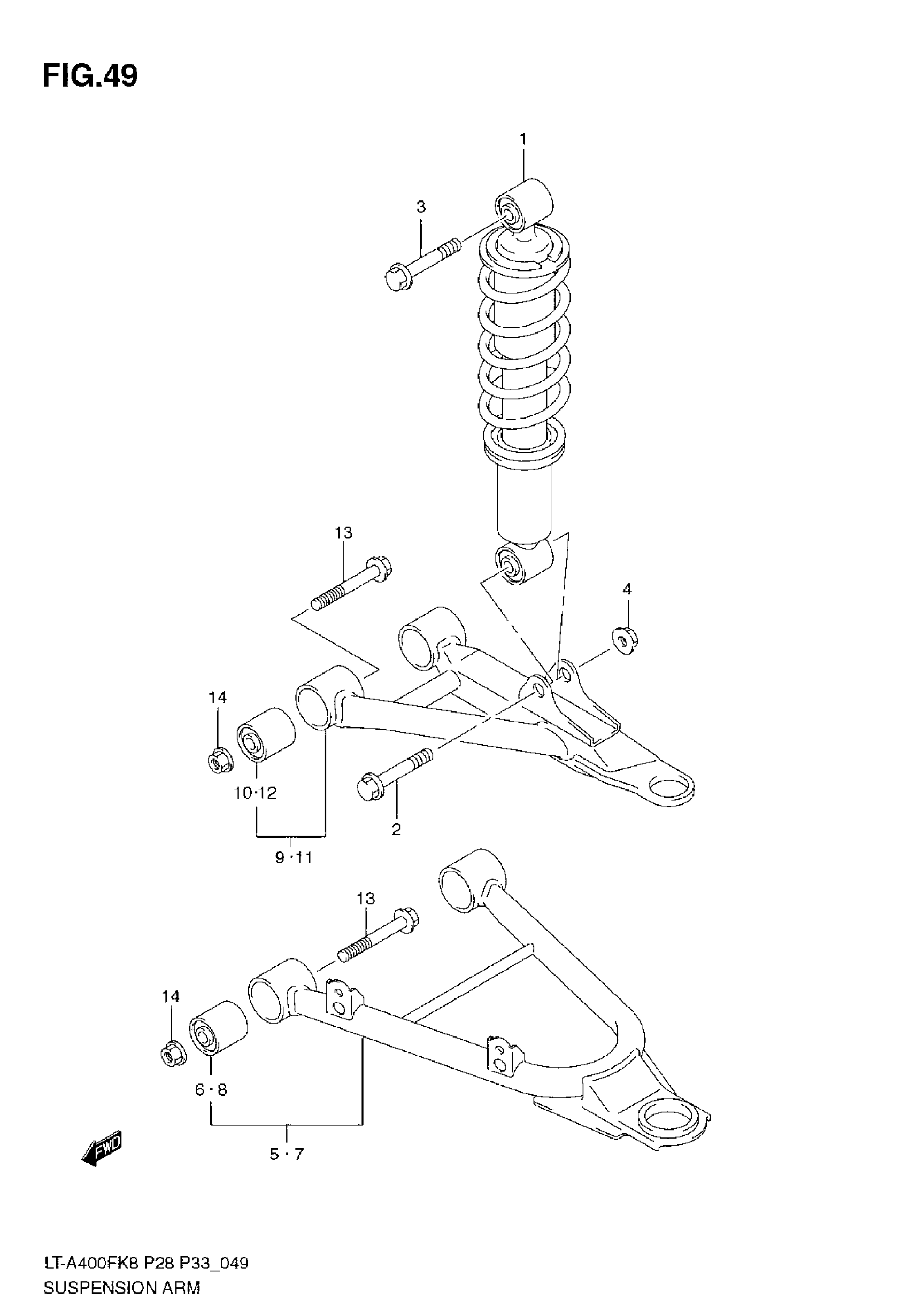

Suzuki LT-A400F (2009) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-27H10-019

$178.58

2

BOLT (10X48) | LOWER

09103-10126

$4.07

3

BOLT (10X48) | UPPER

09103-10352

$6.38

4

NUT

08319-3110A

$2.73

5

ARM SET,SUSPENSION LOWER RH | Includes Item(s) 6

52410-27820

$351.77

6

BUSH (10X35.1X38)

09319-10055

$19.25

7

ARM SET,SUSPENSION LOWER LH | Includes Item(s) 8

52420-27820

$246.01

8

BUSH (10X35.1X38)

09319-10055

$19.25

9

ARM SET,SUSPENSION UPPER RH | Includes Item(s) 10

52430-27810

$332.32

10

BUSH (10X35.1X38)

09319-10055

$19.25

11

ARM SET,SUSPENSION UPPER LH | Includes Item(s) 12

52440-27810

$332.32

12

BUSH (10X35.1X38)

09319-10055

$19.25

13

BOLT (10X60)

09103-10301

$6.52

14

NUT

09159-10115

$3.21
