2009 Suzuki LT-A400F Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2009 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

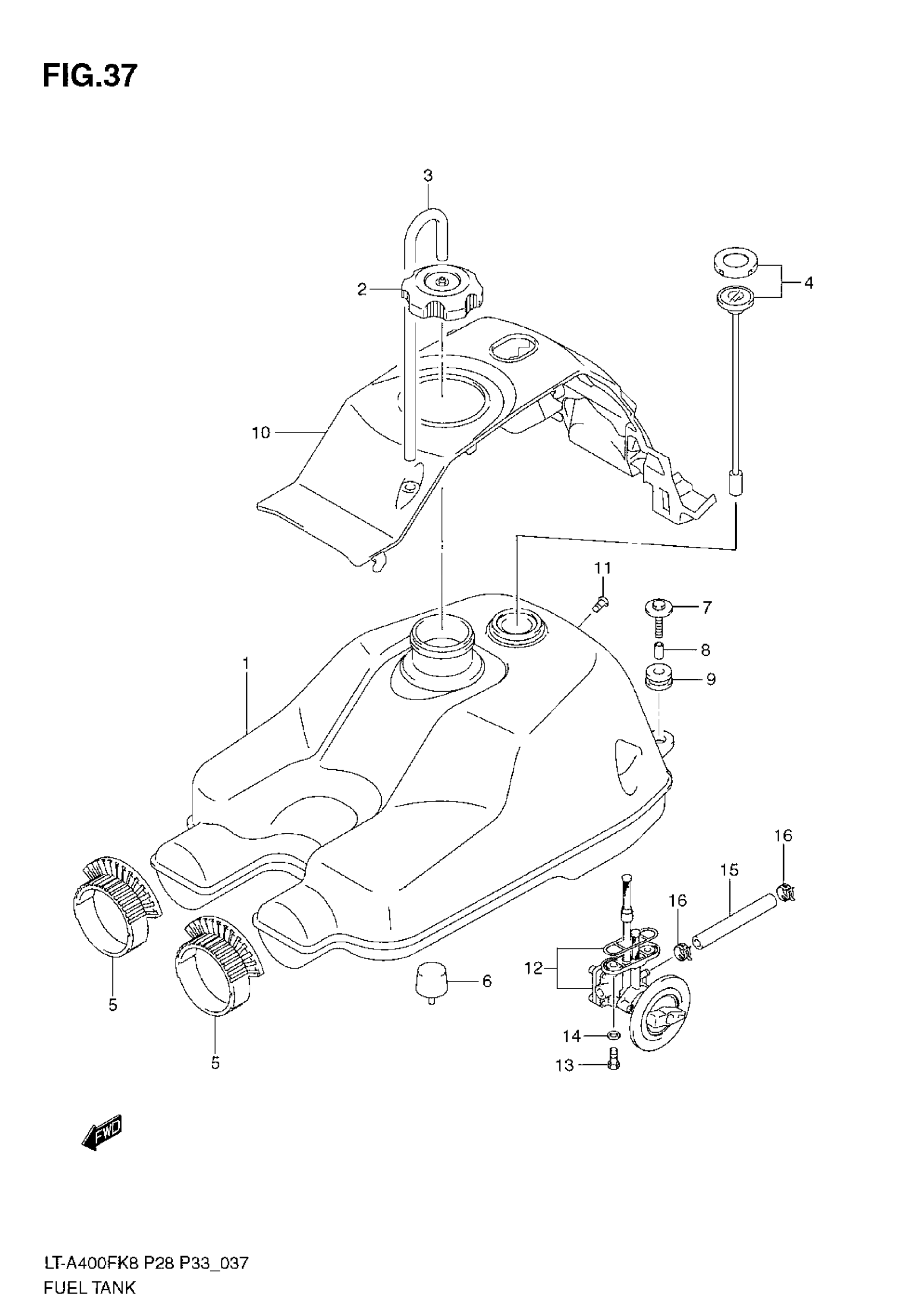

2009 Suzuki LT-A400F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44100-27H00

1
Out of stock

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

1
Out of stock

3

HOSE,5X10X600 This part replaces 09352-50823-290.

44421-13ER0

1
Out of stock

4

GAUGE ASSY,FUEL This part replaces 44580-27H00.

44580-27H01

1
Out of stock

5

CUSHION,FUEL TANK FR This part replaces 44511-38F00.

44511-38F01

2
Out of stock

6

CUSHION,FUEL TANK LWR This part replaces 44543-38F00.

44543-38F01

2
Out of stock

7

BOLT

09116-06050

2
Out of stock

8

SPACER

09180-06293

2
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

2
Out of stock

10

COVER, FUEL TANK (BLACK)

44271-27H00-291

1
Out of stock

11

BOLT

09139-05073

1
Out of stock

12

COCK ASSY,FUEL This part replaces 44300-27H00.

44300-27H01

1
Out of stock

13

SCREW

09103-06277

2
Out of stock

14

GASKET

09168-06026

2
Out of stock

15

HOSE, FUEL

44421-27H00

1
Out of stock

16

CLIP

09407-11407

—
Out of stock
