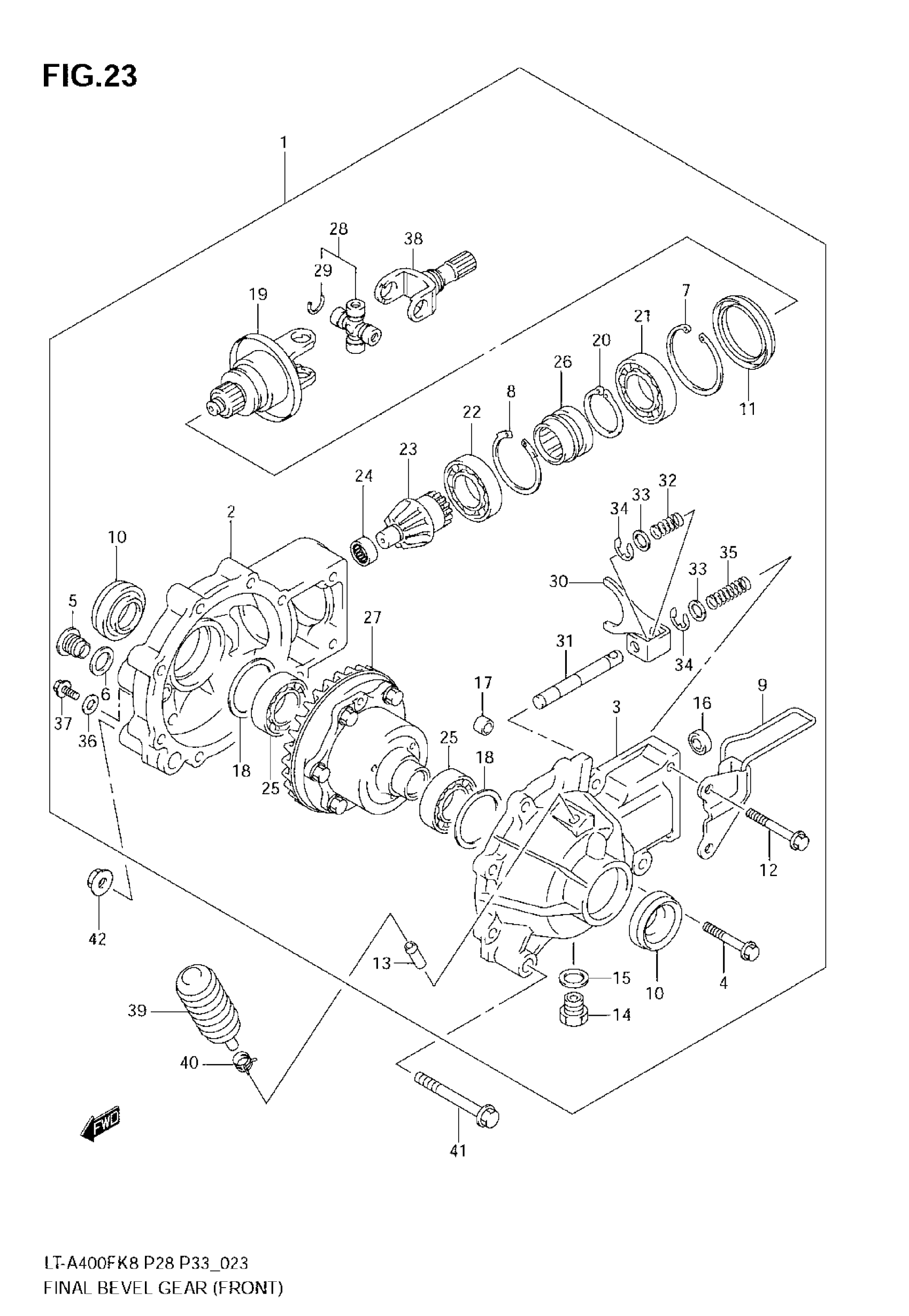

Find the part on the Final Bevel Gear diagram for your 2009 Suzuki LT-A400F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-A400F Final Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY,FR DIFFERENTIAL | Includes Item(s) 2 - 38 This part replaces 27400-38F50.

27400-38F51

1
Out of stock

2

HOUSING, FINAL DRIVE FR

27451-38FB1

1
Out of stock

3

COVER, FINAL DRIVE FR

27461-38FA1

1
Out of stock

4

BOLT (8X25)

27401-38FA1

8
Out of stock

5

PLUG

27409-38FA0

1
Out of stock

6

.WASHER This part replaces 27407-38FA0.

27407-31GA0

1
Out of stock

7

SNAP RING

27403-38FA0

1
Out of stock

8

SNAP RING

27403-38FB0

1
Out of stock

9

BRACKET ASSY, SHIFT

27951-38FA0

1
Out of stock

10

OIL SEAL

27406-38FD0

2
Out of stock

11

OIL SEAL

27406-38FB0

1
Out of stock

12

BOLT (8X50)

27401-38FB0

2
Out of stock

13

PIPE, BREATHER

09364-08003

1
Out of stock

14

PLUG

27409-38FB0

1
Out of stock

15

WASHER

27407-38FB0

1
Out of stock

16

OIL SEAL

27406-38FC0

1
Out of stock

17

COLLAR

27404-31GA0

1
Out of stock

18

SHIM SET | T:0.70/0.75/0.80/0.85 0.90/0.95/1.00/1.05 1.10/1.15/1.20/1.25 1.30/1.35/1.40/1.45

27445-38FA0

2
Out of stock

19

YOKE ASSY

27130-03GA0

1
Out of stock

20

SNAP RING

27403-38FC0

1
Out of stock

21

BEARING

27405-38FA0

1
Out of stock

22

BEARING

27405-38FB0

1
Out of stock

23

1

$274.80

In stock

24

BEARING

27405-38FC0

1
Out of stock

25

BEARING

27405-38FD0

2
Out of stock

26

SLEEVE

27371-31GA0

1
Out of stock

27

GEAR ASSY

27320-27HA0

1
Out of stock

28

JOINT SET,UNIVERSAL This part replaces 27200-19810.

27200-19811

1
Out of stock

29

CIRCLIP

09380-20016

4
Out of stock

30

FORK, SHIFT

27941-38FA0

1
Out of stock

31

ROD, SHIFT

27921-38FA0

1
Out of stock

32

SPRING, SHIFT

27402-38FA0

1
Out of stock

33

WASHER

27407-38FC0

1
Out of stock

34

E RING

27403-38FD0

2
Out of stock

35

SPRING, RETURN

27402-38FB0

1
Out of stock

36

WASHER

27407-38FD0

1
Out of stock

37

PLUG

27409-38FC0

1
Out of stock

38

YOKE, SHAFT JOINT

27151-27HA0

1
Out of stock

39

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

1
Out of stock

40

CLIP

09401-08411

1
Out of stock

41

BOLT, FR DIFFERENTIAL

09103-10148

2
Out of stock

42

NUT, FR DIFFERENTIAL

08319-3110A

2
Out of stock
