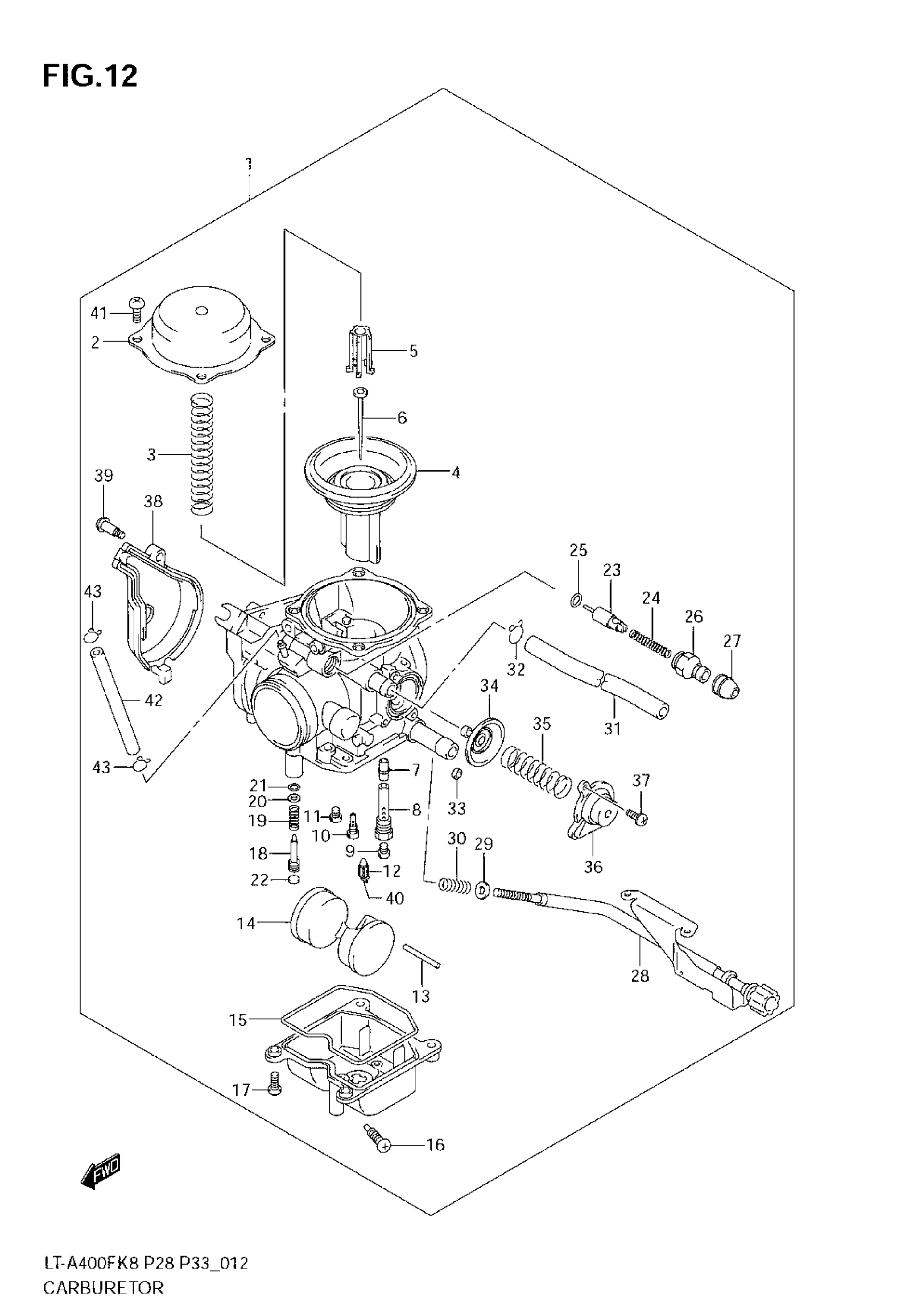

Suzuki LT-A400F (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | MODEL K8 E28

13200-27H10

Unavailable

1

CARBURETOR ASSY | MODEL K8 MODEL K9; Includes Item(s) 2 - 43 This part replaces 13200-27H00.

13200-27H0V

$836.05

2

DIAPHRAGM COVER

13502-38F00

Unavailable

3

SPRING

13503-38F00

$14.45

4

DIAPHRAGM

13501-27H00

$165.50

5

SEAT, SPRING

13382-26E00

$17.32

6

NEEDLE, JET (NLVM)

13383-27H00

$23.08

7

JET, NEEDLE

09494-00869

$30.61

8

HOLDER, NEEDLE JET

13342-38F00

$29.72

9

JET, MAIN (#125)

09491-25022

$20.02

10

JET, PILOT (#38)

09492-38005

$18.68

11

JET, MAIN (#55)

09491-55009

$18.75

12

VALVE ASSY, NEEDLE

13370-38F00

$16.35

13

FLOAT PIN

13254-26E00

$5.00

14

FLOAT ASSY

13250-26E00

$50.72

15

O RING

13258-26E00

$8.15

16

DRAIN SCREW

13247-43E00

$6.14

17

SCREW

13602-26E10

$4.34

18

SCREW, ADJUST

13279-03FA0

$12.85

19

SPRING

13268-26E00

$5.88

20

WASHER

13291-26E00

$2.80

21

O RING

13295-26E00

$3.97

22

CAP | MODEL K8 E33 MODEL K9

13281-26E00

$6.23

23

VALVE ASSY, STARTER

13410-27H00

$65.62

24

SPRING

13417-03G00

$5.61

25

O RING

13686-03G00

$3.97

26

HOLDER

13418-03G00

$4.98

27

CAP

13681-28E00

$7.38

28

SCREW, STOP

13270-27H00

$111.91

29

WASHER

13273-03G00

$4.05

30

SPRING

13268-35F00

$5.17

31

HOSE

13683-27H00

$42.05

32

CLIP

13693-24F00

$3.62

33

U RING This part replaces 13486-15F00.

13486-15F01

$2.55

34

DIAPHRAGM This part replaces 13480-38F00.

13480-38F01

$33.52

35

SPRING

13481-15F00

$4.83

36

COVER

13484-15F00

$36.42

37

SCREW

13601-15F10

$4.18

38

COVER

13578-03G00

$42.35

39

SCREW

13601-11F00

$2.80

40

CLIP

13375-26E00

$7.02

41

SCREW

13602-43E00

$2.88

42

HOSE

13698-27H00

Unavailable

43

CLIP

13671-26E00

Unavailable
