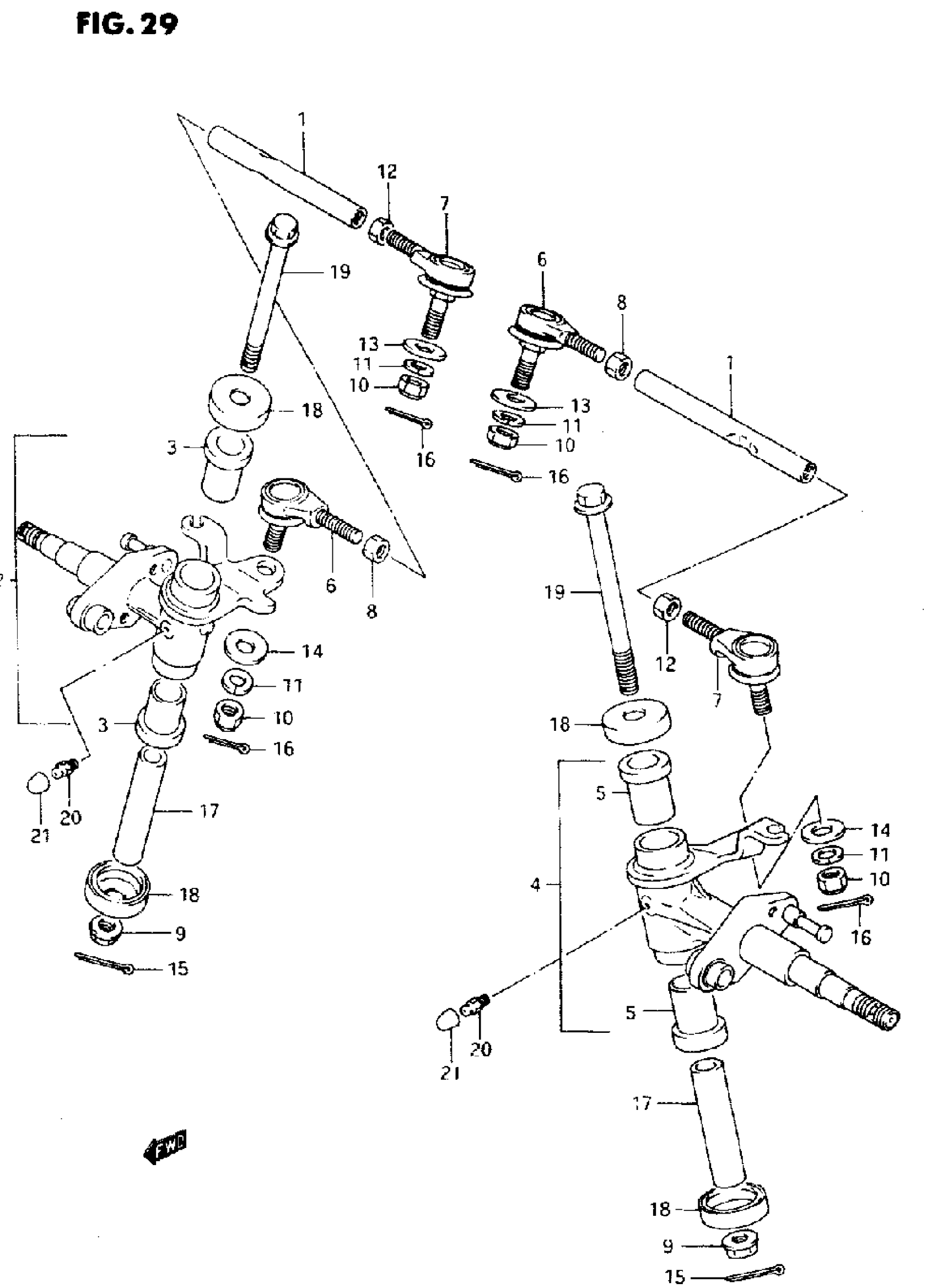

Suzuki LT-80 (1997) KNUCKLE ARM Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-40B00

Unavailable

2

ARM, KNUCKLE, RH

51230-40B00

Unavailable

3

BUSH

51236-40B00

$19.07

4

ARM, KNUCKLE LH

51240-40B00

Unavailable

5

BUSH

51236-40B00

$19.07

6

ROD, END RH This part replaces 51260-41B01.

51260-38F10

$81.22

7

ROD, END LH This part replaces 51270-41B01.

51270-38F10

$81.22

8

NUT, TIE ROD RH THREAD

09140-10043

$2.68

9

NUT

08319-31107

$2.73

10

NUT

09159-10027

$3.10

11

LOCK WASHER

09162-10008

$3.04

12

NUT, TIE ROD LH THREAD

09140-10027

$1.49

13

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

14

WASHER This part replaces 09160-10031.

09160-10126

$2.12

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

17

SPACER,KING PIN

51251-40B00

$22.22

18

DUST SEAL

51255-18900

$4.48

19

BOLT This part replaces 51256-40B00.

09101-10044

$11.47

20

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

21

CAP, GREASE NIPPLE

61442-33310

$3.37
