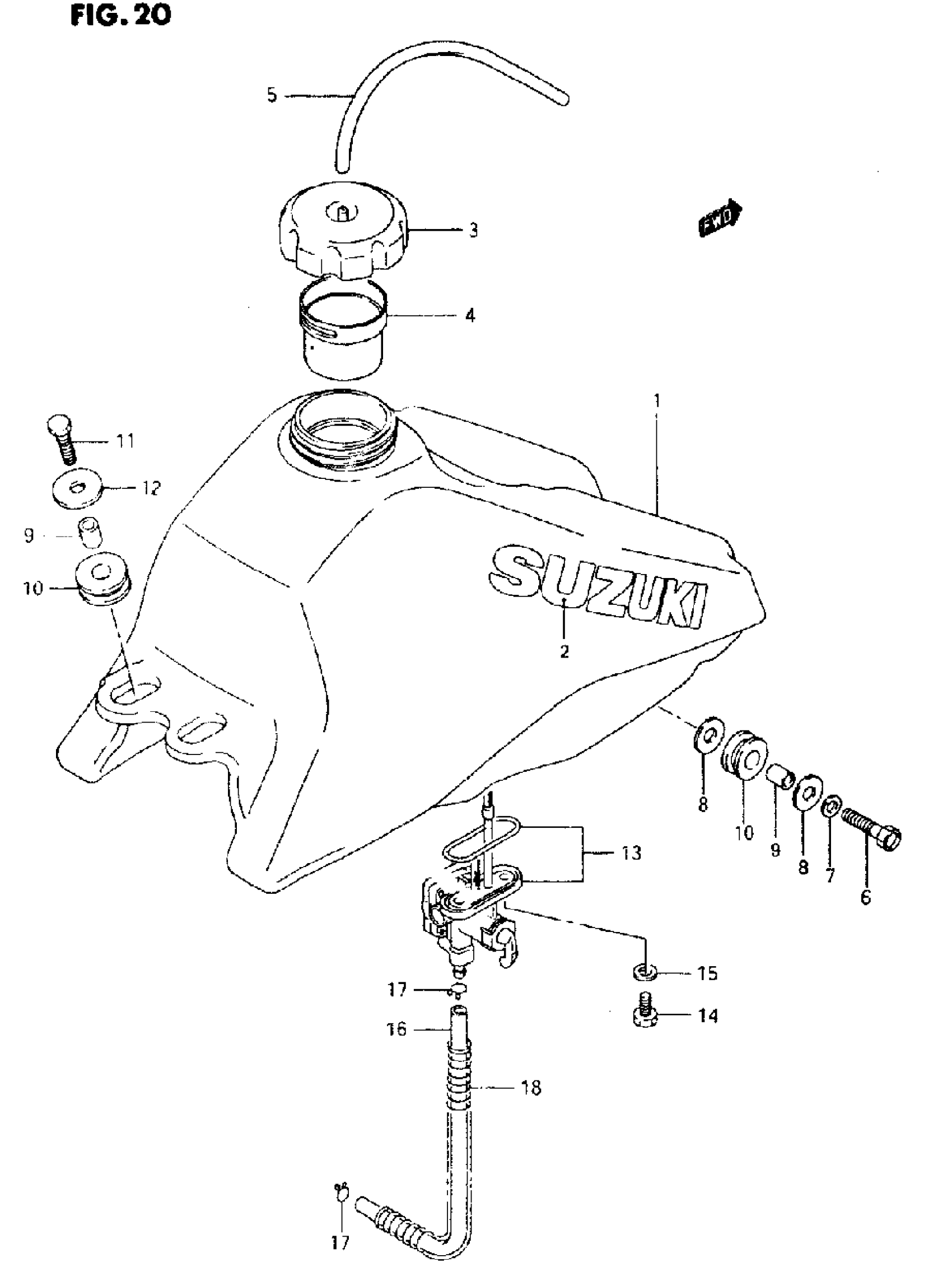

Suzuki LT-80 (1997) FUEL TANK Diagram

#

Description
Price

1

IAW, FUEL (PURPLE)

44110-40B00-Z16

Unavailable

2

EMBLEM (WHITE)

68111-40B10-064

Unavailable

3

CAP ASSY, FUEL TANK

44200-19A01

$48.20

4

TUBE, FILLER INLET

44199-19A00

$6.28

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

BOLT, FRONT

01550-08357

$3.49

7

.LOCK WASHER

08321-01087

$2.13

8

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

9

SPACER | MODEL T This part replaces 09180-08003.

09180-08191

$2.53

9

SPACER | MODEL V

09180-08191

$2.53

10

CUSHION

09320-12016

$2.11

11

BOLT, REAR

01500-06307

$2.48

12

WASHER This part replaces 09160-06030.

09160-06136

$1.84

13

COCK ASSY,FUEL This part replaces 44300-40B00.

44300-40B01

$90.58

14

SCREW, FUEL COCK

09128-06065

$2.15

15

GASKET

09168-06026

$3.10

16

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

17

CLIP

09401-08401

$1.54

18

SPRING

09440-10009

$5.47
