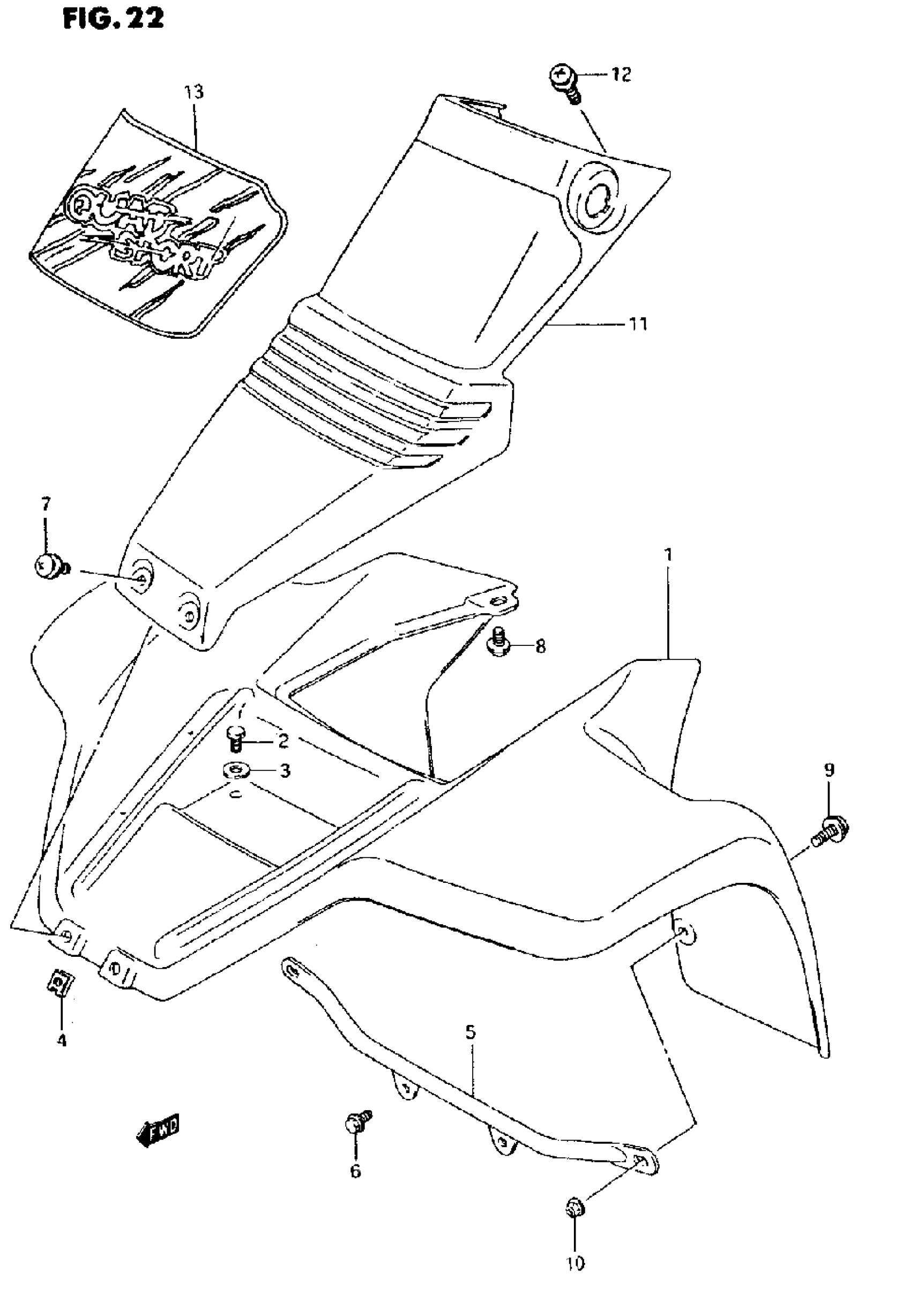

Suzuki LT-80 (1997) FRONT FENDER Diagram

#

Description
Price

1

FENDER FRONT This part replaces 53111-40B00-14L.

53111-40B01-14L

Unavailable

1

FENDER, FRONT (WHITE) | P28

53111-40B10-14L

Unavailable

2

PLUG, DRAIN | MODEL T This part replaces 01500-08163.

01500-0816B

$2.50

2

BOLT, FENDER FRONT | MODEL V

09116-08111

$3.78

3

WASHER (8.5X22X2) This part replaces 09160-08007.

09160-08127

$2.12

4

NUT, FENDER FRONT

53141-19A00

$4.34

5

BRACE, FRONT FENDER (BLACK)

53210-40B00-019

Unavailable

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

SCREW This part replaces 09136-06062.

09136-06017

$2.59

8

SCREW, FRONT FENDER REAR

09136-06004

$2.15

9

SCREW, FENDER & BRACE

09136-06022

$2.21

10

NUT This part replaces 08319-31063.

08319-3106A

$2.03

11

COVER, FENDER CENTER (PURPLE)

53118-40B00-Z16

Unavailable

12

SCREW, CENTER COVER

09136-06004

$2.15

13

TAPE, FRONT FENDER

68155-40B70-Z36

Unavailable
