Description

Price

1

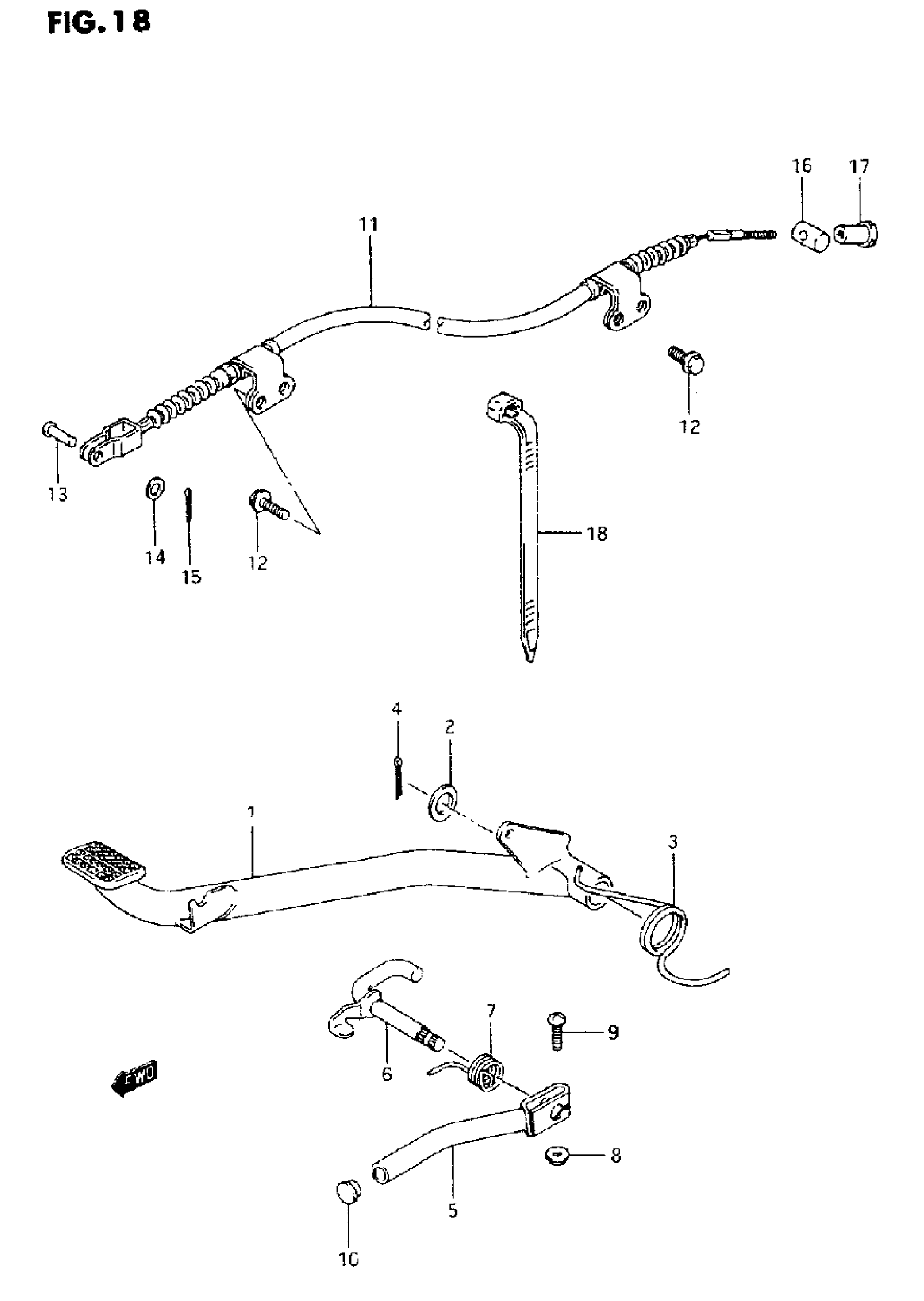

PEDAL, BRAKE

43110-40B00

Unavailable

2

WASHER

09160-15002

$1.91

3

SPRING, BRAKE PEDAL RETURN

43182-40B00

$6.52

4

PIN This part replaces 04111-30308.

04111-3030A

$1.49

5

HANDLE, BRAKE PEDAL

43160-40B00

Unavailable

6

STOPPER, BRAKE PEDAL

43150-40B00

$23.07

7

SPRING. BRAKE PEDAL STOPPER

43192-40B00

$3.89

8

NUT This part replaces 08316-20063.

08316-2006A

$2.63

9

SCREW, SEAT SUPPORT BRK This part replaces 02112-06303.

02112-0630A

$1.78

10

CAP

09250-08013

$2.68

11

CABLE, REAR BRAKE

58510-40B00

$69.05

12

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

13

PIN, FRONT

09200-06013

$2.00

14

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

PIN, REAR

09209-13006

$5.24

17

NUT

09150-06012

$3.37

18

CLAMP

09407-11401
