1997 Suzuki LT-4WDX Wiring Harness Diagram

← All diagrams

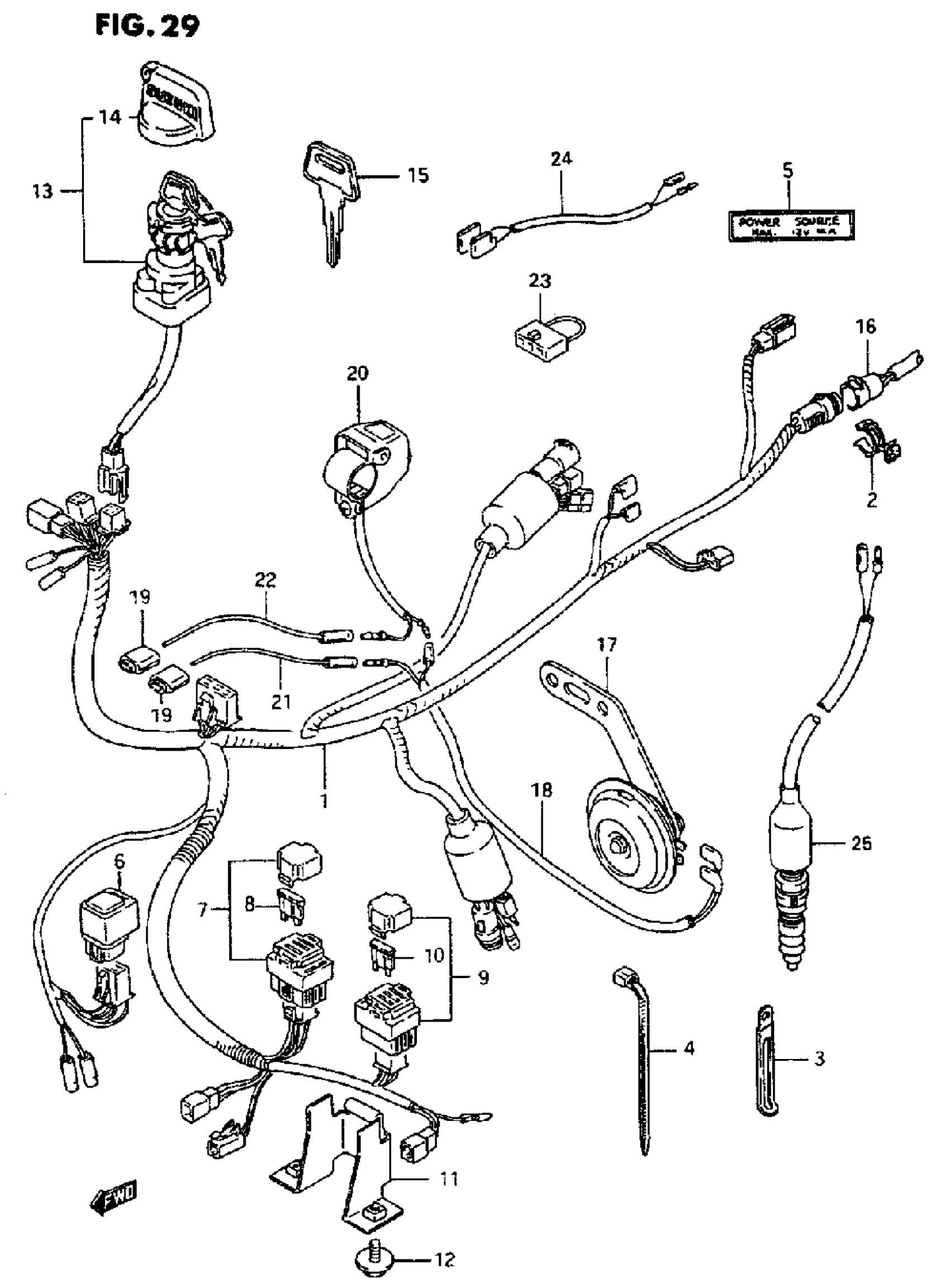

Find the part on the Wiring Harness diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki LT-4WDX Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-39DC0

1
Out of stock

2

CLAMP

09403-16307

2

$2.77

In stock

3

CLAMP This part replaces 09404-06432.

09404-06039

1
Out of stock

4

CLAMP (L:125)

09407-14403

5
Out of stock

4

CLAMP This part replaces 09407-18403.

09407-18402

11
Out of stock

5

LABEL, POWER SOURCE

38852-19B10

1
Out of stock

6

RELAY, NEUTRAL START

38730-19B00

1

$41.46

In stock

7

BOX ASSY, MAIN FUSE

36740-24B01

1

$31.82

In stock

8

FUSE (20A)

09481-20101

1

$2.31

In stock

9

1

$25.08

In stock

10

FUSE (15A)

09481-15101

2

$2.77

In stock

11

1

$14.00

In stock

12

2

$3.05

In stock

13

SWITCH ASSY,IGN This part replaces 37110-19B02.

37110-19B03

1
Out of stock

14

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

1
Out of stock

15

KEY,BLANK (TYPE:C) | OPT

37146-19B00

1
Out of stock

15

KEY,BLANK (TYPE:D) | OPT

37146-19B10

1
Out of stock

16

PLUG ASSY, POWER SOURCE | OPT

39602-18A00

1
Out of stock

17

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B02.

38500-09F01

1
Out of stock

18

LEAD WIRE, HORN | OPT

36852-19B00

1
Out of stock

19

2

$5.35

In stock

20

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

1
Out of stock

21

LEAD WIRE, HORN SWITCH | OPT

36851-19B00

1
Out of stock

22

LEAD WIRE, HORN SWITCH | OPT

36851-19B10

1
Out of stock

23

LEAD WIRE, DAY LIGHTING | OPT

36853-35B00

1
Out of stock

24

WIRE,BRAKE SW L | OPT This part replaces 36856-35B00.

36856-35B01

1
Out of stock

25

SWITCH ASSY,STO | OPT This part replaces 37740-25C00.

37740-25C01

1
Out of stock
← Tail Lamp Carrier →
