1997 Suzuki LT-4WDX Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1997 Suzuki LT-4WDX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

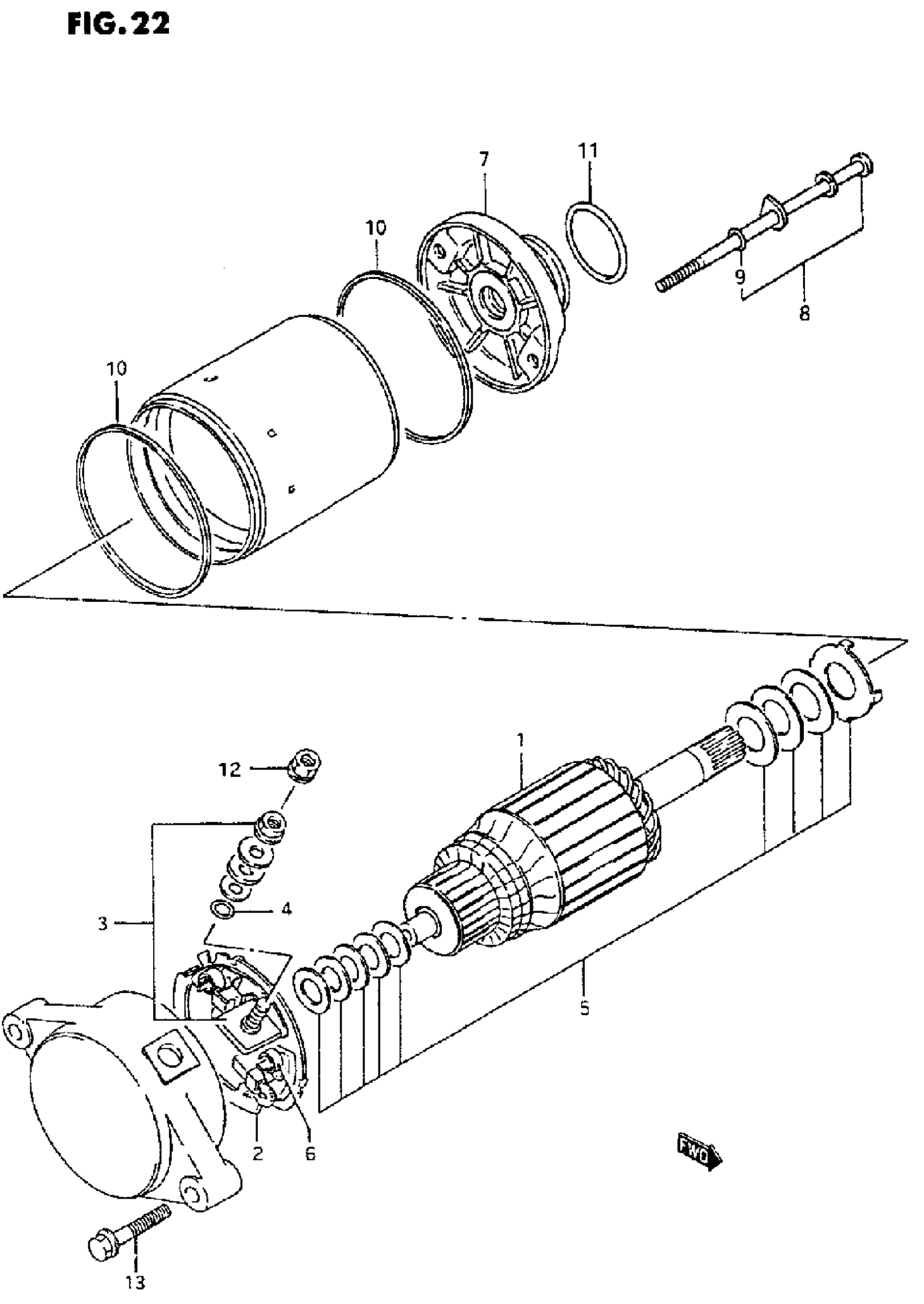

1997 Suzuki LT-4WDX Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$709.23

In stock

1

ARMATURE

31311-19B12

1
Out of stock

2

HOLDER SET, BRUSH (-)

31132-19B10

1

$33.58

In stock

3

1

$31.78

In stock

4

O RING

31143-49040

1
Out of stock

5

WASHER SET

31170-19B10

1
Out of stock

6

SPRING, BRUSH

31135-31300

2
Out of stock

7

-BRACKET ASSY, FRORIT

31150-19B10

1
Out of stock

8

BOLT SET

31280-19B10

2
Out of stock

9

O RING

31143-49040

2
Out of stock

10

2

$6.85

In stock

11

.O-RING (D:3,ID:24.5)

09280-24003

1
Out of stock

12

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock

13

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

2
Out of stock
